Gerneral Rain Dial-R Series Controller Information:
In addition to the numerous upgrades built into this popular, long-standing controller, the optional CLIMATE LOGIC Wireless Weather Sensing System makes the Rain Dial-R a “smart” controller on the cutting edge of water management.
When governed by Climate Logic, the Rain Dial-R will automatically water more on warm or hot days and less on cooler days. The Rain Dial-R and weather-based Climate Logic Wireless Weather System provides a simple and effective water management solution.
Specifiying Information:
| RD | XXX | XX | R |
| MODEL | NUMBER OF STATIONS | CONFIGURATION | |
| RD - RAIN DIAL | 600 - 6 Station 900 - 9 Station 1200 - 12 Station |
EXT - Outdoor INT - Indoor MOD - Module |
R - Rain sensor ready |
Example: A Rain Dial 6 station, outdoor model = RD600-EXT-R
NOTE: The new blue Rain Dial module will retrofit older Rain Dial cabinets, but not Rain Dial Plus cabinets
| RD600-INT | RD900-INT | RD900-INT | ||
| Reference Number | Description | Part Numbers | Part Numbers | Part Numbers |
| 1 | Terminal Board Assembly | R8987 | R8987 | R8987 |
| 2 | Hinge Post | |||
| 3 | Transformer Assembly, 120 VAC, 60 Hz | R201902 | R201902 | R201902 |

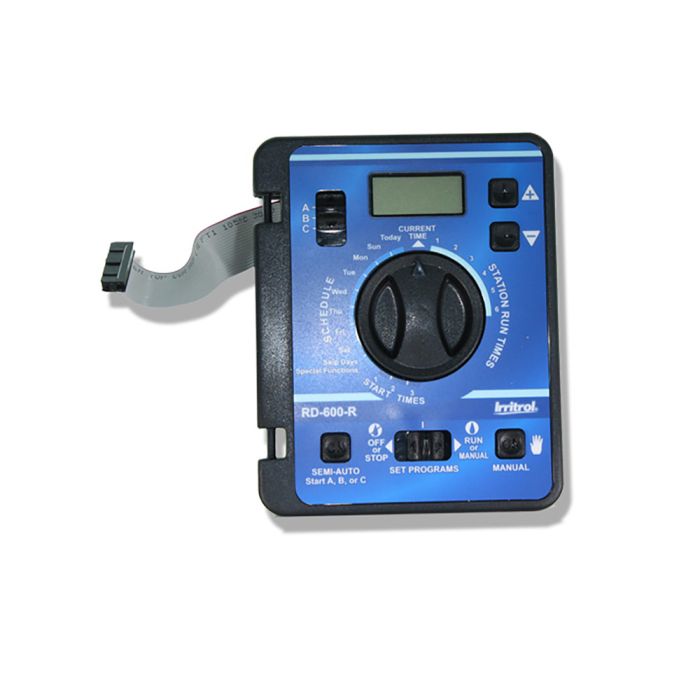

| 4 | Module Assembly | RD-6 MOD | RD-9 MOD | RD-12 MOD |
Articles
Videos
| Brand | Irritrol |
|---|---|
| Product Type | Controller Repair Parts |
| Warranty | 5 Years |
| Controller Compatibility | RainDial 600 Indoor & Outdoor |
| Station Expansion | 6 |
