Irritrol RainDial 1200 Indoor/Outdoor 12 Station Replacement Faceplate | RD-12MOD-R

In stock
Free Shipping on Orders over $149
Sales Price $256.95 Our Price $323.47 You save 21%

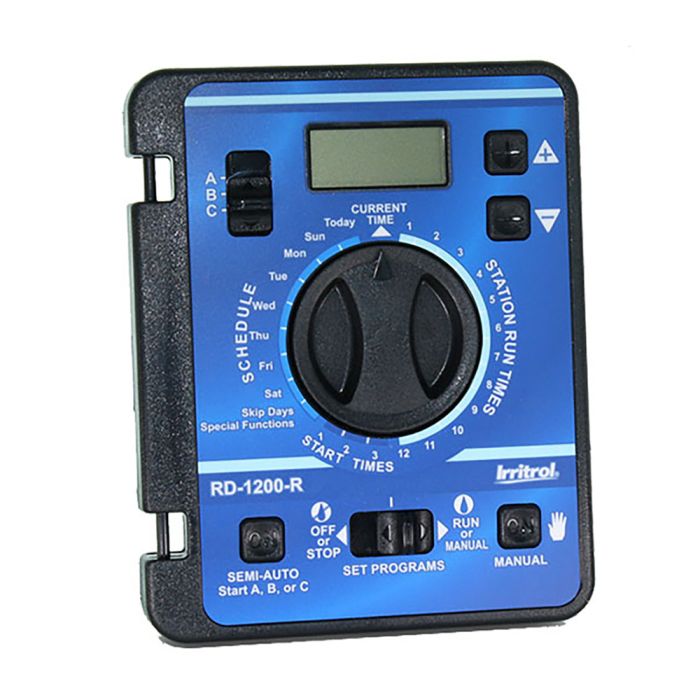

Irritrol RainDial 1200 Indoor/Outdoor 12 Station Replacement Faceplate

  • Station Expansion: 12
  • Type: Expansion Module
  • Controller Compatibility: RainDial 1200 Indoor & Outdoor

Features & Benefits

In addition to the numerous upgrades built into this popular, long-standing controller, the optional CLIMATE LOGIC� Wireless Weather Sensing System makes the Rain Dial-R a "smart" controller on the cutting edge of water management.

When governed by Climate Logic, the Rain Dial-R will automatically water more on warm or hot days and less on cooler days. Applying the right amount of water to maintain a healthy landscape, the Rain Dial-R and weather-based Climate Logic Weather System seriously reduce overwatering and its expense.

  • Climate Logic ready Automatically reschedules Rain Dial-R watering based on the weather
  • Remote CONTROL ready Compatible with CRR (Contractor Residential Remote) remote series
  • Rainsensor ½ ready Sensor bypass switch and terminal for sensor hookup
  • Three independent programs Programming flexibility to meet the needs of a wide variety of plant material on the landscape site
  • Three water day choices - Any day of the week, skip days or odd/even dates - Skip days and odd/even dates have day exclusion option
  • Water Budgeting For quick changes to the watering durations of all stations on a program at one time or pre-set a change in water budget for each month.
  • 365-day calendar for Odd/Even date watering Meets the odd/even date watering mandates often used for landscape water reductions
  • Water well recovery (delay between stations) Option of pump circuit ON or OFF during
  • Master Valve/Pump Start circuit Assignable per station Stations requiring a booster pump can be supplied while other stations can run on street water pressure
  • Test All Stations program Allows a quick test of all stations from lowest to highest number
  • Clear/erase memory by program Saves time by quickly erasing only the program desired
  • Program stack or overlap option Allows three programs/stations on at once or restricts operations to no overlapping station runs

Product Details

  • Station run times: 1-59 minutes in 1-minute increments or 1-5.9 hours in .1-hour (6 minute) increments
  • Start times: 3 per program per day for 9 starts total
  • Watering schedules per program
    • - Any day of the week
    • - Skip days from 1 to 31 days between irrigation days
    • - Odd or even date watering


  • Outdoor: H: 7, W: 10, D: 4
  • Indoor: H: 7, W: 7, D: 3
  • Listing for replacement panel only

**Listing for replacement panel only**

NOTE: The new blue Rain Dial module will retrofit older Rain Dial cabinets, but not Rain Dial Plus cabinets

    RD600-INT RD900-INT RD900-INT
Reference Number Description Part Numbers Part Numbers Part Numbers
1 Terminal Board Assembly R8987 R8987 R8987
2 Hinge Post
3 Transformer Assembly, 120 VAC, 60 Hz R201902 R201902 R201902
4 Module Assembly RD-6 MOD RD-9 MOD RD-12 MOD
RD - RAIN DIAL 600 - 6 Station
900 - 9 Station
1200 - 12 Station
EXT - Outdoor
INT - Indoor
MOD - Module
R - Rain sensor

Example: A Rain Dial 6 station, outdoor model = RD600-EXT-R

More Information
Brand Irritrol
Warranty 5 Years
Type Expansion Module
Controller Compatibility RainDial 1200 Indoor & Outdoor
Station Expansion 12
Parts (233.82 kB)
