NDS Standard Valve Box Extension (14 in. x 19 in. x 6 in.) | NDS-113-6

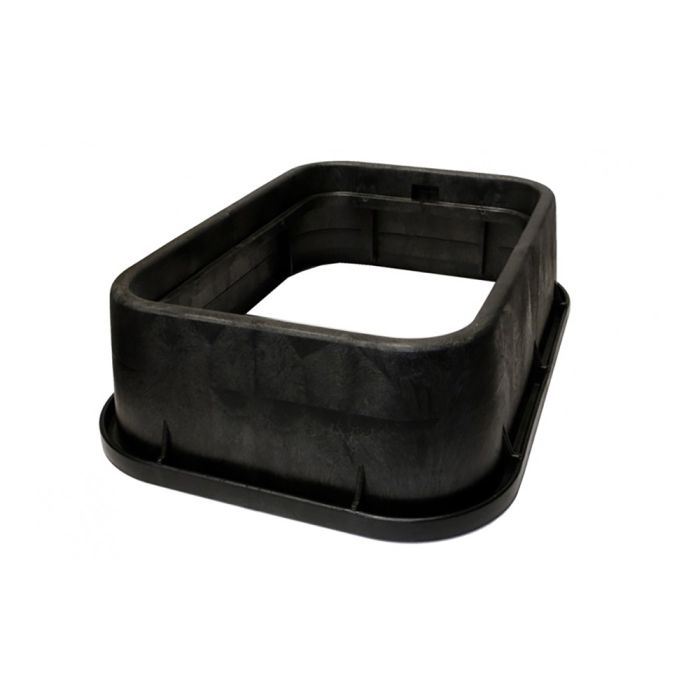

NDS-113-6 Standard Valve Box Extension

Add an extension if you need extra room. Extension is 6" tall. Valve BOX and Valve COVER are NOT included with the EXTENSION.

• Fits on top of the 14"X19" NDS-113BC Standard Rectangular Valve Box
• Injection molded of recycled polyolefin material with a melt index between 10-12.
• Coloring and UV stabilizers are added, along with processing lubricants when needed.
• The cover seat shall have 16 structural ribs on the underside of the seat, each with a minimum thickness of .250"

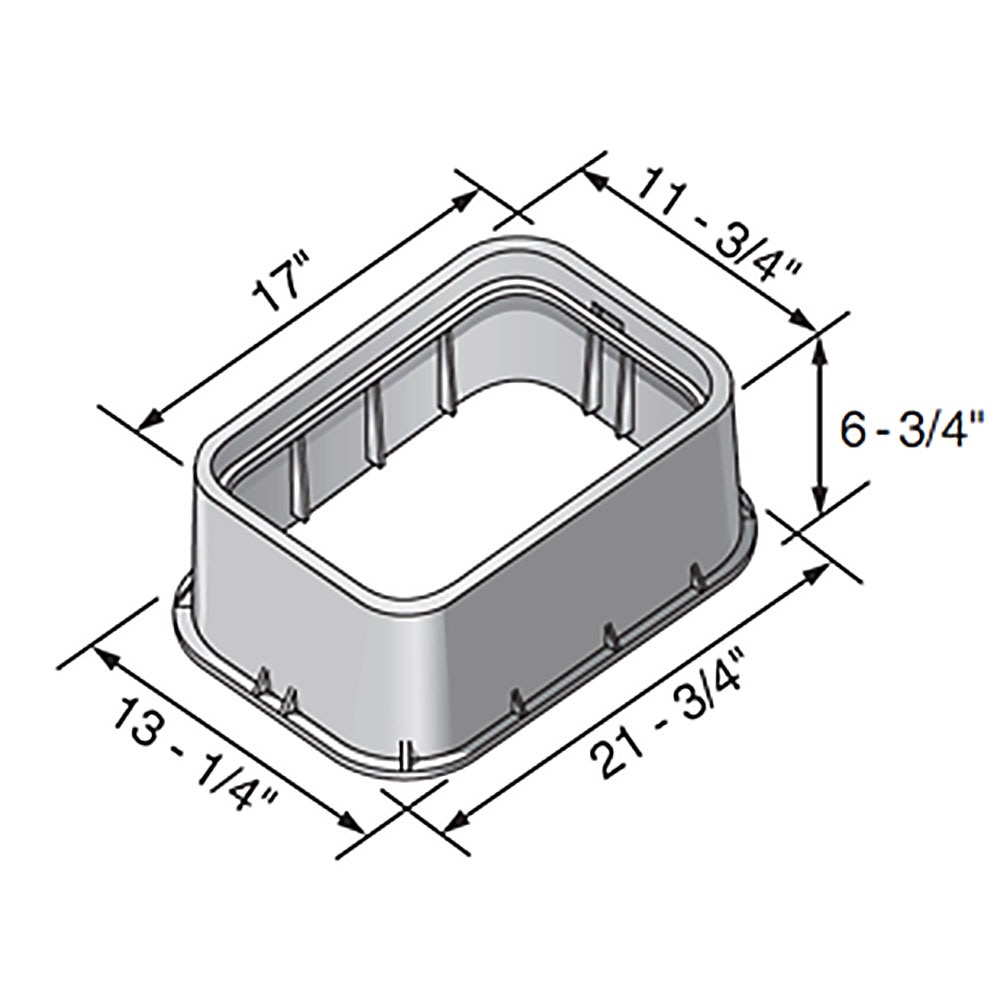

NDS-113-6 Standard Valve Box Extension

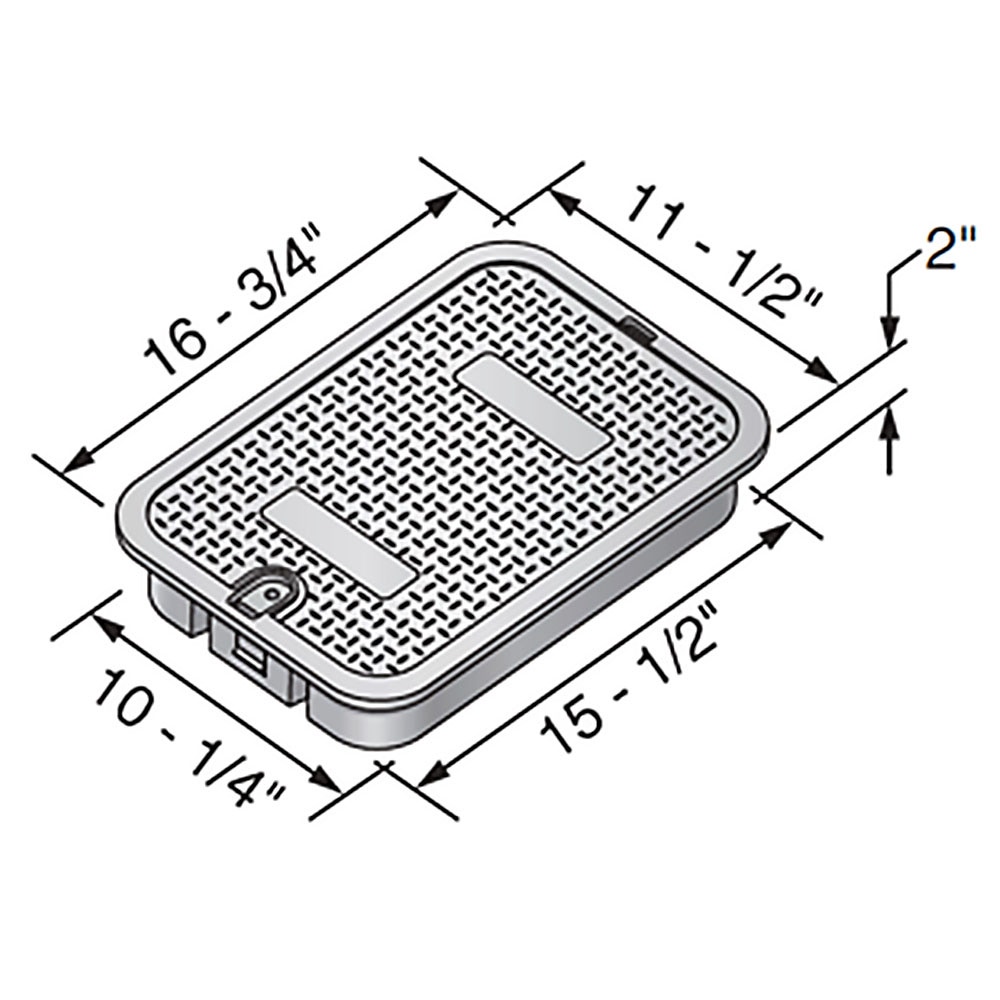

Above diagram is of the COVER ONLY (Not Included with Extension)

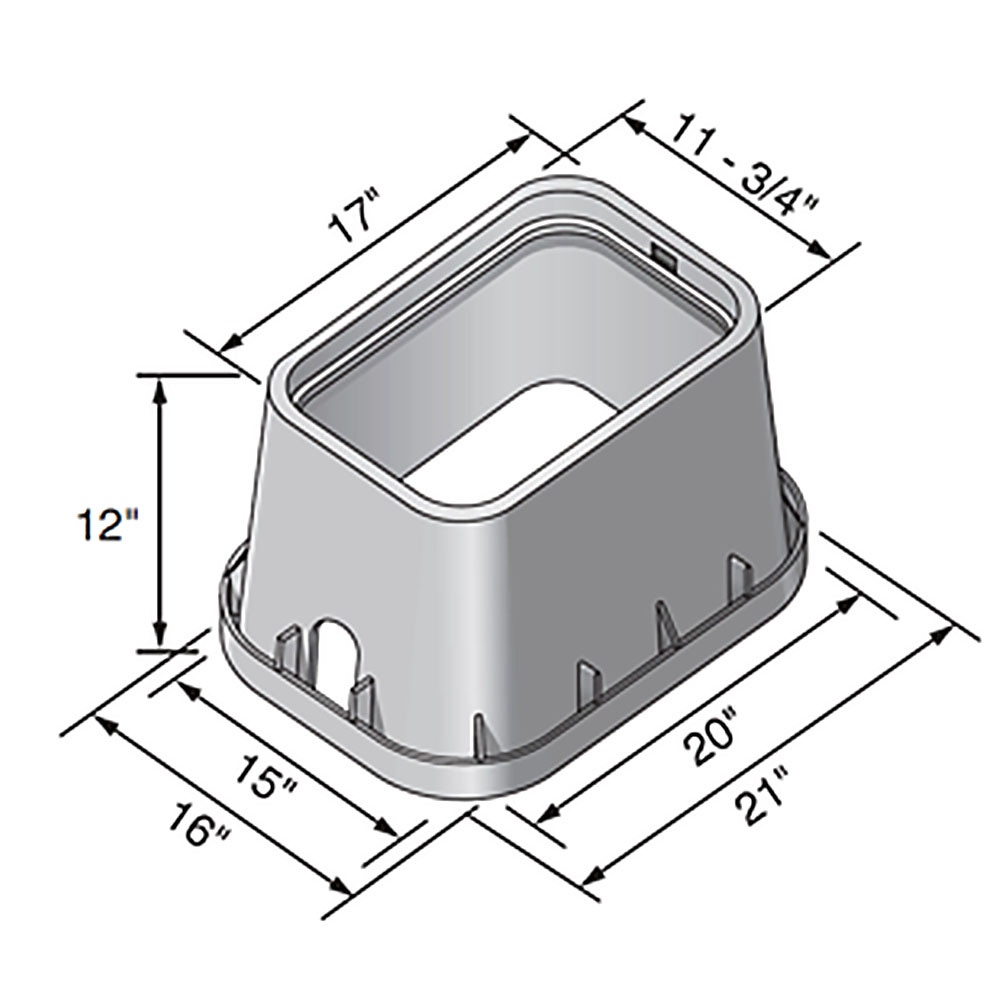

This diagram reflects the VALVE BOX (NDS-113BC) that the EXTENSION fits. Valve BOX is NOT included with the EXTENSION. Use these dimensions to determine if the EXTENSION will properly fit your current valve BOX.
