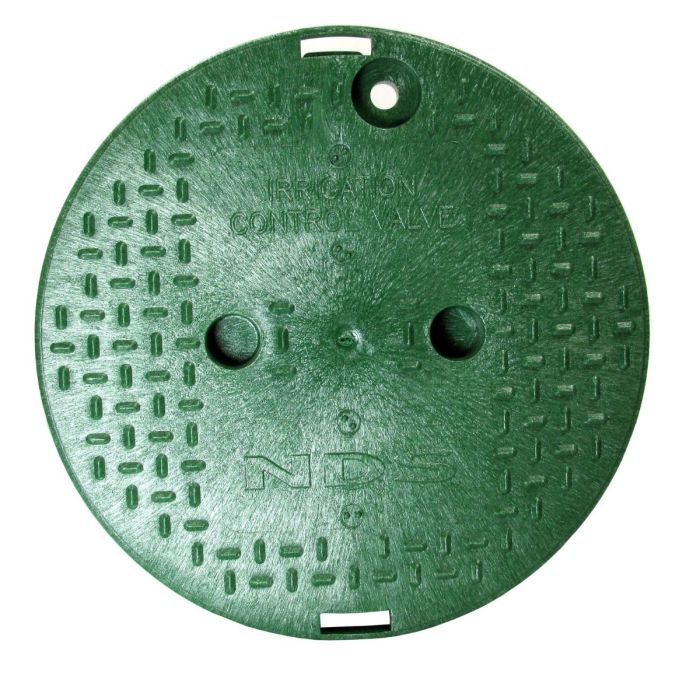

NDS STANDARD 10" ROUND OVERLAPPING COVER ONLY
- Cover Only
- Fits NDS Standard 10" Round Valve Box
- 9 1/2" X 9 1/2" X 1 3/8"
Features & Benefits
The #1 stocked valve box brand at U.S. distributors. Superior performance & durability. From installation to long-lasting quality – NDS manufacturers their valve boxes to exacting specifications.
Quality Valve Boxes with Exceptional Performance NDS® valve and meter boxes are proudly manufactured in Lindsay, CA, and span a wide variety of sizes, from 6" round to 17" x 30" rectangular. Available with black, green, purple, gray, and sand covers with designations including irrigation control valve, water, sewer, electric, reclaimed water, cable TV, telephone, and others, all NDS boxes and lids contain UV inhibitors for sustained durability and performance in direct sunlight
The NDS Standard Series 10" round body is tapered and has a minimum wall thickness of 0.200". The cover seat area has 6 structural support ribs on the underside of the seat, each with a minimum thickness of 0.250". The bottom of the body has a 0.500" flange. The 10" round cover has an average thickness of 0.250". The valve box has a 5/16" 304 Brass nut for the bolt-down as a standard feature.
Covers are identified with ICV (Irrigation Control Valve) designation, unless otherwise specified. Overlapping covers prevent dirt and grass from settling between body and cover. The bayonet twist-on cover ensures easy removal on 7-inch and 10-inch round covers. The 10-inch round and all rectangular boxes include a brass insert, so bolts may be easily added for lockdown. UV inhibitors prevent discoloration and deterioration, such as cracking or blistering. Standard cover color and designations: ICV – Green, Water – Black, Sewer – Green, CATV – Black, Reclaimed – Purple, Telephone – Black, Electric – Gray Residential Grade NDS Valve Boxes are designed to offer years of service under the most demanding outdoor conditions. Overlapping covers prevent dirt and grass from settling between body and cover, making it easier to remove over time.
- Product type: Cover
- Color: Green
- Length: 9-1/2 inches
- Width: 9-1/2 inches
- Height: 1-3/8 inches
- Weight: 0.750
- Material: HDPE
- Load rating: Pedestrian & lawn care equipment
