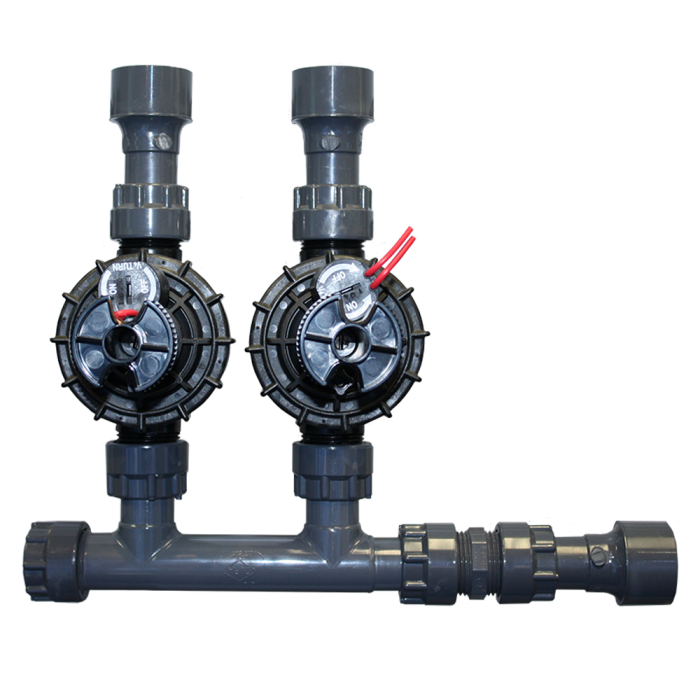

PGV-101JT-MM Standard Valve Manifold System 1 in. Slip | Dura-2PGV-SLIP

These Standard Manifold Systems with the reliable Hunter PGV series valves; are ready-to-install kits take the hassle out of specifying; configuring and installing quality valve systems.

• All Parts Are Schedule 40 PVC
• Rated 110 Max Working Pressure @ 73°F
• O-Ring Sealed for Tool-less Installation and Repair
• Models for both PVC and poly pipe systems; available in slip and barb configurations.
• Includes Hunter PGV-101JT-MM series valves with Flow Control
• Manifold and fittings are manufactured from durable schedule 40 construction with o-ring seals
• 2 valve and 3 valve configurations offered

• Gaps Between Tee: 2-1/4 in.
• Gaps Between Valves: 1-5/8 in.
• Overall Length: 8 in.
• Width: 10-5/8 in.
• Recommended Valve Box For This Valve Manifold

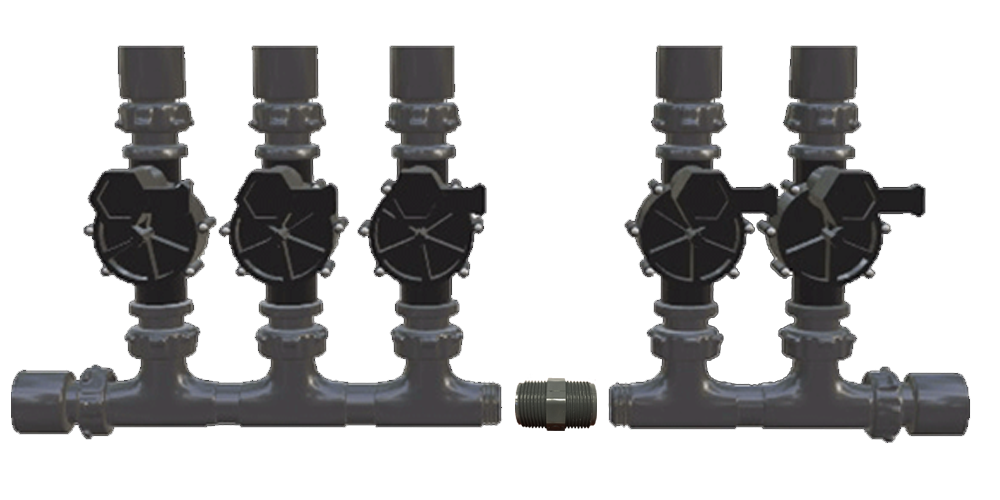

To create a larger manifold, add a (329-010) connector between two manifolds as demonstrated below.
