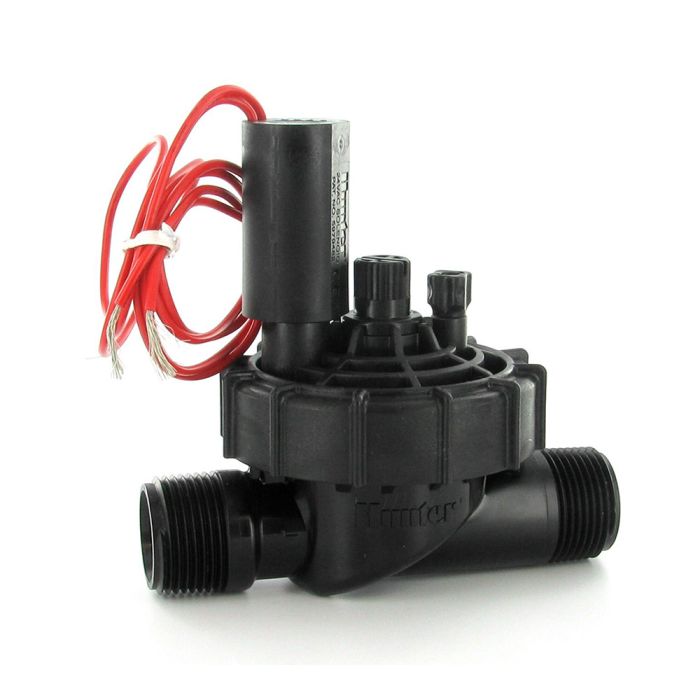

Hunter PGV Jar Top Valve with Flow Control 1 in. MPT | PGV-101JT-MM

• Size: 1 in.
• Connection: Male Pipe Thread
• Application: Residential

Features & Benefits

The Hunter PGV Jar-Top Residential Irrigation Valve offers convenience to the max, ease of service, and simplicity - An all-in-one package! This unique valve combines Hunter's innovative technology and versatility when it comes to installing and maintaining the unit. The Hunter PGV Jar-Top Valve can handle the most demanding of situations with its PVC construction and leak-proof diaphragm. Not to mention the many different installation and configuration styles the Hunter PGV Jar-Top Valve has to offer. The performance quality of the Hunter PGV residential valve is durable, reliable, and also versatile. It gets the job done!

• Jar-Top Bonnet Intuitive design makes it easy to access the valve; no tools are necessary
• Fully-encapsulated Hunter Solenoid Provides dependable operation and long life
• Internal manual bleed Easy to use and keeps valve box dry All Hunter irrigation valves feature internal manual bleed, ensuring a neat, dry valve box
• Flow control option Adjusts the flow of each zone on a system to deliver optimum nozzle performance
• Rigid diaphragm support Works to prevent stress failure in tough conditions
• Common Parts to Other Hunter Valves Diaphragm is interchangeable with PGV, SRV, and PGV-ASV series 1" valves; solenoid fits all Hunter plastic valves
• Wide Variety of Body Styles Easy installation for all types of connections

Product Details

• Flow: .2 to 40 GPM
• Pressure: 20 to 150 PSI (1.4 to 10.3 bars; 138 to 1034 kPa)
• Ambient temperature: up to 150F (66C)
• Heavy-duty solenoid: 24VAC, 370mA inrush current, 190mA holding current, 60 cycles; 475mA inrush current, 230mA holding current, 50 cycles

Dimensions

• 1" Globe: 5 1/2" H x 4 3/4" L x 3 1/4" W
• 1" Male x Male: 5 1/2" H x 5 1/4" L x 3 1/4" W
• 1" Male x Barb: 5 1/2" H x 5 7/8" L x 3 1/4" W
• 1" Male x 1 1/4" Barb: 5 1/2" H x 5 7/8" L x 3 1/4" W
