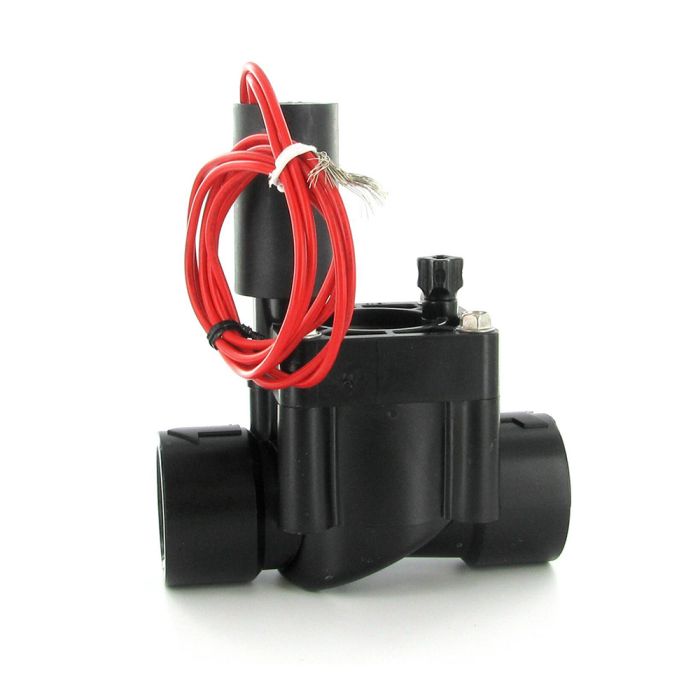

Hunter PGV Inline Valve 1 in. Slip | PGV-100GS

SKU
PGV-100GS
Sales Price $16.55 Our Price $30.48 You save 46%

Hunter PGV-100GS 1 in. Slip Valve without Flow Control

  • 1" Hunter PGV-100GS Valve
  • Without Flow Control
  • 1" Slip Inlet/ Outlet

Features & Benefits

The Hunter PGV Valve is a professional grade line of valves that are built to work with a broad range of landscaping demands.

This irrigation valve is considered a diligent, rugged and mighty addition to any sprinkler and irrigation system. The Hunter PGV-Series Valve offers features such as a rigid diaphragm support, flow control, and high-grade construction to prevent stress failure. This top-of-the-line valve has an internal manual bleed as well as dependable Hunter solenoid for long life and operation.

  • Heavy-duty Hunter solenoid: Provides dependable operation and long life
  • High grade construction, 150 PSI rating: Made of durable materials to resist wear
  • External and Internal manual bleed: Easy to use and keeps valve box dry. All Hunter irrigation valves feature internal manual bleed, ensuring a neat, dry valve box
  • Rigid diaphragm support: Works to prevent stress failure in tough conditions, ensures leak-free performance
  • Globe and angle configurations: Easy to use in any application
  • Captive bonnet bolts and solenoid plunger: No lost parts during servicing
  • Low flow capability allows use of Hunter's micro irrigation products
  • Accu-Sync pressure regulator compatible: Dial setting pressure regulation for precise system control
  • Temperature rating: 150°F
  • Warranty period: 2 years

Product Details

  • Flow: .2 to 120 GPM (0.04 to 27.2 m3/hr; 0.7 to 454.2 l/min)
  • Recommended Pressure Range: 20 to 150 PSI (1.4 to 10.3 bars; 138 to 1034 kPa)
  • Heavy-duty solenoid: 24VAC; 370mA inrush current; 190mA holding current; 60 cycles; 475mA inrush current; 230mA holding current; 50 cycles

Dimensions

  • 1" Globe and Male x Male: 5" H x 4 1/2" L x 2 1/2" W (13 cm H x 11 cm L x 6 cm W)
  • 1" Male x Barb: 5" H x 5 1/2" L x 2 1/2" W (13 cm H x 14 cm L x 6 cm W)
  • 1" Angle: 5 1/2" H x 3 1/2" L x 2 3/4" W (14 cm H x 9 cm L x 7 cm W)
  • 1" Globe/Angle: 7 1/2" H x 5 3/4" L x 4 1/2" W (19 cm H x 15 cm L x 11 cm W)
  • 2" Globe/Angle: 8" H x 6 3/4" L x 5 1/4" W (20 cm H x 17 cm L x 13 cm W)

Related Articles & Videos

Articles

Videos

PGV PRESSURE LOSS IN PSI
FLOW GPM 1" GLOBE 1" ANGLE 1 ½" GLOBE 1 ½" ANGLE 2" GLOBE 2" ANGLE
1 1.1 1.0 - - - -
5 1.9 1.0 - - - -
10 1.9 1.0 - - - -
15 1.6 1.0 - - - -
20 3.3 2.0 3.0 3.0 1.0 1.0
30 6.1 3.0 3.0 3.0 1.0 2.0
40 - - 3.0 3.0 2.0 2.0
50 - - 4.0 3.5 1.0 1.0
60 - - 5.0 4.0 2.0 2.0
80 - - 5.5 4.5 3.0 2.0
100 - - - - 5.0 3.0
120 - - - - 6.0 5.0
PGV PRESSURE LOSS IN BARS
M3/HR 1" GLOBE 1" ANGLE 1 ½" GLOBE 1 ½" ANGLE 2" GLOBE 2" ANGLE
0.23 0.08 0.07 - - - -
1.14 0.13 0.07 - - - -
2.27 0.13 0.07 - - - -
3.41 0.11 0.07 - - - -
4.54 0.23 0.14 0.21 0.21 0.07 -
6.81 0.42 0.21 0.21 0.21 0.07 -
9.08 - - 0.21 0.21 0.14 -
11.36 - - 0.28 0.24 0.14 -
13.63 - - 0.34 0.28 0.14 -
18.17 - - 0.38 0.31 0.14 -
22.71 - - - - 0.21 -
27.25 - - - - 0.34 -
More Information
Brand Hunter
Product Type Inline Valves
Body Material Plastic
Flow Control No Flow Control
Valve Type In-Line
Connection Slip
Application Residential
Solenoid Yes
Warranty 2 Years
Size 1 in.
Specifications (139.42 kB)
