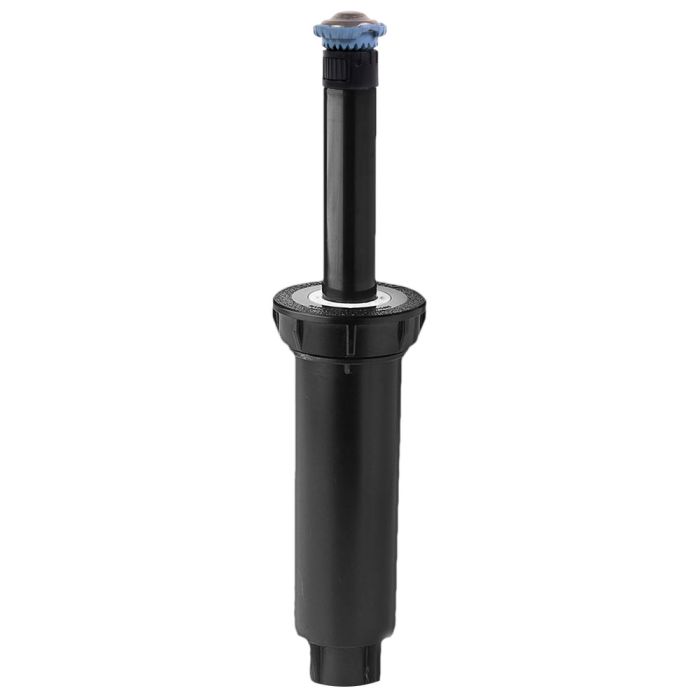

Rain Bird 1800 Bundle 45 PSI Presurre Regulated Spray Head with Seal-A-Matic with R-VAN14 4 in.
Pop-Up Height: 4 in.
Check Valve: SAM
Nozzle Installed: RVAN14
Features & Benefits
Rain Bird R-VAN Adjustable Rotary Nozzles provide water efficiency and design flexibility. R-VANs feature rotating stream technology which uniformly delivers water at a low precipitation rate, significantly reducing runoff and erosion.
Retrofitting standard spray nozzles with R-VANs can reduce flow by up to 60% and improve water efficiency by up to 30%. Nozzle spray pattern and distance are easily adjusted by hand with no tools required.
Matched precipitation rates across radius and arcs simplify the design process
Adjust arc and radius without tools
A pull-up to flush feature keeps the nozzle clear of dirt and debris
Color coded for easy identification of R-VAN model
Low precipitation rate reduces runoff and erosion
Maintains efficient performance at high operating pressures without misting or fogging
Compatible with all models of Rain Bird spray bodies in addition to a wide variety of risers and adapters
Installing with Rain Bird 5000 MPR Series Rotors allows for matched precipitation in installations from 8 to 35 (2.4m to 10.7m)
Three year trade warranty
Exclusive co-molded wiper seal features an encased plastic "cage" to provide unmatched resistance to grit, pressure and the environment. Additionally, the pressure-activated, multi-function seal design assures a positive seal without excess flow-by which enables more heads to be installed on the same valve.
Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types.
Strong stainless steel spring provides reliable stem retraction.
Two piece ratchet mechanism on all models allows easy nozzle pattern alignment without tools and provides added durability.
Pre-installed orange 1800 Pop-Top flush plug blocks debris from entering after flushing. Allows for easy nozzle installation.
Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, assuring long product life.
All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.
Side and bottom inlets featured on 1806 and 1812 models.
Five-year trade warranty.
Pressure Range: 30 to 55 psi (2.1 to 3.8 bar)
Recommended Operating Pressure: 45 psi (3.1 bar)
Spacing: 8 to 14 (2.4 to 4.3m)
Adjustments: Arc and radius should be adjusted while water is running
Specifications for RVAN14
The R-VAN nozzle shall have a variable arc that is adjustable without a tool at specified operating pounds per square inch (bar).
The R-VAN nozzle shall have a radius that is adjustable without a tool at specified operating pounds per square inch (bar).
The R-VAN nozzle shall have a variable arc of 45° to 270°.
The R-VAN nozzle angle of the trajectory shall vary from 4° to 34°.
The R-VAN nozzle shall be constructed of UV-resistant plastic. The protective metal cap shall be of stainless steel.
The R-VAN nozzle shall include a removable 0.012 x 0.012 mesh screen to protect the nozzle against clogging.
The R-VAN nozzle shall have a precipitation rate matched with Rain Bird 5000 Series MPR Rotor Nozzles.
The R-VAN nozzle shall have a 3 year trade warranty.
Spacing: 3 to 24 feet (0.9 to 7.3m)
3 to 18 feet with standard Rain Bird Spray Head Nozzles (MPR, VAN, U-Series). 13 to 24 feet with Rain Bird Rotary Nozzles
Pressure: 15 to 70 psi (1.0 to 4.8 bar).
Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3/h; 0.36 l/m otherwise.
Installation: side or bottom inlet.
Side inlet installation not recommended in freezing climates.
1806 and 1812-SAM and SAM-PRS units do not have a side inlet.
