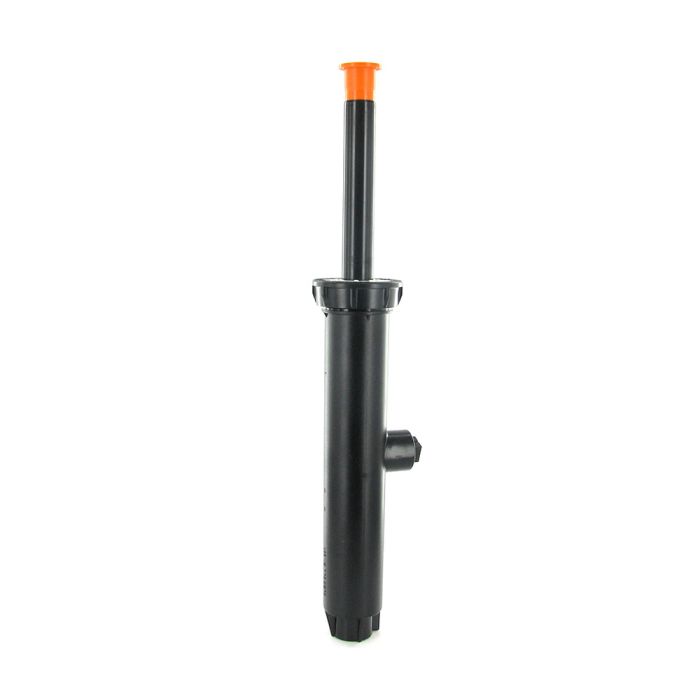

Rain Bird 1800 Spray Head with Side Inlet 6 in. | 1806

In stock
SKU
1806
Free Shipping on Orders over $149
On-Sale $6.95 List Price $9.64
Case of 50
$5.34 / each

1806 Series 6 in. Sprinkler Spray

  • Rain Bird 1800 Spray Head with Side Inlet
  • Check Valve: No Seal-A-Matic
  • Pop-Up Height: 6 inches

Features & Benefits

Installed in parks and backyards across the globe, Rain Bird's 1800 Series is the #1 commercial-grade irrigation spray head brand in the world. Chosen for its reliability, heavy-duty materials and versatility, the 1800 Series has first-rate quality built in for reliable operation and long life. Their superior components and features make them the spray heads of choice for a wide variety of applications. Also available with Seal-A-Matic (SAM) in-stem check valve option and patented PRS in-stem pressure regulator option.

  • Exclusive co-molded wiper seal features an encased plastic "cage" to provide unmatched resistance to grit, pressure and the environment. Additionally, the pressure-activated, multi-function seal design assures a positive seal without excess flow-by which enables more heads to be installed on the same valve.
  • Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types.
  • Strong stainless steel spring provides reliable stem retraction.
  • Two piece ratchet mechanism on all models allows easy nozzle pattern alignment without tools and provides added durability..
  • Pre-installed orange 1800 Pop-Top flush plug blocks debris from entering after flushing. Allows for easy nozzle installation.
  • Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, assuring long product life.
  • All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.
  • Side and bottom inlets featured on 1806 and 1812 models.
  • Five-year trade warranty.
  •

Product Details

  • Spacing: 3 to 24 feet (0.9 to 7.3m): 3 to 18 feet with standard Rain Bird Spray Head Nozzles (MPR, VAN, U-Series). 13 to 24 feet with Rain Bird Rotary Nozzles
  • Pressure: 15 to 70 psi (1.0 to 4.8 bar).
  • Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3/h; 0.36 l/m otherwise.
  • Installation: side or bottom inlet.
  • Side inlet installation not recommended in freezing climates.
  • 1806 and 1812-SAM and SAM-PRS units do not have a side inlet.
  • 1/2" (15/21) NPT female threaded inlets
  • Exposed surface diameter: 2 1/4" (5.7 cm)
  • Body height:
    • 1802: 4" (10,2 cm) body height; 2" pop-up height (5.1 cm)
    • 1804: 6" (15,2 cm) body height; 4" pop-up height (10.2 cm)
    • 1806: 9 3/8" (23,8 cm) body height; 6" pop-up height (15.2 cm)
    • 1812: 16" (40,6 cm) body height; 12" pop-up height (30.5 cm)
Brand:
Rain Bird
Type:
Spray Head
Nozzle Connection:
Female Nozzles
Spray Body Height (in.):
9 - 3/8 in.
Inlet Size:
1/2 in.
Spray Head Spring:
Stainless Steel
Spray Head Wiper Seal:
Co-Molded
Pressure Regulation:
No Pressure Regulation
Application:
Residential and Commercial
Warranty:
5 Years
Check Valve:
No SAM
Nozzle Installed:
No Nozzle (Flush Plug Only)
Pop-Up Height:
6 in.
Side Inlet:
Side Inlet
Advance Features:
No Check Valve, No Pressure Regulation
Specifications (401.19 kB)
