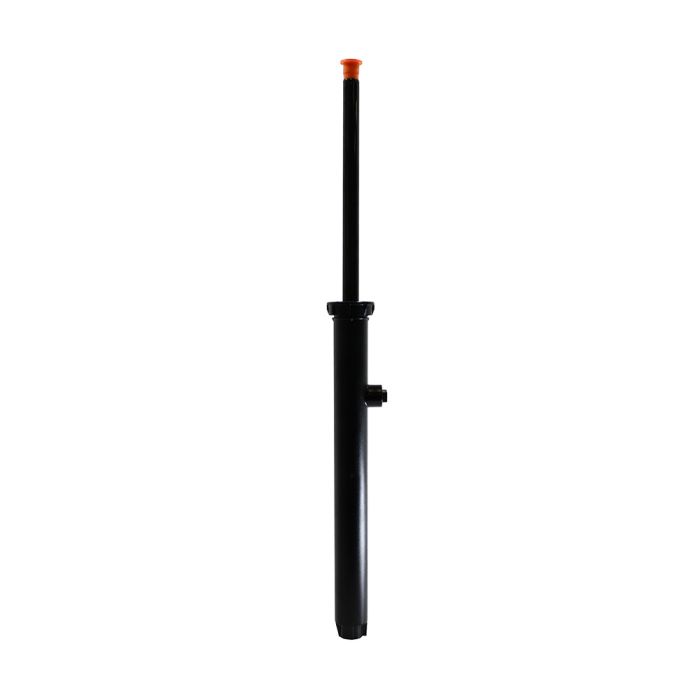

Rain Bird 1800 Spray Head with Side Inlet 12 in. | 1812

• Rain Bird 1800 Spray Head with Side Inlet
• Check Valve: No Seal-A-Matic
• Pop-Up Height: 12 inches

The Rain Bird 1800 Series 12" Pop-Up Spray Head, model number 1812, is a 12-inch pop-up spray head body from Rain Bird's 1800 Series irrigation line. This professional-grade lawn and landscape sprinkler is often used in in-ground irrigation systems. The rising stem lets the sprinkelr spray water over landscaped areas then retracts flush with the ground when off. The Rain Bird 1812 is typically installed near residential lawns, commercial landscapes with flat terrain, or near walkway or border areas, where a tall pop-up is preferred.

1. Shut off water to the irrigation zone
2. Prepare the trench and pipe
3. Connect the sprinkler body
4. Set head height
5. Add the nozzle/filter
6. Test and adjust

These heads accept Rain Bird spray nozzles, but the body itself doesn't include a nozzle. You can shop for Rain Bird spray nozzles on our website.

Features & Benefits

Installed in parks and backyards across the globe, Rain Bird's 1800 Series is the #1 commercial-grade irrigation spray head brand in the world. Chosen for its reliability, heavy-duty materials and versatility, the 1800 Series has first-rate quality built in for reliable operation and long life. Their superior components and features make them the spray heads of choice for a wide variety of applications. Also available with Seal-A-Matic (SAM) in-stem check valve option and patented PRS in-stem pressure regulator option.

• Exclusive co-molded wiper seal features an encased plastic "cage" to provide unmatched resistance to grit, pressure and the environment. Additionally, the pressure-activated, multi-function seal design assures a positive seal without excess “ flow-by,” which enables more heads to be installed on the same valve.
• Precision-controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types.
• Strong stainless steel spring provides reliable stem retraction.
• Two-piece ratchet mechanism on all models allows easy nozzle pattern alignment without tools and provides added durability.
• Pre-installed orange 1800 Pop-Top flush plug blocks debris from entering after flushing. Allows for easy nozzle installation.
• Constructed of time-proven UV-resistant plastic and corrosion-resistant stainless steel parts, assuring long product life.
• All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.
• Side and bottom inlets featured on 1806 and 1812 models.
• Five-year trade warranty.

Product Details

• Spacing: 3 to 24 feet (0.9 to 7.3m): 3 to 18 feet with standard Rain Bird Spray Head Nozzles (MPR, VAN, U-Series). 13 to 24 feet with Rain Bird Rotary Nozzles
• Pressure: 15 to 70 psi (1.0 to 4.8 bar).
• Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3/h; 0.36 l/m otherwise.
• Installation: side or bottom inlet.
• Side inlet installation not recommended in freezing climates.
• 1806 and 1812-SAM and SAM-PRS units do not have a side inlet.
• 1/2" (15/21) NPT female threaded inlets
• Exposed surface diameter: 2 1/4" (5.7 cm)
• Body height:
  • 1802: 4" (10,2 cm) body height; 2"pop-up height (5.1 cm)
  • 1804: 6" (15,2 cm) body height; 4"pop-up height (10.2 cm)
  • 1806: 9 3/8" (23,8 cm) body height; 6"pop-up height (15.2 cm)
  • 1812: 16" (40,6 cm) body height; 12"pop-up height (30.5 cm)
