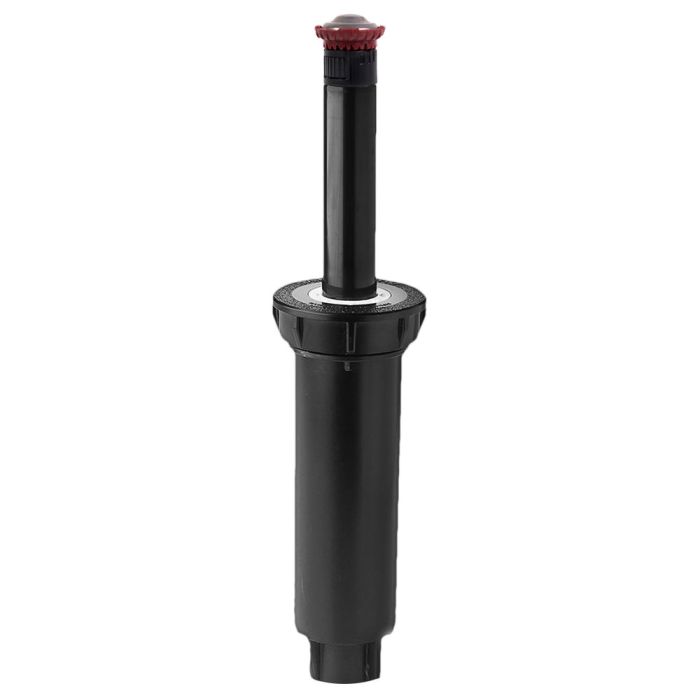

Rain Bird 1800 Bundle 45 PSI Presurre Regulated Spray Head with Seal-A-Matic with R-VAN24 4 in. | 1804SPRS-RVAN24

In stock
SKU
1804SPRS-RVAN24
Free Shipping on Orders over $149
Sales Price $12.95 Our Price $19.89 You save 35%

Rain Bird 1800 Bundle 45 PSI Presurre Regulated Spray Head with Seal-A-Matic with R-VAN24 4”

  • Product Type: Spray Head
  • Check Valve: Seal-A-Matic (SAM)
  • Nozzle Installed: R-VAN24
  • Pop-Up Height: 4 inches

Features & Benefits

Our top-of-the-line spray, including 45 psi in-stem pressure regulation and built-in Seal-A-Matic™ check valve. Used with Rotary Nozzles, this combination improves performance and saves water

Rain Bird® 1800-SAM-P45 Series Spray Heads are ideal for use in areas with changing elevations. The built-in Seal-A-Matic™ (SAM) check valve saves water by eliminating low head drainage from spray heads located at the base of slopes or hillsides.

Trusted for over 30 years, 1800 Series Spray Heads have provided unmatched durability, reliability, and performance. Superior components and features make the 1800 Series Spray Head the spray head of choice for a wide variety of applications.

Meets the needs of spray body applications using Rotary Nozzles regardless of changing elevation or water pressures. Incorporates 1800 Series SAM feature and regulates operating pressure at 45psi (3.1 bar).

1804-SAM-P45

  • Maintains constant outlet pressure at 45psi (3.1 bar) at varying inlet pressures. Maintains constant pressure regardless of nozzle used.
  • Ensures maximum spray body and nozzle performance, even with varying inlet pressures.
  • Maintains constant pressure, regardless of nozzle used
  • Designed to maximize application efficiency when using Rotary Nozzles.
  • ”SAM-PRS-45” stamped on cap for easy identification and maintenance.
  • Five-year trade warranty.

R-VAN24

  • Matched precipitation across radius, arcs, and pattern types
  • Low precipitation rate reduces run-off and erosion
  • Adjust arc and radius without tools
  • A pull-up to flush feature clears the nozzle of dirt and debris
  • Color coded and laser marked for easy identification of R-VAN model
  • Maintains efficient performance at high operating pressures without misting or fogging
  • Compatible with all models of Rain Bird spray bodies, risers and adapters
  • Installing with Rain Bird 5000 MPR Series Rotors allows for matched precipitation from 8’ to 35’ (2.4m to 10.7m)
  • Three year trade warranty

Product Details

1804-SAM-P45

  • Regulates nozzle pressure to an average 45 psi (3.1 bar) with inlet pressures of up to 70 psi (4.8 bar)
  • SAM capability: holds up to 14 feet (4.2 m) of head; 6 psi (0.4 bar)
  • PRS models regulate nozzle pressure to an average 30 or 45 psi (2.1 or 3.1 bar) with inlet pressures of up to 70 psi (4.8 bar)
  • Flow-by: 0 gpm at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m³/h; 0.36 l/m) otherwise
  • Installation: bottom inlet only

R-VAN24

  • Pressure Range: 30 to 55 psi (2.1 to 3.8 bar)
  • Recommended Operating Pressure: 45 psi (3.1 bar)
  • Spacing: 17’ to 24’ (5.2 to 7.3m)
  • Adjustments: Arc and radius should be adjusted while water is running

Optional Feature Specifications:

When so indicated on the design, the 4”, 6”, or 12” high pop-up spray sprinkler shall also include a Seal-A-Matic (SAM) check valve and a 45 psi pressure regulating (P45) device. These units shall be identifiable from the top with ”SAM-PRS-45” markings on the cap.

The check valve shall prevent low-head drainage of up to 14 feet of head. The pressure regulating device shall prevent high pressure misting and undesirable performance of the nozzle stream by regulating the nozzle pressure to 45 psi for inlet pressures from 50 to 70 psi. Below 50 psi the pressure loss shall not exceed 6 psi. These models shall utilize the bottom inlet only.

Dimensions

  • ½” (15/21) female threaded inlets.
  • Body height:
    • 1804-SAM-P45: 6” (15 cm)
    • 1806-SAM-P45: 9⅜” (24 cm)
    • 1812-SAM-P45: 16” (40 cm)
  • Exposed surface diameter: 2¼” (5.7 cm)

1800-SAM-P45 Models

  • 1804-SAM-P45: 4” pop-up height (10.2 cm)
  • 1806-SAM-P45: 6” pop-up height (15.2 cm)
  • 1812-SAM-P45: 12” pop-up height (30.5 cm)

Operating Range

  • Spacing: 2.5 to 24 feet (0.8 to 7.3m)∗
  • Pressure: 15 to 70 psi (1.0 to 4.8 bar)

∗2.5 to 18 feet with standard Rain Bird Spray Head Nozzles (SQ, MPR, VAN, U-Series); 13 to 24 feet with Rain Bird Rotary Nozzles

R-VAN24 17’ - 24’ (5.2 to 7.3m)
ARC PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H

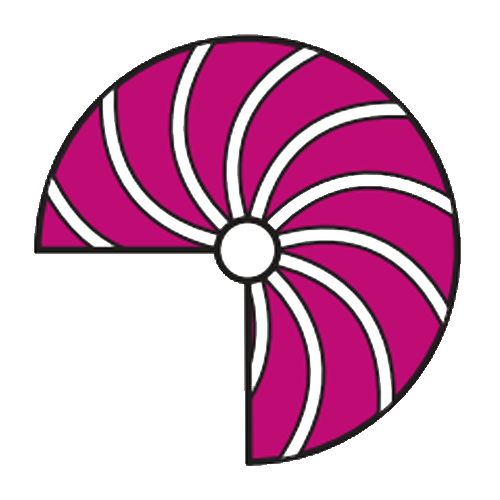

270°
30 19 1.80 0.64 0.74
35 20 1.95 0.63 0.72
40 22 2.31 0.61 0.71
45 23 2.52 0.61 0.71
50 24 2.82 0.63 0.73
55 24 2.88 0.64 0.74
ARC PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H

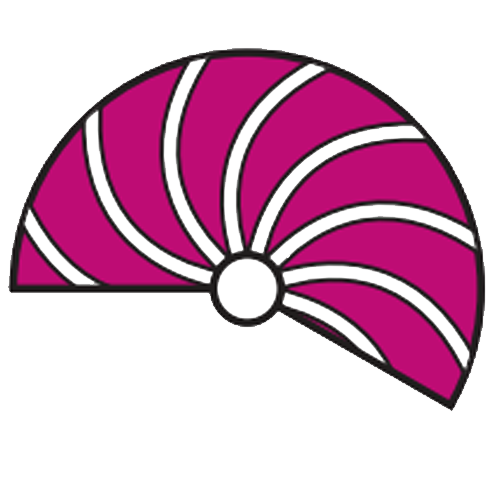

210°
30 19 1.40 0.64 0.74
35 20 1.52 0.63 0.72
40 22 1.80 0.61 0.71
45 23 1.96 0.61 0.71
50 24 2.19 0.63 0.73
55 24 2.24 0.64 0.74
ARC PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H

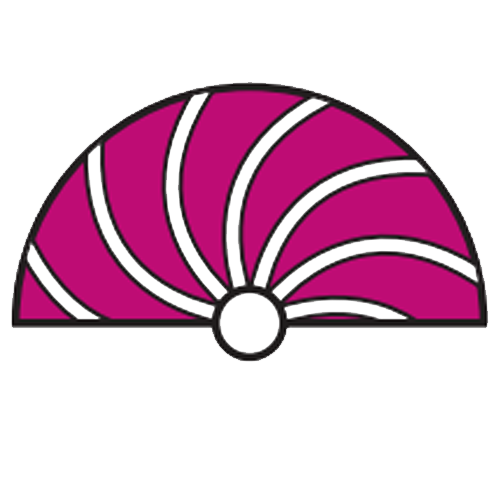

180°
30 19 1.20 0.64 0.74
35 20 1.30 0.63 0.72
40 22 1.54 0.61 0.71
45 23 1.68 0.61 0.71
50 24 1.88 0.63 0.73
55 24 1.92 0.64 0.74
ARC PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H

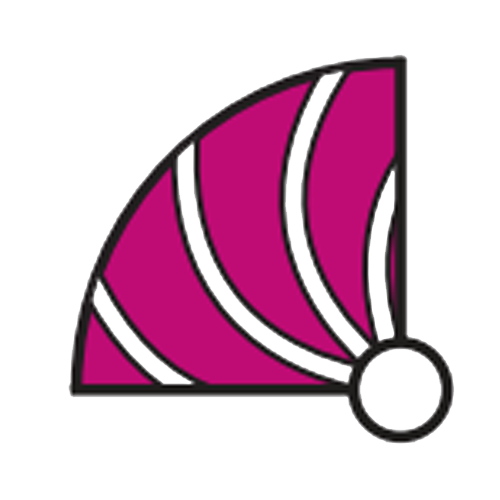

90°
30 19 0.60 0.64 0.74
35 20 0.65 0.63 0.72
40 22 0.77 0.61 0.71
45 23 0.84 0.61 0.71
50 24 0.94 0.63 0.73
55 24 0.96 0.64 0.74



Related Articles & Videos

Articles

Videos

Brand:
Rain Bird
Type:
Spray Head
Nozzle Connection:
Female Nozzles
Spray Body Height (in.):
6 in.
Inlet Size:
1/2 in.
Spray Head Spring:
Stainless Steel
Spray Head Wiper Seal:
Co-Molded
Pressure Regulation:
P45
Application:
Residential and Commercial
Warranty:
5 Years
Check Valve:
SAM
Nozzle Installed:
R-VAN24
Pop-Up Height:
4 in.
Side Inlet:
No Side Inlet
Advance Features:
Check Valve, R-VAN24, PRS45
