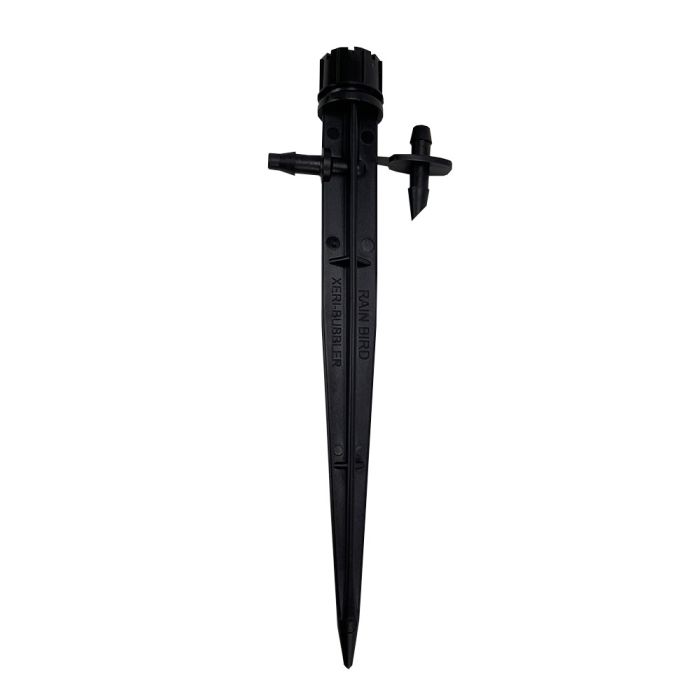

Rain Bird 8 Stream Xeri-Bubbler 5 in. Spike Base w/ Barb Coupler | SXB360SPYK

•  Size: 5 in.
•  Pattern: 360 degrees (full circle)
•  Connection: Spike Base, Barb Coupler

Features & Benefits

• Adjust flow and radius by turning outer cap
• Clean by completely unscrewing cap from base unit
• Three convenient installation connections available for design flexibility: 10-32 self-tapping thread, 1⁄4" barb, and 5" spike

Product Details

• Pressure: 15 to 30 psi (1.0 to 2.1 bar)
• SXB Series flow:
  • 0 to 13 gph (0 to 49.21 l/h) at 30 psi (2.1 bar)
  • 0 to 8.5 gph ( 0 to 30 l/h) at 15 psi (1 bar)
• UXB Series flow:
  • 0 to 35 gph (0 to 132.48 l/h) at 30 psi (2.1 bar)
  • 0 to 26 gph (0 to 98 l/h) at 15 psi (1 bar)
• Max flow varies with inlet pressure

Xeri-Bubbler Performance
