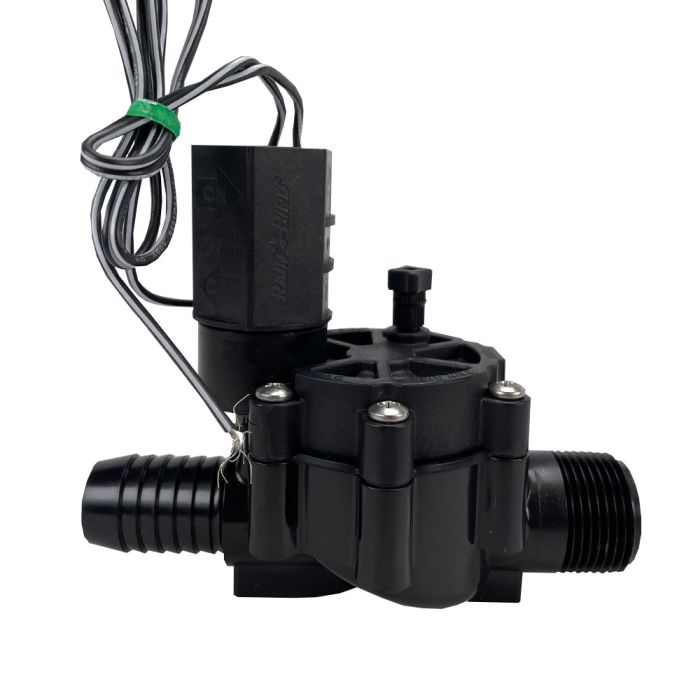

Rain Bird DV Inline Valve 1 in. MPT x Barb | 100-DV-MB-NPT

SKU
100-DV-MB-NPT
Free Shipping on Orders over $149
Sales Price $19.84 Our Price $39.95 You save 50%

Rain Bird DV In-Line Valve 1 in. MPT x Barb

  • Size: 1 in.
  • No Flow Control
  • Connection: MPT x Barb

Features & Benefits

The Industry's #1 Plastic Residential Irrigation Valves. Rain Bird manufactures only the highest quality valves. Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required. All of our valves work with any standard sprinkler timer.

  • 1 in. MPT x Barb Valve without Flow Control
  • Double-filtered pilot-flow design for maximum reliability.
  • Balanced-pressure diaphragm for long life.
  • External bleed to manually flush system of dirt and debris during installation and system start-up.
  • Internal bleed for spray-free manual operation.
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter.
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
  • Operates in low-flow and Xerigation° applications when the RBY filter is installed upstream.
  • 1.25" (3,2 cm) stainless steel phillips head screws.
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers.
  • Five-year trade warranty.
  • Note: One solenoid handle per order

Product Details

  • Pressure: 15 to 150 psi
  • 075-DV Non-Flow Control Model: 0.2 to 22 GPM. For flows below 3 GPM or any Xerigation application, use a 200 mesh filter installed upstream.
  • 100-DV Non-Flow Control Model: 0.2 to 40 gpm . For flows below 3 gpm or any Xerigation application, use a 200 mesh filter installed upstream.
  • 100-DVF Flow Control Model: 0.2 to 40 gpm ; For flows below 3 gpm or any Xerigation application, use a 200 mesh filter installed upstream.
  • Temperature: Up to 110° F (43° C)
  • Ambient air temperature: Up to 125° F (52° C)
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
  • 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current
  • Solenoid coil resistance: 38 Ohms
  • Height: 4-1/2"
  • Width: 3-1/3"
  • Length: 5-3/4"
More Information
Brand Rain Bird
Body Material Heavy-Duty Plastic Body
Flow Control No Flow Control
Valve Type In-Line
Connection MPT x Barb
Type Inline Valve
Application Residential
Solenoid Yes
Warranty 5 Years
Size 1 in.
Specifications (337.36 kB)
