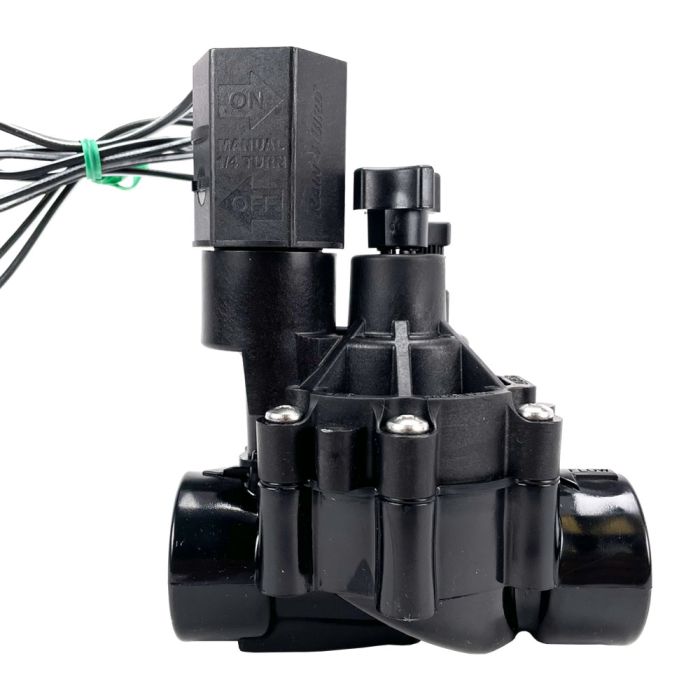

The Industry's #1 Plastic Residential Irrigation Valves
Rain Bird manufactures only the highest quality valves. Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against backflow. Check your local city codes to determine what type of valves are required. All of our valves work with any standard sprinkler timer.
Dimensions
DV Valves
DVF Valves
Models
| DV and DVF Valve Pressure Loss (PSI) | ||
|---|---|---|
| Flow GPM | 075-DV 3/4 in. PSI | 100-DV/100-DVF 1 in. PSI |
| 1 | 3.2 | 3.3 |
| 3 | 3.9 | 3.6 |
| 5 | 4.2 | 3.8 |
| 10 | 5.0 | 3.8 |
| 20 | 7.7 | 5.1 |
| 30 | - | 6.4 |
| 40 | - | 8.6 |
| DV and DVF Valve Pressure Loss (BAR) | |||
|---|---|---|---|
| Flow M3/H | L/M | 075-DV 3/4 in. BAR | 100-DV/100-DVF 1 in. BAR |
| 0.23 | 4 | 0.22 | 0.23 |
| 0.60 | 10 | 0.26 | 0.24 |
| 1.20 | 20 | 0.29 | 0.26 |
| 3.60 | 60 | 0.45 | 0.32 |
| 4.50 | 75 | 0.53 | 0.35 |
| 6.00 | 100 | - | 0.41 |
| 9.00 | 150 | - | 0.59 |
| 100-DV Angle, MXB Valve Pressure Loss (PSI) | ||
|---|---|---|
| Flow GPM | 075-DV 3/4 in. PSI | 100-DV/100-DVF 1 in. PSI |
| 1 | 2.8 | 2.5 |
| 3 | 3.0 | 2.9 |
| 5 | 3.2 | 3.0 |
| 10 | 3.9 | 3.1 |
| 20 | 4.3 | 4.3 |
| 30 | 5.4 | 7.4 |
| 40 | 8.2 | 12.7 |
| 100-DV Angle, MXB Valve Pressure Loss (BAR) | |||
|---|---|---|---|
| Flow GPM | L/M | 075-DV 3/4 in. BAR | 100-DV/100-DVF 1 in. BAR |
| 0.23 | 4 | 0.19 | 0.17 |
| 0.60 | 10 | 0.20 | 0.19 |
| 1.20 | 20 | 0.22 | 0.21 |
| 3.60 | 60 | 0.28 | 0.26 |
| 4.50 | 75 | 0.30 | 0.30 |
| 6.00 | 100 | 0.35 | 0.44 |
| 9.00 | 150 | 0.56 | 0.86 |
| Brand | Rain Bird |
|---|---|
| Product Type | Inline Valves |
| Body Material | Heavy-Duty Plastic Body |
| Flow Control | Flow Control |
| Valve Type | In-Line |
| Connection | FPT |
| Application | Residential |
| Solenoid | Yes |
| Warranty | 5 Years |
| Size | 1 in. |
