The Industry's #1 Plastic Residential Irrigation Valves
Rain Bird manufactures only the highest quality valves. Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against backflow. Check your local city codes to determine what type of valves are required. All of our valves work with any standard sprinkler timer.
Pressure: 15 to 150 psi (1.0 to 10.4 bar)
075-DV Non-Flow Control Model: 0.2 to 22 GPM. For flows below 3 GPM or any Xerigation application, use a 200 mesh filter installed upstream.
100-DV Non-Flow Control Model: 0.2 to 40 GPM. For flows below 3 GPM or any Xerigation application, use a 200 mesh filter installed upstream.

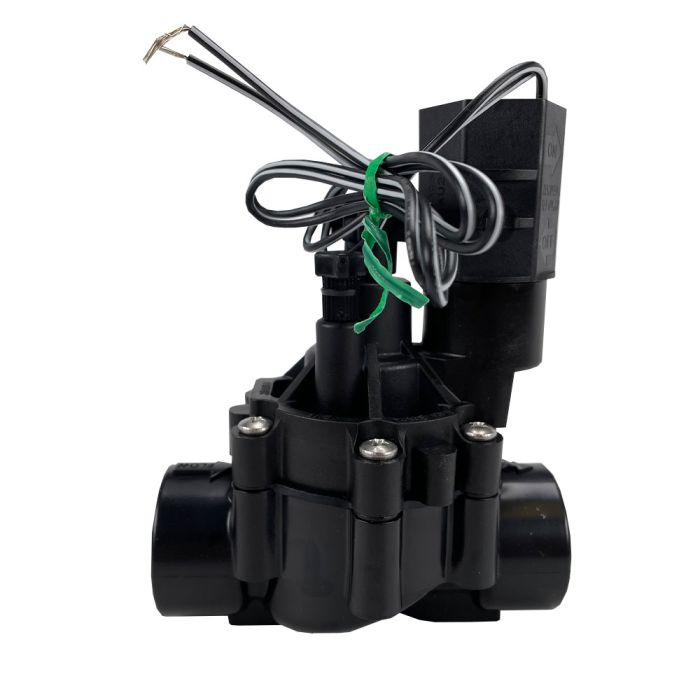

100-DVF Flow Control Model: 0.2 to 40 GPM. For flows below 3 GPM or any Xerigation application, use a 200 mesh filter installed upstream.
Temperature: Up to 110° F (43° C)
Ambient air temperature: Up to 125° F (52° C)
24 VAC 50/60 Hz (cycles per second) solenoid power requirement: 0.450A inrush current; 0.250A holding current
Solenoid coil resistance: 38 Ohms
Dimensions
DV Valves
DVF Valves
Models
| DV and DVF Valve Pressure Loss (psi) | ||
|---|---|---|
| Flow GPM | 075-DV 3/4 in. psi | 100-DV/100-DVF 1 in. psi |
| 1 | 3.2 | 3.3 |
| 3 | 3.9 | 3.6 |
| 5 | 4.2 | 3.8 |
| 10 | 5.0 | 3.8 |
| 20 | 7.7 | 5.1 |
| 30 | - | 6.4 |
| 40 | - | 8.6 |
| DV and DVF Valve Pressure Loss (bar) | |||
|---|---|---|---|
| Flow m3/h | l/m | 075-DV 3/4 in. bar | 100-DV/100-DVF 1 in. bar |
| 0.23 | 4 | 0.22 | 0.23 |
| 0.60 | 10 | 0.26 | 0.24 |
| 1.20 | 20 | 0.29 | 0.26 |
| 3.60 | 60 | 0.45 | 0.32 |
| 4.50 | 75 | 0.53 | 0.35 |
| 6.00 | 100 | - | 0.41 |
| 9.00 | 150 | - | 0.59 |
| 100-DV Angle, MxB Valve Pressure Loss (psi) | ||
|---|---|---|
| Flow GPM | 075-DV 3/4 in. psi | 100-DV/100-DVF 1 in. psi |
| 1 | 2.8 | 2.5 |
| 3 | 3.0 | 2.9 |
| 5 | 3.2 | 3.0 |
| 10 | 3.9 | 3.1 |
| 20 | 4.3 | 4.3 |
| 30 | 5.4 | 7.4 |
| 40 | 8.2 | 12.7 |
| 100-DV Angle, MxB Valve Pressure Loss (bar) | |||
|---|---|---|---|
| Flow GPM | l/m | 075-DV 3/4 in. bar | 100-DV/100-DVF 1 in. bar |
| 0.23 | 4 | 0.19 | 0.17 |
| 0.60 | 10 | 0.20 | 0.19 |
| 1.20 | 20 | 0.22 | 0.21 |
| 3.60 | 60 | 0.28 | 0.26 |
| 4.50 | 75 | 0.30 | 0.30 |
| 6.00 | 100 | 0.35 | 0.44 |
| 9.00 | 150 | 0.56 | 0.86 |
| Brand | Rain Bird |
|---|---|
| Product Type | Inline Valves |
| Body Material | Heavy-Duty Plastic Body |
| Flow Control | Flow Control |
| Valve Type | In-Line |
| Connection | Slip |
| Application | Residential |
| Solenoid | Yes |
| Warranty | 5 Years |
| Size | 1 in. |
