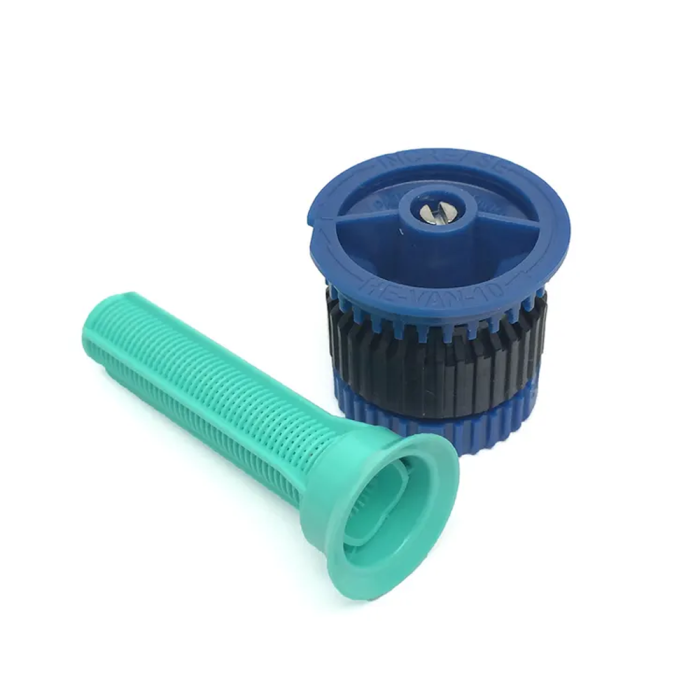

Rain Bird HE-VAN High Efficiency Adjustable Nozzle 10 ft
Features & Benefits
Rain Bird VAN Nozzles can be adjusted to the exact pattern of your lawn, ensuring your landscape will be precisely watered, so you don't need to worry about it. They are ideal for odd shaped corners and smaller grassy areas around sidewalks and driveways; they can also be used for watering flowerbeds or shrubs. A complete line of VAN nozzles is available covering a range from 3-18 feet.
Patent pending Flow Control Technology delivers superior close-in watering and uniform coverage across the entire spray pattern. Rain Bird HE-VAN Nozzles achieve greater than a 70% average DULQ - more than a 40% improvement over existing variable arc nozzles.
Product Details
- Easy arc adjustment from 0° to 360° for 10-, 12-, 15-, and 18-VAN; 0° to 330° for 4-, 6- and 8-VAN.
- The textured base and collar are easy to grip, even when wet.
- A physical left edge indicator makes it easier to feel the fixed left edge.
- No special tools required. A small twist of the center collar increases or decreases arc setting.
- Stainless steel adjustment screw to adjust flow and radius.
- "Captured" screw slot prevents screwdriver slippage during adjustment
- Blue filter screen (.02" x .02") (shipped with nozzles) maintains precise radius adjustment and prevents clogging.
- 12, 15, and 18-VAN have matched precipitation rates with Rain Bird MPR nozzles.
- Quickly identify radius with Top Color-coded nozzles. Top Color-coding makes it easy to verify proper nozzle installation, even when system is not operating.
- Fits all Rain Bird sprinklers and shrub adapters.
Operating Range
- 8-VAN: 6 to 8 feet (1.8 to 2.4 m)
- Pressure 15-30 psi ( 1.0 to 2.1 bar)
- Optimum Pressure 30 psi ( 2.1 bar)
