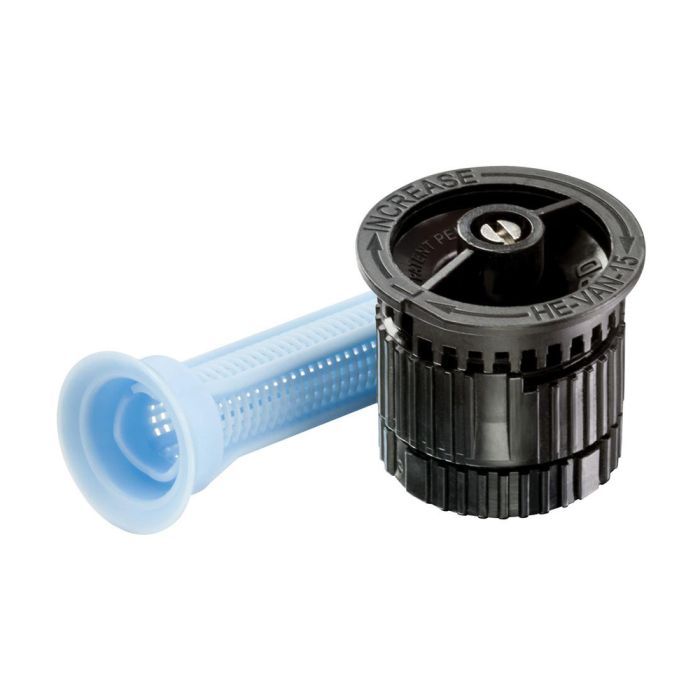

Rain Bird HE-VAN High Efficiency Adjustable Spray Nozzle (15 ft.) | HE-VAN15

• 15' Arc
• Adjustable Nozzle 0° to 360°
• Female threaded to fit male threaded sprays and adapters

Features & Benefits

• Easy arc adjustment from 0° to 360° with a simple twist of the center collar to increase or decrease arc setting
• ExactEdge takes the guesswork out of arc adjustment. As you turn the nozzle to the desired arc setting, youll feel it lock into place for a clean, consistent edge every time
• Patent pending Flow Control Technology provides superior close-in watering and uniform coverage across the entire pattern
• Thicker streams and large water droplets for greater wind resistance
• Matched precipitation rates with Rain Bird MPR and U-Series Nozzles.
• A strong top deflector to minimize nozzle damage due to normal wear and tear.
• No special tools required.
• Stainless steel adjustment screw to adjust flow and radius, up to a 25% reduction in radius.
• Shipped with appropriate filter screens to maintain precise radius adjustment and prevent clogging.
• Fits on all Rain Bird 1800 Series Spray Heads, UNI-Spray Series Spray Heads and Rain Bird Shrub Adapters.

Product Details

• Rain Bird HE-VAN Nozzles deliver an average Distribution Uniformity of 70%, more than a 40% improvement over typical variable arc spray nozzles
• Rain Bird HE-VAN Nozzles deliver a Scheduling Coefficient (measure of how long a zone must be run in order to provide adequate water to the driest spot) â°Â¤ 1.6, which is 35% lower than the typical variable arc spray nozzle.

Operating Range

• HE-VAN-08: 6 to 8 feet (1.8 to 2.4 m)
• HE-VAN-10: 8 to 10 feet (2.4 to 3.0 m)
• HE-VAN-12: 10 to 12 feet (3.0 to 3.7 m)
• HE-VAN-15: 12 to 15 feet (3.7 to 4.6 m)

HE-VAN15 15 ft Adjustable Nozzle

ARC	PRESSURE PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
	15	11	2.62	2.08	2.40
	20	12	3.02	2.02	2.33
	25	14	3.38	1.66	1.92
	30	15	3.70	1.58	1.83

ARC	PRESSURE PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
	15	11	1.96	2.08	2.40
	20	12	2.27	2.02	2.33
	25	14	2.53	1.66	1.92
	30	15	2.78	1.58	1.83

ARC	PRESSURE PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
	15	11	1.31	2.08	2.40
	20	12	1.51	2.02	2.33
	25	14	1.69	1.66	1.92
	30	15	1.85	1.58	1.83

ARC	PRESSURE PSI	RADIUS FT.	FLOW GPM	PRECIP IN/H	PRECIP IN/H
	15	11	0.65	2.08	2.40
	20	12	0.76	2.02	2.33
	25	14	0.84	1.66	1.92
	30	15	0.93	1.58	1.83
