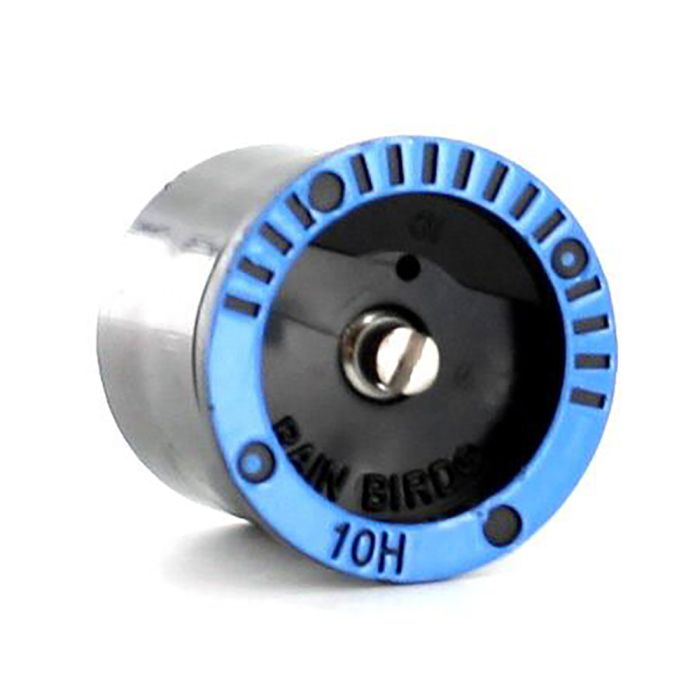

Rain Bird MPR Half Circle Spray Nozzle (10 ft.) | 10H

SKU
10H
Free Shipping on Orders over $149
Sales Price $1.13 Our Price $1.70 You save 34%
Quantity of 25
$1.11 / each
Quantity of 250
$1.09 / each

Rain Bird 10 Series MPR Spray Nozzle (Half Circle)

  • 10' Arc
  • Half Circle Nozzle
  • Female threaded to fit male threaded sprays and adapters

Features & Benefits

Rain Bird MPR Nozzles are installed by more contractors than all other brands combined. MPR Nozzles simplify the design process by allowing sprinklers with various arcs and radii to be mixed on the same circuit while maintaining even water distribution rates. They fit all Rain Bird spray heads and shrub adapters.

    • Matched precipitation rates across sets and across patterns in 10 Series for even water distribution and design flexibility.
    • Stainless steel adjustment screw to adjust flow and radius.
    • Fits all Rain Bird sprinklers and shrub adapters.

Product Details

  • Spacing: 3 to 20 feet (0,9 to 4,6 m)
  • Pressure: 15 to 30 psi (1 to 2,1 bar)
  • Optimum pressure: 30 psi (2,1 bar)

10H 10ft Fixed Nozzle
ARC PRESSURE PSI RADIUS FT. FLOW GPM  PRECIP IN/H  PRECIP IN/H
Rain Bird 10 Series MPR Spray Nozzle (Half Circle)
15 7 0.58 2.28 2.63
20 8 0.65 1.96 2.26
25 9 0.72 1.71 1.98
30 10 0.79 1.52 1.75
More Information
Brand Rain Bird
Product Type Spray Nozzles
Max PSI 30 PSI
Operating PSI 15 - 30 PSI
Warranty 3 Years
Spray Pattern Half Circle
Connection Female
Spray Radius 10 ft
