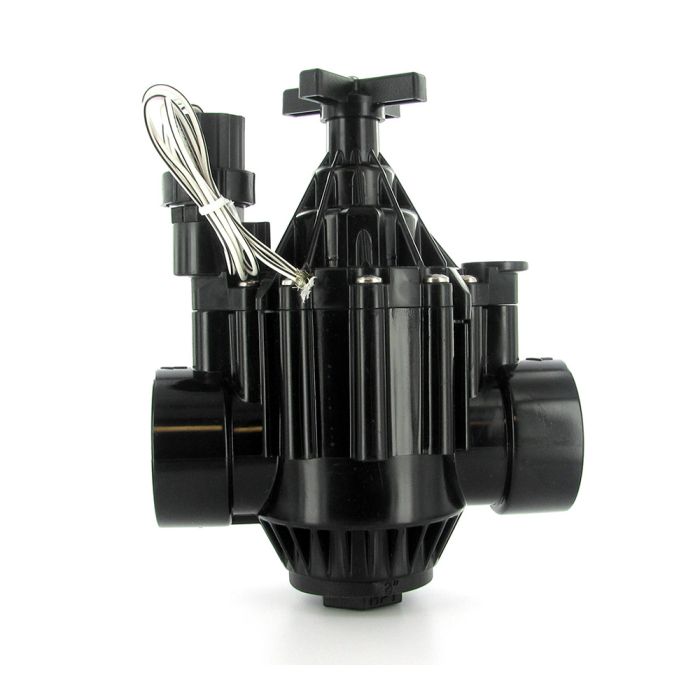

Rain Bird PGA Inline / Angle Valve with Flow Control 2 in. FPT | 200-PGA

• 2" Rain Bird 200-PGA Valve
• With Flow Control
• 2" Female Threaded Inlet/ Outlet

Features & Benefits

Built for high-end residential and light commercial applications, Rain Bird PGA series valves are the toughest, most reliable valves in their class. These long-lasting, easy-to-service valves are proven to perform at the highest level, even under harsh temperatures and intense pressure. For maximum peace of mind, PGA series valves also offer a best-in-class, three-year trade warranty. Because you care about your reputation and so do we.

• Water-tight seal between the body and bonnet for maximum confidence, even in the most extreme conditions
• Robust construction and electrical design for quiet performance you can count on
• Filtered pilot flow to resist debris and clogging
• Slow closing to prevent water hammer and subsequent system damage
• Normally closed, forward flow design accepts latching solenoid for use with Rain Bird battery-operated controllers
• Multi-drive screws (Phillips, flathead, hexagonal) for easy maintenance*
• Manual internal bleed operates the valve without allowing water into the valve box. This allows the pressure regulator to be adjusted without turning the valve on at the controller
• One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service
• Three-year trade warranty
• Accommodates optional, field-installed PRS-D pressure regulating dial to ensure optimum sprinkler performance
• Accepts latching solenoid for use with Rain Bird battery-operated controllers
• Optional purple flow control handle for non-potable water applications PGA-NP-HAN1 (1" and 1½"); PGA-NP-HAN2 (2")

Product Details

• Pressure: 15 to 150 psi (1.0 to 10.4 bar)
• Flow without PRS-D option: 2 to 150 GPM (0,5 to 34 m3/h; 0,13 to 9,44 l/s)
• Flow with PRS-D option: 5 to 150 GPM (1 to 34 m3/h; 0,32 to 9,44 l/s)
• Temperature: Up to 110°F (43°C)
• 24 VAC 50/60 Hz (cycles per second) solenoid
• Inrush current: 0.41A (9.9VA)
• Holding current: 0.14A (3.43VA)
• Solenoid Coil resistance: 30-39 Ohms, nominal

Dimensions

• 100-PGA: 7 1/4" x 5 1/2" x 3 1/4" (18.4 cm) x (14.0 cm) x (8.3 cm)
• 150-PGA: 8" x 6 3/4" x 3 1/2" (20.3 cm) x (17.2 cm) x (8.9 cm)
• 200-PGA: 10" x 7 3/4" x 5" (25.4 cm) x (23.5 cm) x (12.7 cm)

	Extreme Durability The PGA valve maintains a strong, worry-free seal between the body and bonnet, no matter the conditions. PGA valves were exposed to extreme temperature swings and intense pressures. The result: zero leaks.

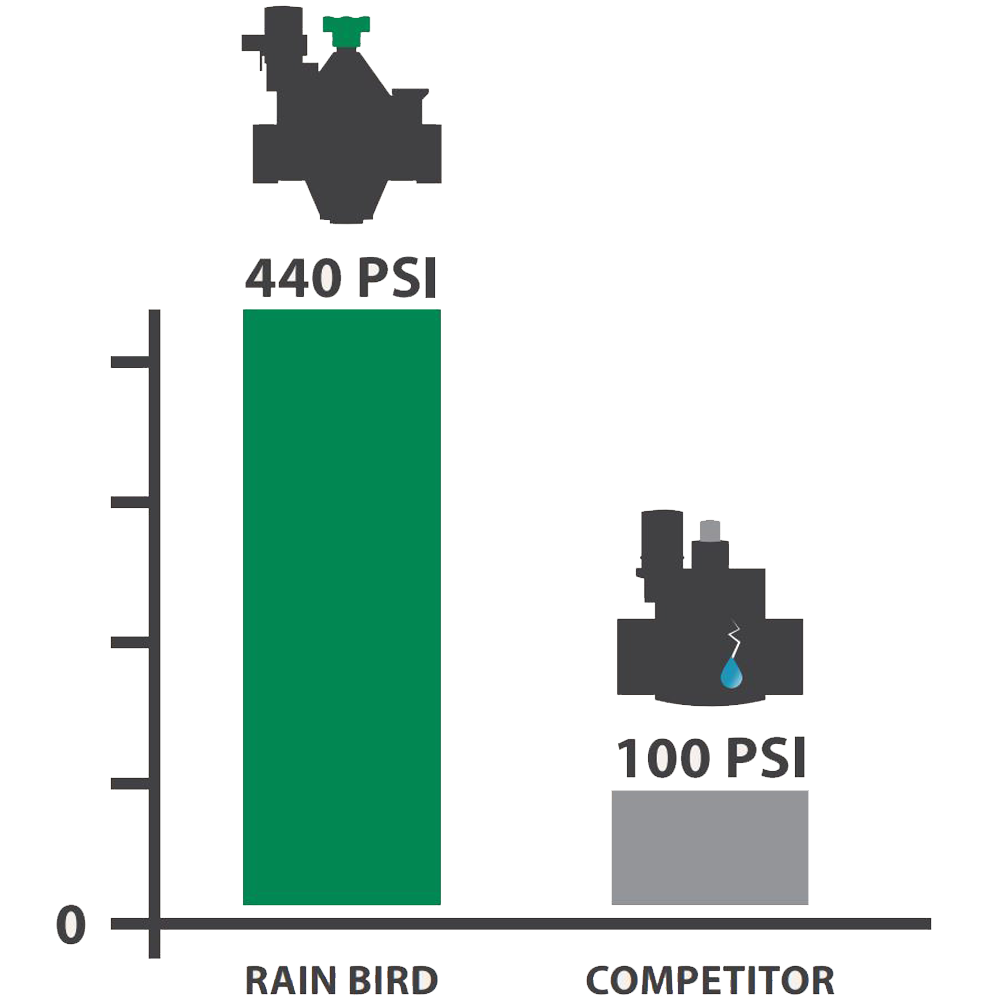

	Burst Test If high water pressure strikes, you need to be prepared for the worst-case scenario. For the Burst Test, we ramped up the pressure as high as it could go. We did the same for the valves of a leading competitor. The results were telling. While the competition exhibited body-to-bonnet leaks under pressures as low as 100 psi (6.9 bar), the PGA valve held strong, even at 440 psi (30 bar).
	Pressure-Resistant Seal The PGA valve's body-to-bonnet seal is built to overcome the intense water pressure typical of many commercial sites. Faced repeated pressure surges well into the triple digits, our valves outlasted the nearest competitor more then 2½ time to 1.
