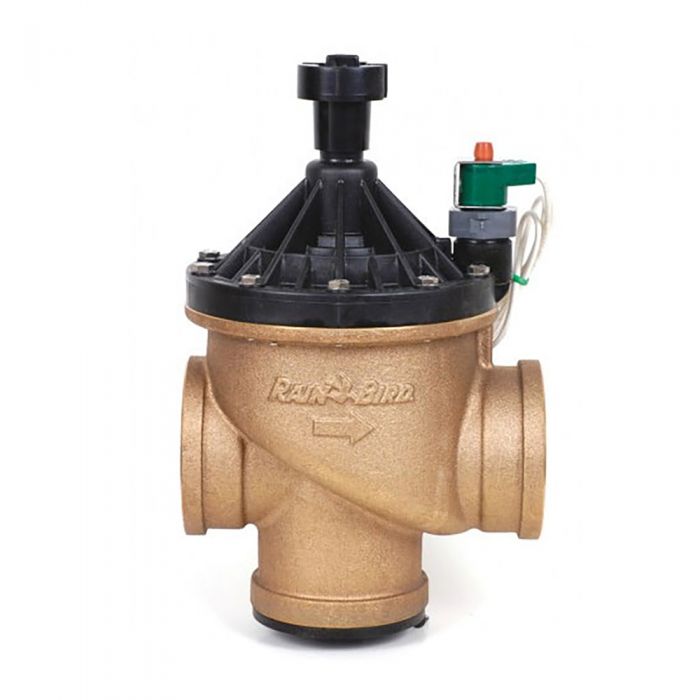

Rain Bird 3IN 300-BPES Series Brass Master Valve

Overview

Rain Bird Brass In-Line / Angle Valve with Flow Control 3 in. FPT

Size: 3 in.
Valve Type: In-Line / Angle
Connection: Female Pipe Thread

Features & Benefits

Rain Bird's 3" in. BPES irrigation valves are built tough to offer long life and efficient, trouble-free performance under harsh conditions.
Featuring a unique combination construction of brass body and glass-filled nylon bonnet, these valves are designed to withstand extreme pressure surges, effluent water and clogging debris.
For additional protection, the BPES model is equipped with a patented scrubber mechanism to actively fight dirt and particles.
Unique hybrid construction featuring durable red brass body and glass filled nylon bonnet for long life at a value price
Normally closed, forward flow design
Slow closing to prevent water hammer and subsequent system damage

Robust solenoid provides dependable performance even during constant operation
Flow control handle adjusts water flows as needed and incorporates a brass thread insert for longer life
Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator adjustment without turning the valve on at the controller
Manual external bleed permits flushing debris from the system. Recommended for system start up and repairs
Highly efficient operation with extremely low pressure loss
Patented nylon scrubber scrapes a stainless steel screen to clean and break down grit and plant material. Prevents debris build-up and clogging
Three-year trade warranty
Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance
Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 10.35 bar
Compatible with ESP-LXD decoders

Product Details

Pressure: 20 to 200 psi (1.4 to 13.8 bar)
Flow with/without PRS-D option: 60 to 300 gpm (13.6 to 68.1 m3/h; 3.78 to 18.90 l/s)
Temperature: up to 140° F (60° C)
Power: 24 VAC 50/60 Hz (cycles/sec) solenoid
Inrush current: 0.41 A (9.8 VA) at 50/60Hz
Holding current: 0.14 A (3.43 VA) at 50/60Hz
Coil resistance: 30-39 Ohms, nominal

Dimensions

Height: 13 5/8" (34.61 cm)
Length: 8" (20.32 cm)
Width: 7" (17.78 cm)

Replacement Parts

Bonnet Assembly	Solenoid Assembly	Lower Assembly
1. Bleed screw with o-ring	8. U-Frame	17. Diaphragm spring
2. Handle, flow control NP Handle (sold separately)	9. Rubber retainer	18. Diaphragm assembly
3. Bolts (10 each)	10. Coil	19. Diaphragm assembly
4. Stem with o-ring, flow control	11. Base nut (plastic)	20. Scrapper
5. Solenoid seal	12. Tube, welded	21.Plug and o-ring
6. Bonnet with solenoid seal	13.Plunger/spring assembly
7. Bonnet assembly	14. O-ring
	15.Adapter assembly
	16. Solenoid assembly
