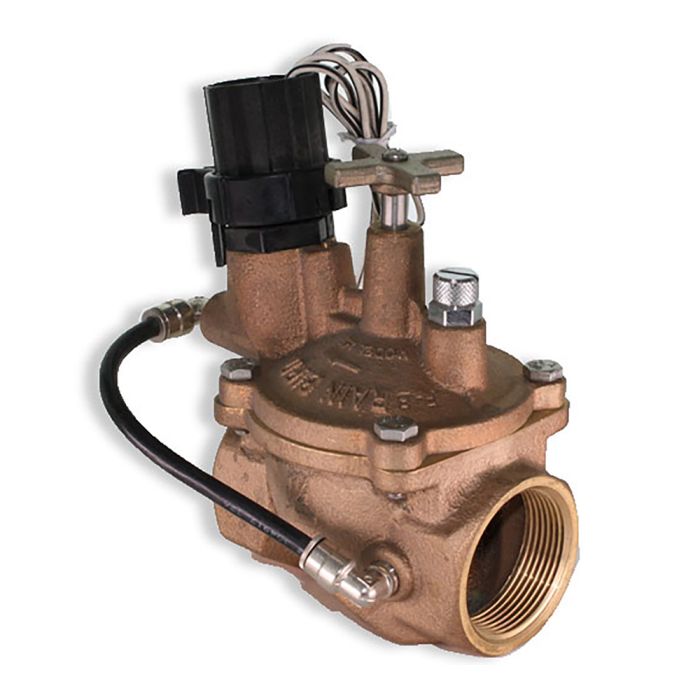

Rain Bird EFB-CP In-Line Valve with Flow Control 1-1/2 in. FPT
Features & Benefits
Electric remote control valves don't come any better than EFB-CP Series red brass valves. Need a contamination-proof, self-flushing screen that cleans itself and resists debris build-up in dirty water? The EFB-CP's the one!
Ideal for non-potable water valve applications, the EFB-CP is designed to handle chlorine and other harsh chemicals found in reclaimed water systems.
EFB-CP Series valves offer long life and superior performance in high pressure applications.
- Normally closed, reverse flow design ensures valve will fail in the closed position if a tear or rip in the diaphragm occurs. Prevents flooding, water waste and landscape damage.
- Slow closing to prevent water hammer and subsequent system damage.
- One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
- Flow control handle adjusts water flow as needed.
- Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator adjustment without turning on the controller.
- Manual external bleed permits flushing debris from the system. Recommended for system start up and other repairs.
- Contamination-proof, self-flushing filter screen resists debris build-up. Water flow continuously flushes the screen, dislodging particles and debris before they can accumulate and clog the filter.
- Globe configuration.
- Reclaimed water compatible: all models now feature EPDM diaphragms and chlorine-resistant parts as standard equipment.
- Purple handle cover included to designate non-potable water.
- Three-year trade warranty.
Product Details
Dimensions
- Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance. Regulates up to 100 psi (6.9 bar)
- Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bar).
- Compatible with ESP-LXD decoders.
- 100-EFB-CP 6" (15.2 cm) x 4 1/2" (11.4 cm) x 3 1/4" (8.3 cm)
- 125-EFB-CP 5 3/4" (14.6 cm) x 5" (12.7 cm) x 3 1/4" (8.3 cm)
- 150-EFB-CP 6 1/2" (16.5 cm) x 5 1/2" (14 cm) x 4 1/2" (11.4 cm)
- 200-EFB-CP 7" (17.8 cm) x 6 3/4 " (17.1 cm) x 5 3/4" (14.6 cm) Note: The PRS-D option adds 2" (5.1 cm) to the valve height.
Operating Range
- Pressure: 15 to 200 psi (1,04 to 13,80 bar)
- Flow with/without PRS-D: 5 to 200 GPM (1.14 to 45,40 m3/h; 0,32 to 12,60 l/s)
- Temperature: up to 150 F (66 C)
Electrical Specifications
- 24 VAC 50/60 Hz (cycles per second) solenoid
- Inrush current: 0.41A (9.9VA)
- Holding current: 0.14A (3.43VA)
- Coil resistance: 30-39 ohms
