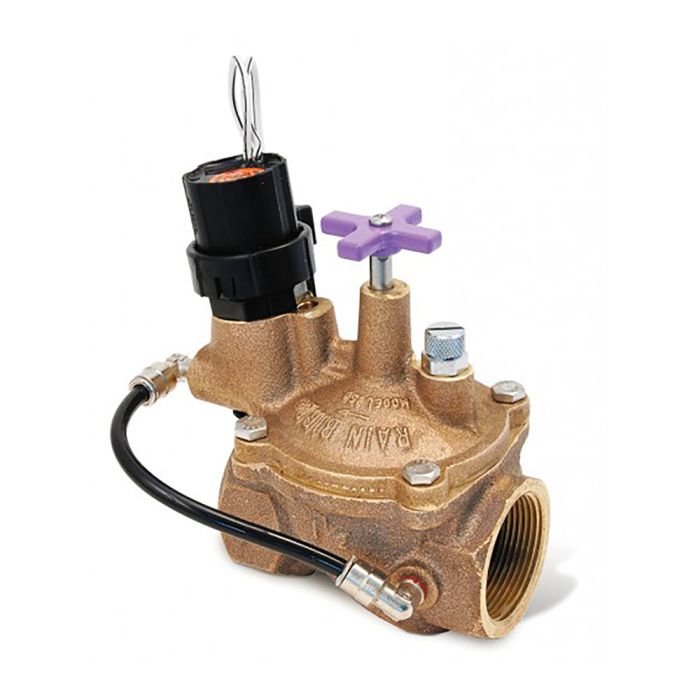

Rain Bird EFB-CP Inline Valve with Flow Control 1 in. FPT | EFB-CP-100

• Size: 1 in.
• Valve Type: In-Line
• Connection: Female Pipe Thread

Features & Benefits

Electric remote control valves don't come any better than EFB-CP Series red brass valves. Need a contamination-proof, self-flushing screen that cleans itself and resists debris build-up in dirty water The EFB-CP's the one! Ideal for non-potable water valve applications, the EFB-CP is designed to handle chlorine and other harsh chemicals found in reclaimed water systems. EFB-CP Series valves offer long life and superior performance in high pressure applications.

• Normally closed, reverse flow design ensures valve will fail in the closed position if a tear or rip in the diaphragm occurs. Prevents flooding, water waste and landscape damage.
• Slow closing to prevent water hammer and subsequent system damage.
• One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
• Flow control handle adjusts water flow as needed.
• Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator adjustment without turning on the controller.
• Manual external bleed permits flushing debris from the system. Recommended for system start up and other repairs.
• Contamination-proof, self-flushing filter screen resists debris build-up. Water flow continuously flushes the screen, dislodging particles and debris before they can accumulate and clog the filter.
• Globe configuration.
• Reclaimed water compatible: all models now feature EPDM diaphragms and chlorine-resistant parts as standard equipment.
• Purple handle cover included to designate non-potable water.
• Three-year trade warranty.

Product Details

Dimensions

• Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance. Regulates up to 100 psi (6.9 bar)
• Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bar).
• Compatible with ESP-LXD decoders.
• 100-EFB-CP 6" (15.2 cm) x 4 1/2" (11.4 cm) x 3 1/4" (8.3 cm)
• 125-EFB-CP 5 3/4" (14.6 cm) x 5" (12.7 cm) x 3 1/4" (8.3 cm)
• 150-EFB-CP 6 1/2" (16.5 cm) x 5 1/2" (14 cm) x 4 1/2" (11.4 cm)
• 200-EFB-CP 7" (17.8 cm) x 6 3/4 " (17.1 cm) x 5 3/4" (14.6 cm) Note: The PRS-D option adds 2" (5.1 cm) to the valve height.

Operating Range

• Pressure: 15 to 200 psi (1,04 to 13,80 bar)
• Flow with/without PRS-D: 5 to 200 GPM (1.14 to 45,40 m3/h; 0,32 to 12,60 l/s)
• Temperature: up to 150 F (66 C)

Electrical Specifications

• 24 VAC 50/60 Hz (cycles per second) solenoid
• Inrush current: 0.41A (9.9VA)
• Holding current: 0.14A (3.43VA)
• Coil resistance: 30-39 ohms
