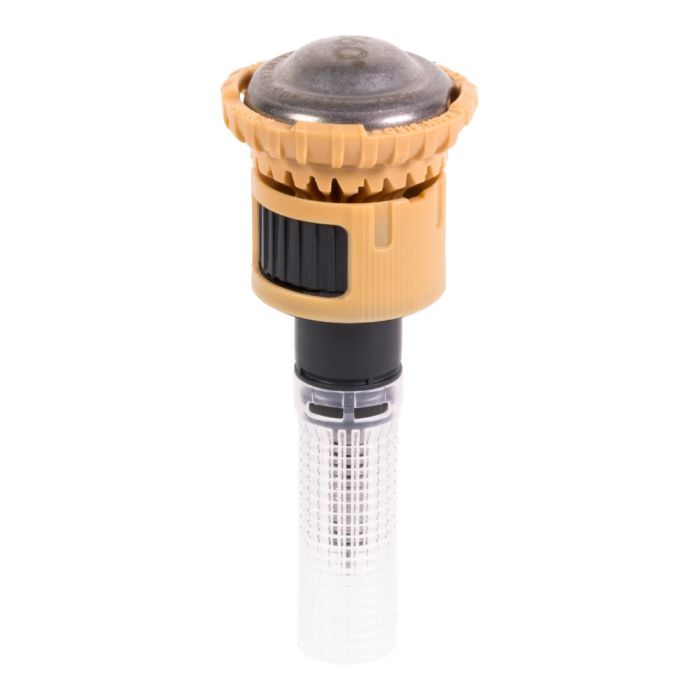

Rain Bird R-VAN 360 Degree Rotary Spray Nozzle (13 - 18 ft.) | R-VAN18-360

Features / Benefits

• Fewer zones, faster installs - System complexity and cost are reduced because more heads can be installed per zone. Rotary Nozzles can also be zoned with Rain Bird 5000/5000 Plus MPR Rotor Nozzles.
• Efficient water distribution - multiple rotating streams deliver close-in watering and even coverage throughout the radius range. The low precipitation rate significantly reduces wasteful run-off and erosion
• Ultimate retrofit solution - low flow rate and an expanded radius of throw solve existing spray zone inefficiencies caused by diminished pressure or stretched spacing.
• Low precipitation rate - 0.60 in/hr (15,2 mm/hr) - reduces run-off and erosion.
• Multiple, rotating streams uniformly distribute water throughout the radius range.
• Matched precipitation rate across radii and pattern simplify the design process.
• With approximately 60% less flow than conventional spray nozzles, Rotary Nozzles allow more heads per zone, reducing overall system complexity and cost.

Operating Range

• Pressure range: 20 - 55 psi
• Spacing: 1' to 24' (based on zero wind conditions)
• The Rotary Nozzle shall have multiple arced streams and have a matched precipitation rate of 0.60 in/hr.
• The Rotary Nozzle shall be constructed of UV-resistant plastic. The radius adjustment screw shall be of stainless steel.
