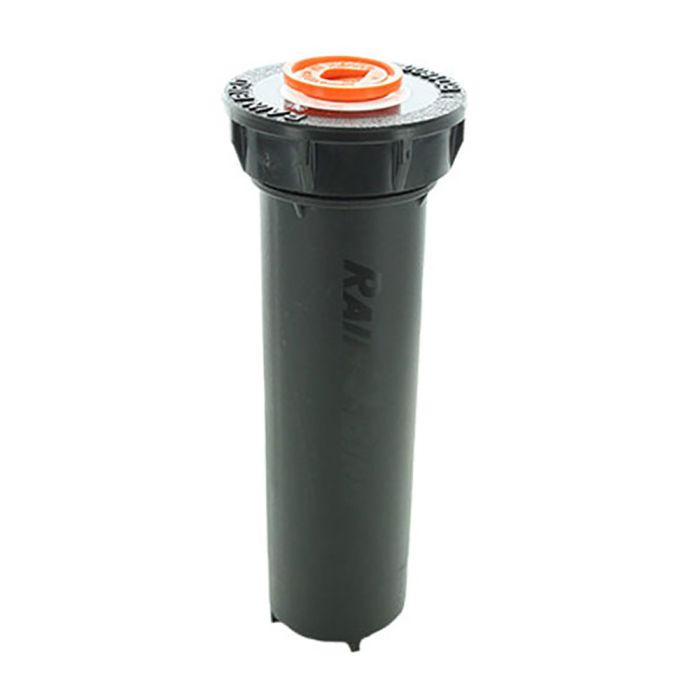

Rain Bird RD1800 30 PSI Pressure Regulated Spray Head with Seal-A-Matic 4 in. | RD04-SP30

Name: Rain Bird RD1800 30 PSI Pressure Regulated Spray Head with Seal-A-Matic 4 in. | RD04-SP30
Brand: Rain Bird
SKU: RD04-SP30
Price: 11.15 USD
Availability: OutOfStock

SKU

RD04-SP30

Overview

RD04-SP30 Series 4-inch Sprinkler Spray

Every landscape has elements that wear on your spray heads over time?from sand and grit to high water pressure and harmful chemicals in reclaimed water. RD1800? was designed with these incredibly harsh conditions in mind. As the next evolution in spray heads from Rain Bird?the industry leader in sprays?RD1800 was built with exclusive materials and features that stand up to the challenges of any setting (see Features below for more information about what sets the RD1800 apart).

Potable water models of the RD1800 feature a white seal, and offer our highest level of protection against the universal challenges that spray heads endure. Non-potable models add an extra level of defense against the chlorine and chemicals found in recycled water, and feature a purple seal with the international Do Not Drink symbol and warnings in English and Spanish.

Features / Benefits

Co-molded, pressure activated, Triple-Blade Wiper Seal assures positive seal without excess ?flow-by? which enables more heads to be installed on the same valve. A base seal provides a positive seal during operation. Precision controlled flush at pop-down clears debris from the unit, ensuring positive stem retraction in all soil types.
? Debris pockets in the base of the spray body collect debris and prevent recirculation in the body during operation, reducing wear.
Parts developed to be resistant to corrosion in treated recycled water containing chlorine and other chemicals.
Strong stainless steel spring provides reliable stem retraction and withstands corrosion.
Reinforced ratchet mechanism on all models allows easy nozzle pattern alignment without tools, withstands chemicals in recycled water and prevents pattern misalignment over time.
All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.

Operating Range

Spacing: 3 to 20 feet (0,9 to 6,1 m).
Pressure: 15 to 70 psi (1 to 5 bar).
Flow-by: 0 at 8 psi (0.6 bar) or greater; 0.1 gpm (0.02 m3/h; 0.006 l/s) otherwise.
Installation: side or bottom inlet.
Side inlet installation not recommended in freezing climates.
1804: 6" (15 cm) body height; 4" pop-up height (10 cm)

Manuals and Literature

Specifications Brochure

Specs

More Information
Brand	Rain Bird
Nozzle Connection	Female Nozzles
Side Inlet	No Side Inlet
Inlet Size	1/2 in.
Spray Body Height (in.)	6 in.
Check Valve	SAM
Spray Head Spring	Stainless Steel
Nozzle Installed	No Nozzle (Flush Plug Only)
Spray Head Wiper Seal	Triple Bladed
Non-Potable	Potable
Pressure Regulation	P30
Application	Commercial
Warranty	5 Years
Pop-Up Height	4 in.
Advanced Features	Check Valve, Potable, PRS30
Series	RD SP30 Series
