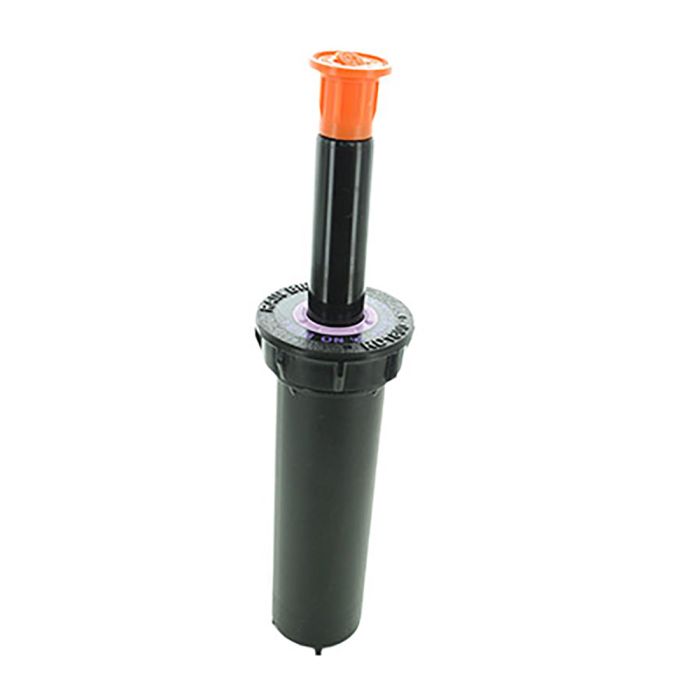

Rain Bird RD1800 Spray Head (Non-Potable) 4 in. | RD04-NP

In stock
SKU
RD04-NP
Free Shipping on Orders over $149
Sales Price $2.45 Our Price $3.51 You save 30%
Case of 75
$2.40 / each

Note: Some States Require Pressure Regulating Sprays (PRS) All spray sprinkler bodies sold in the following states will require pressure regulating stems (PRS) and EPA WaterSense certification on and after the dates listed below: Vermont: July 1, 2020 California: October 1, 2020 Colorado: January 1, 2021 Hawaii: January 1, 2021 Washington: January 1, 2021

RAIN BIRD RD-04 Non-Potable Sprinkler Spray

Pop-Up Height: 4" Overall Body Height: 6" Exposed surface diameter: 2 1/4" Bottom: ?"(15/21) NPT female threaded inlet

The Rain Bird RD1800?s exclusive Triple-Blade Wiper Seal prevents stick-ups. Its innovative design handles the thickest grit and most dramatic pressure variations with ease and its exclusive Flow-Shield? Technology helps you identify and solve problems faster. The Rain Bird RD1800 is available in both potable and non-potable versions.

These Pop-Up Spray Heads are sold body ONLY (nozzles not included). Nozzles purchased separately to allow you to choose exact pattern and radius (distance) that you need.

Note: If the overall height of spray head is too tall for your application, you can use a Hunter Pre-Made Swing Joint to move the head off the pipe and allow you to bury it deeper.

Tech Spec (591 KB)

Brochure (105 KB)


  • The co-molded, pressure activated, Triple-Blade Wiper Seal assures positive seal without excess ?flow-by? which enables more heads to be installed on the same valve. A base seal provides a positive seal during operation and Triple-Blade Wiper Seal serve to precisely balance flushing, flow-by, and debris protection to optimize performance and durability during pop-up. Precision controlled flush at pop-down clears debris from the unit, ensuring positive stem retraction in all soil types.
  • Debris pockets in the base of the spray body collect debris and prevent recirculation in the body during operation reducing wear.
  • Designed for use with all Rain Bird plastic spray head nozzles ? Rotary Nozzles, U-Series, MPR, HE-VAN, VAN, and SQ Series.
  • Parts developed to be resistant to corrosion in treated recycled water containing chlorine and other chemicals.
  • Strong stainless steel spring provides reliable stem retraction and withstands corrosion.
  • Reinforced ratchet mechanism on all models allows easy nozzle pattern alignment without tools, withstands chemicals in recycled water, and prevents pattern misalignment over time.
  • Pre-installed 1800 Pop-Top? flush plug blocks debris from entering after flushing and allows for easy nozzle installation.
  • Constructed of time-proven UV-resistant plastic and corrosion resistant stainless steel parts, assuring long product life.
  • All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler.
  • Side inlets featured on non Seal-A-Matic? (SAM) models only.
  • 5 Year Trade Warranty

  • 1/2" (15/21) NPT female threaded inlet
  • Models and height: RD-04 : 6" (15 cm) body height; 4" pop-up height (10 cm) RD-06 : 9 3/8" (24 cm) body height; 6" pop-up height (15 cm) RD-12 : 16" (40 cm) body height; 12" pop-up height (30 cm)
  • Exposed surface diameter: 2 1/4" (5;7 cm)

  • Spacing: 2.5 to 24 feet (0,8 to 7,3 m)
  • Spacing: 3 to 18 feet with standard Rain Bird Spray Head Nozzles (MPR,VAN,U-Series). 13 to 24 Feet with Rain Bird Rotary Nozzles
  • Pressure: 15 to 100 psi (1,0 to 6,9 bar)
  • Flow-by: 0 at 8 psi (0,6 bar) or greater; 0.10 gpm (0,02 m3/h; 0,006 l/s) otherwise

More Information
Brand Rain Bird
Type Spray Head
Nozzle Connection Female Nozzles
Spray Body Height (in.) 6 in.
Inlet Size 1/2 in.
Spray Head Spring Stainless Steel
Spray Head Wiper Seal Triple Bladed
Non-Potable Non-potable
Pressure Regulation No Pressure Regulation
Application Commercial
Warranty 5 Years
Check Valve No SAM
Nozzle Installed No Nozzle (Flush Plug Only)
Pop-Up Height 4 in.
Side Inlet No Side Inlet
Advance Features Non-Potable, No Check Valve, No Pressure Regulation
Specifications (297.49 kB)
