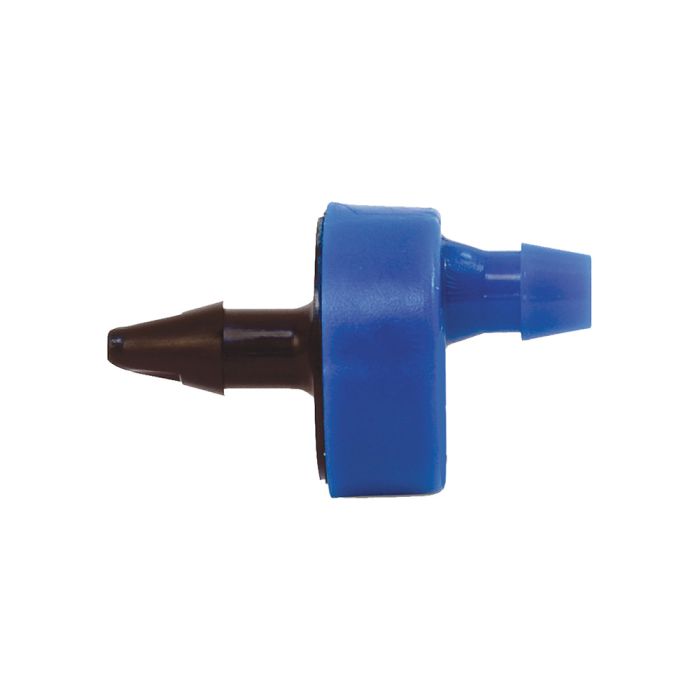

Rain Bird XB 0.5 GPH Button Drip Emitter 1/4 in. | XB-05PC

• Rain Bird XB Button Drip Emitter
• Flow Rate: 0.5 GPH
• Drip Irrigation Size: 1/4 inch

Point Source Emission Devices

Features & Benefits

Ideal for watering the root zones of plants; trees; and container plants. Xeri-Bugs emit water at rates of 0.5; 1.0 and 2.0 gallons-per-hour (GPH) which allows soils to absorb water more completely into the root zones of plants. Xeri-Bugs are an ideal choice for those wishing to to conserve water or eliminate excessive run-off.

• Pressure-compensating design delivers uniform flow throughout a wide pressure range (15 to 50 psi; 1;0 to 3;5 bars).
• Available with self-piercing inlet barb to permit one-step emitter insertion into 1/2" or 3/4" drip tubing when installed with the XM-Tool.
• Inlet and outlet barb securely retains 1/4" distribution tubing (DT-025 or PT-025).
• Available with 10-32 threaded inlet that easily threads into a polyflex riser (see page 245).
• Use Xeri-Bugs (barb or 10-32 models) with the Xeri-Bird 8 multioutlet device (see page 240).
• Available with 1/2" (15/21) FPT inlet that easily threads onto a 1/2" PVC riser.
• Self-flushing action minimizes clogging.
• Made from highly inert materials that are resistant to chemicals.
• Durable plastic construction is UV-resistant.
• Color-code inlet identifies flow rate.

Product Details

• Flow: 0.5 to 2.0 GPH (1;89 to 7;57 l/h)
• Pressure: 15 to 50 psi (1;0 to 3;5 bars)
• Filtration: 150 to 200 mesh (75 to 100 micron)
