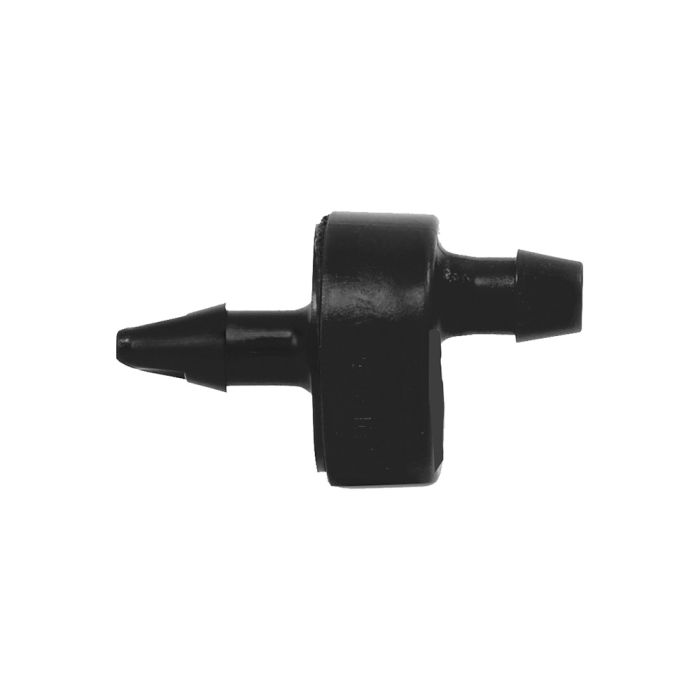

Rain Bird XB 1 GPH Button Drip Emitter 1/4 in. | XB-10PC

SKU

XB-10PC

Sales Price $0.56 Our Price $0.95 You save 41%

Overview

Xeri-Bug Emitters

This product includes one Xeri Bug Emitter (this is not a pack)
Rain Bird XB Button Drip Emitter (XB-10PC)
Flow Rate: 1 GPH
Drip Irrigation Size: 1/4 inch

Features & Benefits

Point Source Emission Devices

Ideal for watering the root zones of plants; trees; and container plants. Xeri-Bugs emit water at rates of 0.5; 1.0 and 2.0 gallons-per-hour (GPH) which allows soils to absorb water more completely into the root zones of plants. Xeri-Bugs are an ideal choice for those wishing to to conserve water or eliminate excessive run-off.

1 GPH
Pressure-compensating design delivers uniform flow throughout a wide pressure range (15 to 50 psi; 1;0 to 3;5 bars).
Available with self-piercing inlet barb to permit one-step emitter insertion into 1/2" or 3/4" drip tubing when installing with the XM-Tool.
Inlet and outlet barb securely retains 1/4" distribution tubing (DT-025 or PT-025).
Available with 10-32 threaded inlet that easily threads into a polyflex riser (see page 245).
Use Xeri-Bugs (barb or 10-32 models) with the Xeri-Bird 8 multioutlet device (see page 240).
Self-flushing action minimizes clogging.
Made from highly inert materials that are resistant to chemicals.
Durable plastic construction is UV-resistant.
Color-code inlet identifies flow rate.

Operating Range

Flow: 0.5 to 2.0 GPH (1;89 to 7;57 l/h)
Pressure: 15 to 50 psi (1;0 to 3;5 bars)
Filtration: 150 to 200 mesh (75 to 100 micron)

Xeri-Bug Emitter Specifications & Models
MODEL	INLET TYPE	COLOR	NORMAL FLOW (GPH)	FILTRATION REQUIRED MESH
XB-05PC	Barb	Blue	0.5	200
XB-10PC	Barb	Black	1.0	150
XB-20PC	Barb	Red	2.0	150
XB-05PC1032	10-32T	Blue	0.5	200
XB-10PC1032	10-32T	Black	1.0	150
XB-20PC1032	10-32T	Red	2.0	150
XBT-10PC	1/2" FPT	Black	1.0	150
XBT-20PC	1/2" FPT	Black	2.0	150
