Rain Bird XB 0.5 GPH Button Drip Emitter 10/32 | XB-05PC-1032

In stock
SKU
XB-05PC-1032
Free Shipping on Orders over $149
Sales Price $0.45 Our Price $1.15 You save 61%

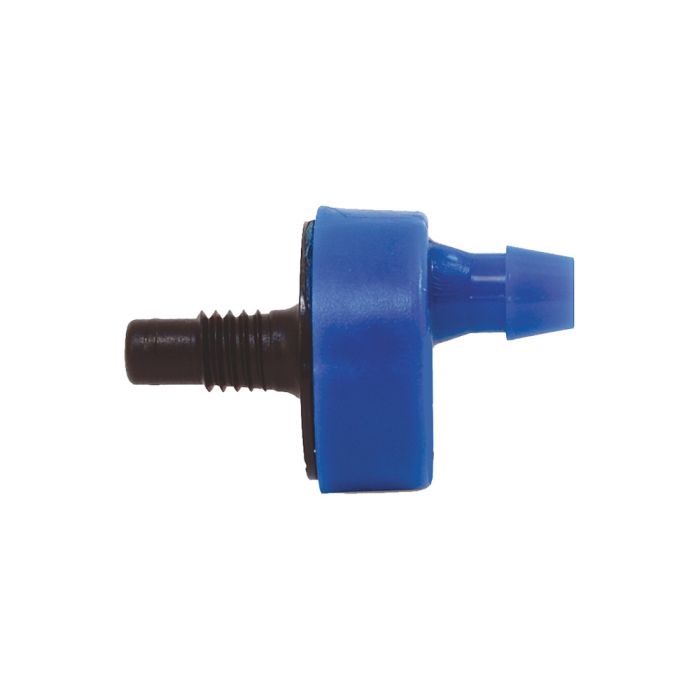

Rain Bird XB 0.5 GPH Button Drip Emitter 10/32

  • Size: 10/32
  • Flow Rate: 0.5 GPH
  • Type: Button Drip Emitters

Point Source Emission Devices

Ideal for watering the root zones of plants; trees; and container plants. Xeri-Bugs emit water at rates of 0.5; 1.0 and 2.0 gallons per hour (GPH) which allows soils to absorb water more completely into the root zones of plants. Xeri-Bugs are an ideal choice for those wishing to conserve water or eliminate excessive run-off.

Features & Benefits

  • Pressure-compensating design delivers uniform flow throughout a wide pressure range (15 to 50 psi; 1;0 to 3;5 bars).
  • Available with self-piercing inlet barb to permit one-step emitter insertion into 1/2" or 3/4" drip tubing when installed with the XM-Tool.
  • Inlet and outlet barb securely retains 1/4" distribution tubing (DT-025 or PT-025).
  • Available with 10-32 threaded inlet that easily threads into a poly flex riser (see page 245).
  • Use Xeri-Bugs (barb or 10-32 models) with the Xeri-Bird 8 multi-outlet device (see page 240).
  • Available with 1/2" (15/21) FPT inlet that easily threads onto a 1/2" PVC riser.
  • Self-flushing action minimizes clogging.
  • Made from highly inert materials that are resistant to chemicals.
  • Durable plastic construction is UV-resistant.
  • Color-code inlet identifies flow rate.

Product Details

  • Flow: 0.5 to 2.0 GPH (1;89 to 7;57 l/h)
  • Pressure: 15 to 50 psi (1;0 to 3;5 bars)
  • Filtration: 150 to 200 mesh (75 to 100 micron)
Xeri-Bug Emitter Specifications & Models
MODEL INLET TYPE COLOR NORMAL FLOW (GPH) FILTRATION REQUIRED MESH
XB-05PC Barb Blue 0.5 200
XB-10PC Barb Black 1.0 150
XB-20PC Barb Red 2.0 150
XB-05PC1032 10-32T Blue 0.5 200
XB-10PC1032 10-32T Black 1.0 150
XB-20PC1032 10-32T Red 2.0 150
XBT-10PC 1/2" FPT Black 1.0 150
XBT-20PC 1/2" FPT Black 2.0 150
More Information
Brand Rain Bird
Warranty 3 Years
Size 10/32
Flow Rate 0.5 GPH
Type Button Drip Emitters
