Single-Wire Dual-Zone Control | NewZone

Overview

• Run two valves independently using 1 pair of wires
• Save time not needing to trench
• Continue running separate watering schedules on multiple programs

Product Details

Effective and Simple

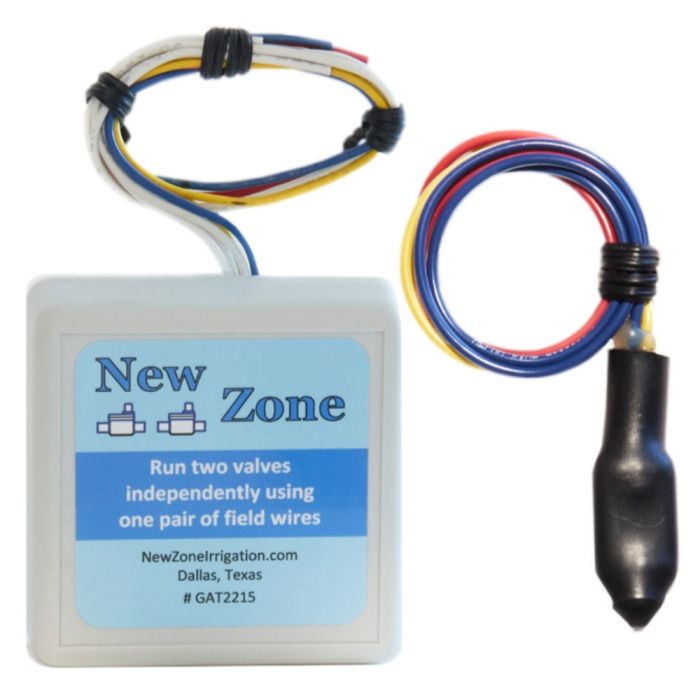

New Zone enables you to run two valves independently using only one pair of field wires. It’s a cost-effective solution for reactivating a valve due to cut wires as well as adding a new valve to your system.

Save Time & Money
Eliminates the need to trench and install new field wires from the new, or repaired valve, to the controller. Clear instructions and diagrams ensure timely installations and repairs.

Design to Work Seamlessly
Valves run independently providing the flexibility to manage diverse watering requirements. Continue running separate watering schedules on multiple programs in both manual and automatic settings.

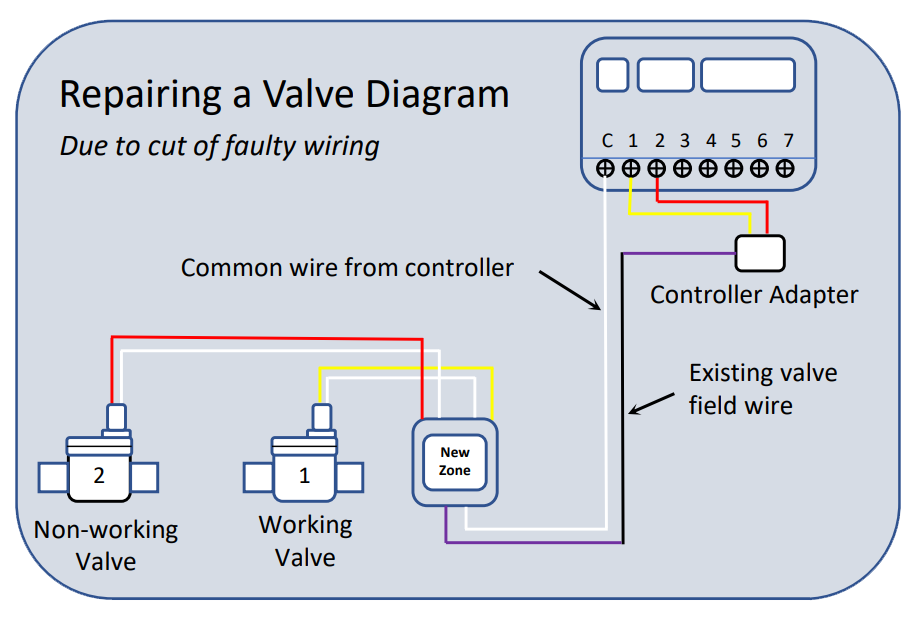

To Repair A Valve

Valve Adapter

• Connect Yellow wire and White wire to a working valve’s solenoid wires
• Connect Red wire and White wire to the solenoid wires of the non-working valve
• Connect Blue wire to the working valve’s field wire (from the controller) and White wire to field common wire

Controller Adapter

• Connect Yellow wire to the output terminal of the working valve
• Connect Red wire to the output terminal of the non-working valve
• Connect Blue wire to the field wire of working valve

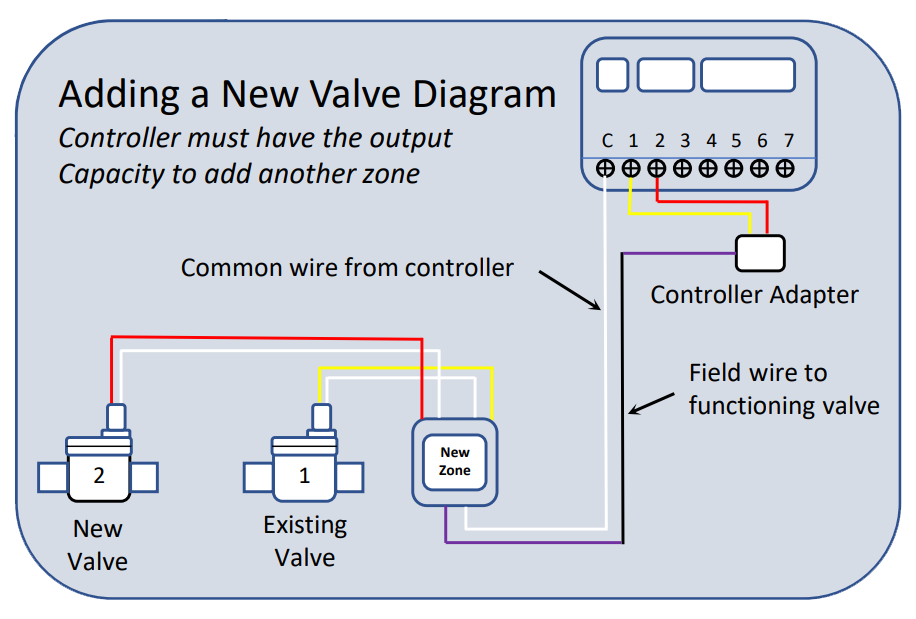

To Add A Valve

Valve Adapter

• Connect Yellow wire and White wire to the existing valve’s solenoid wires
• Connect the Red wire and White wire to the solenoid wires of the new valve
• Connect the Blue wire to the existing valve’s field wire (from the controller) and White wire to field common wire

Controller Adapter

• Connect the Yellow wire to the output terminal of the existing valve
• Connect the Red wire to an unused output terminal
• Connect the Blue wire to the existing valve's field wire
