Toro TFS Flow Sensor 1 in. PVC | TFS-100

SKU

TFS-100

Sales Price $369.54 Our Price $595.95 You save 38%

Overview

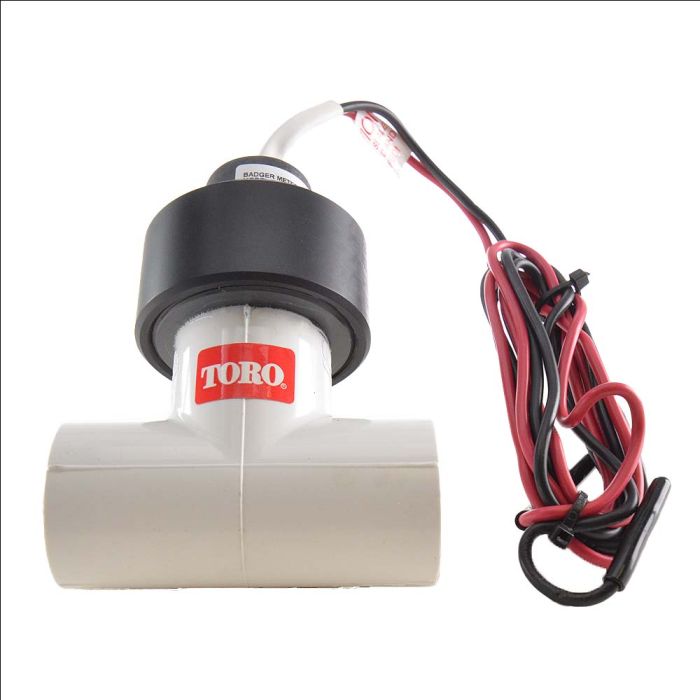

Toro TFS-100 1 in. Flow Sensor

With accurate flow measurement from 1.2 to 500 GPM, the Toro TFS Series flow sensors are yet another cost effective water-savings tool from Toro. These impeller-based PVC flow sensors are available in 7 models from 1/2 in. to 4 in., each with a suggested operating range. The potted electronics are designed for valve box or underground installations making them ideal for virtually any residential, commercial, municipal or sports field application. And better yet, TFS flow sensors are compatible with competitor controllers as well.

Features & Benefits

Effective Flow Monitoring Even In Flows Less Than 5 GPM: Effective in ranges from 1.2 GPM to 500 GPM. Teamed with the Toro TMC-424, 1/2, 3/4 and 1 in. sensors provide a cost-effective flow monitoring and alarm system.
Compatible With Competitive Controllers: In addition to the TORO compatible controllers - TMC- 424, TIS-360/480, Sentinel - and SitePro - these flow sensors work with any controller or control system compatible with frequency output flow sensors (pulses per second proportional to flow velocity).
Simple impeller-based design
Potted electronics designed for valve box or underground applications
Sensor pre-installed in tee
Removable sensor design for easy replacement without removal of tee
Socket end tee
Two-Year Warranty

Suggested Operating Ranges

Toro TFS-050: 1.2 - 12 GPM
Toro TFS-075: 2.7 - 28 GPM
Toro TFS-100: 5 - 50 GPM
Toro TFS-150: 5 - 100 GPM
Toro TFS-200: 10 - 200 GPM

Manuals and Literature

Installation Brochure

Specifications

Output: 2-wire, unscaled pulse - pulse width 5msec +/- 25%
Frequency: 3.2 to 200 Hz
Pressure Rating:
- - 1/2, 3/4 and 1 in. - up to 150 psi
- - 1-1/2, 2, 3 and 4 in. - up to 100 psi
Temperature Rating: Up to 140 degrees F
Flow Range (Velocity):
- - 1/2, 3/4 and 1 in. - 2 - 20 feet per second
- - 1-1/2, 2, 3 and 4 in. - 1/2 - 30 feet per second
Accuracy:
- - 1/2, 3/4 and 1 in. - +/- 3 to 5%
- - 1-1/2, 2, 3 and 4 in. - +/- 1%
Linearity/repeatability:
- - 1/2, 3/4 and 1 in. - ± 1.5%
- - 1-1/2, 2, 3 and 4 in. - ± 0.3%
Tee:
- - 1/2, 3/4 and 1 in. - Schedule 40 PVC
- - 1-1/2, 2, 3 and 4 in. - Schedule 80 PVC
Sensor Housing: Potted, PPS
Impeller:
- - 1/2, 3/4 and 1 in. - 300SST
- - 1-1/2, 2, 3 and 4 in. - Glass-filled nylon
Shaft: Tungsten Carbide
Bearing: UHMWPE
Wires: 18AWG direct burial irrigation wire (solid copper)
