Toro TFS Flow Sensor 3/4 in. PVC | TFS-075

SKU
TFS-075
Sales Price $395.45 Our Price $625.95 You save 37%

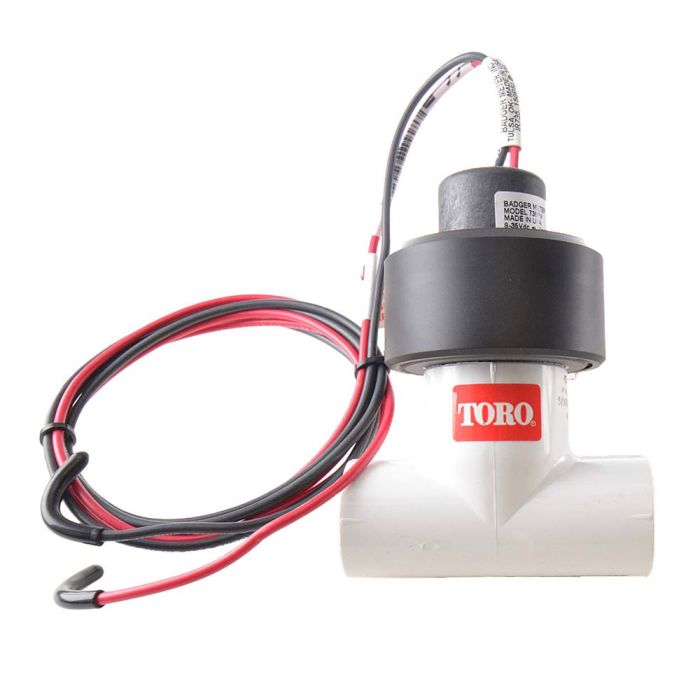

Toro TFS-075 3/4 in. Flow Sensor

With accurate flow measurement from 1.2 to 500 GPM, the Toro TFS Series flow sensors are yet another cost effective water-savings tool from Toro. These impeller-based PVC flow sensors are available in 7 models from 1/2 in. to 4 in., each with a suggested operating range. The potted electronics are designed for valve box or underground installations making them ideal for virtually any residential, commercial, municipal or sports field application. And better yet, TFS flow sensors are compatible with competitor controllers as well.

Features & Benefits

  • Effective Flow Monitoring Even In Flows Less Than 5 GPM: Effective in ranges from 1.2 GPM to 500 GPM. Teamed with the Toro TMC-424, 1/2, 3/4 and 1 in. sensors provide a cost-effective flow monitoring and alarm system.
  • Compatible With Competitive Controllers: In addition to the TORO compatible controllers - TMC- 424, TIS-360/480, Sentinel - and SitePro - these flow sensors work with any controller or control system compatible with frequency output flow sensors (pulses per second proportional to flow velocity).
  • Simple impeller-based design
  • Potted electronics designed for valve box or underground applications
  • Sensor pre-installed in tee
  • Removable sensor design for easy replacement without removal of tee
  • Socket end tee
  • Two-Year Warranty

Suggested Operating Ranges

  • Toro TFS-050: 1.2 - 12 GPM
  • Toro TFS-075: 2.7 - 28 GPM
  • Toro TFS-100: 5 - 50 GPM
  • Toro TFS-150: 5 - 100 GPM
  • Toro TFS-200: 10 - 200 GPM

Manuals and Literature

Installation Brochure

Specifications

  • Output: 2-wire, unscaled pulse - pulse width 5msec +/- 25%
  • Frequency: 3.2 to 200 Hz
  • Pressure Rating:
    • - 1/2, 3/4 and 1 in. - up to 150 psi
    • - 1-1/2, 2, 3 and 4 in. - up to 100 psi
  • Temperature Rating: Up to 140 degrees F
  • Flow Range (Velocity):
    • - 1/2, 3/4 and 1 in. - 2 - 20 feet per second
    • - 1-1/2, 2, 3 and 4 in. - 1/2 - 30 feet per second
  • Accuracy:
    • - 1/2, 3/4 and 1 in. - +/- 3 to 5%
    • - 1-1/2, 2, 3 and 4 in. - +/- 1%
  • Linearity/repeatability:
    • - 1/2, 3/4 and 1 in. - ± 1.5%
    • - 1-1/2, 2, 3 and 4 in. - ± 0.3%
  • Tee:
    • - 1/2, 3/4 and 1 in. - Schedule 40 PVC
    • - 1-1/2, 2, 3 and 4 in. - Schedule 80 PVC
  • Sensor Housing: Potted, PPS
  • Impeller:
    • - 1/2, 3/4 and 1 in. - 300SST
    • - 1-1/2, 2, 3 and 4 in. - Glass-filled nylon
  • Shaft: Tungsten Carbide
  • Bearing: UHMWPE
  • Wires: 18AWG direct burial irrigation wire (solid copper)
More Information
Brand Toro
Product Type Flow Sensors
Flow Yes
Sensor Connection Wired
Warranty 5 Years
