The Sidekick FM Irrigation System Control is ideal for wireless control of irrigation systems with either 12 stations or 24 stations. This system is completely portable; making it ideal for commercial irrigation applications.
It can can be plugged into any 24 VAC irrigation controller that is outfitted with a Permanent Controller Connector (pigtail) or you can use an Alligator Clip Temporary Connector (optional item) which is a temporary connector cable with Alligator clips on one end to connect to the controller station or zone output wires (clip one of each of the alligator clips on each of the station or zone output wires).
If you want to have a remote that works with pretty much any controller you run into, we suggest using this TRC SideKick remote kit along with the optional Alligator Clip Temporary Connector cable. The Alligator Clip Temporary Connector cable has a connector on one end to connect to the SideKick Receiver Unit and the other end has Alligator Clips which are used to connect to each of the Sprinkler System timer output station (zone) wires. This allows you to quickly connect the SideKick Receiver to the Sprinkler system Controller using Alligator Clips instead of having to connect to each zone wire using the screw down connections found on the Sprinkler System Controller station (zone) output wires. The Alligator Clips make the connections very quick and temporary allowing a very fast connection to the irrigation controller when you're first starting the job and very fast disconnect when you are finished with the job.Features and Benefits:

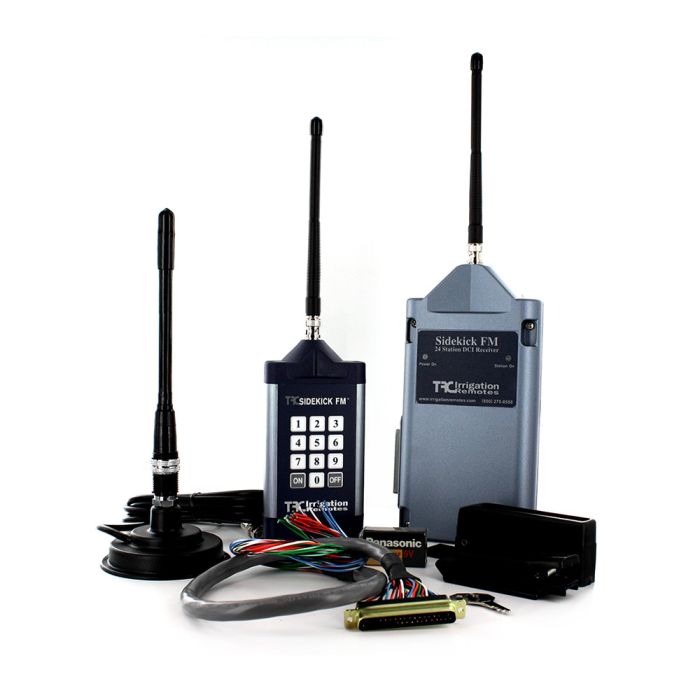

The Sidekick FM System comes in two models. All models come with a Sidekick FM Transmitter; Universal Receiver (12 or 24 station); two 8 in. whip antennas; 9V alkaline battery; and an Operations manual.
1. Sidekick FM 24 System: Also includes carrying case; 24-station permanent controller connector; magnetic mount antenna with coax cable; and FM transmitter belt clip. (Part # 1010)
2. Sidekick FM 12 System:Also includes 12-station front-panel connector (pigtail). (
Sidekick FM 12 System. Part #1015
