TRC 0-1025 Commander 32 Station Sprinkler System Remote Control

The TRC Commander 32-Station System is the only wireless remote irrigation control system that is compatible with all major irrigation controllers. This system is completely portable; making it ideal for commercial irrigation applications.

The Commander Receiver can plug into any 24 VAC irrigation controller that's outfitted with a permanent controller connector (pigtail) or you can use an Alligator Clip Temporary Connector (optional item) which is a temporary connector cable with Alligator clips on one end to connect to the controller station or zone output wires (clip one of each of the 32 alligator clips on each of the station or zone output wires).

Features and Benefits:

• 3 year warranty
• Operates any 24 VAC solenoid valve irrigation system
• Proprietary PDTFM transmission
• Self-resetting fuse in receiver
• Auto-up and auto-back
• Master valve or pump disable
• Simultaneous operation of up to 7 valves and a master Valve
• Controls up to 199 receivers per group code from a single FM transmitter
• 9999 "field programmable" private group codes
• Touchpad control with audible tactile response
• Rugged construction
• Water-resistant
• Audible low battery indicator
• Random access station operation
• 20 minute default shutoff
• Adjustable time duration up to 2 hours per station
• Transmitter is compatible with all permanent receiver cards

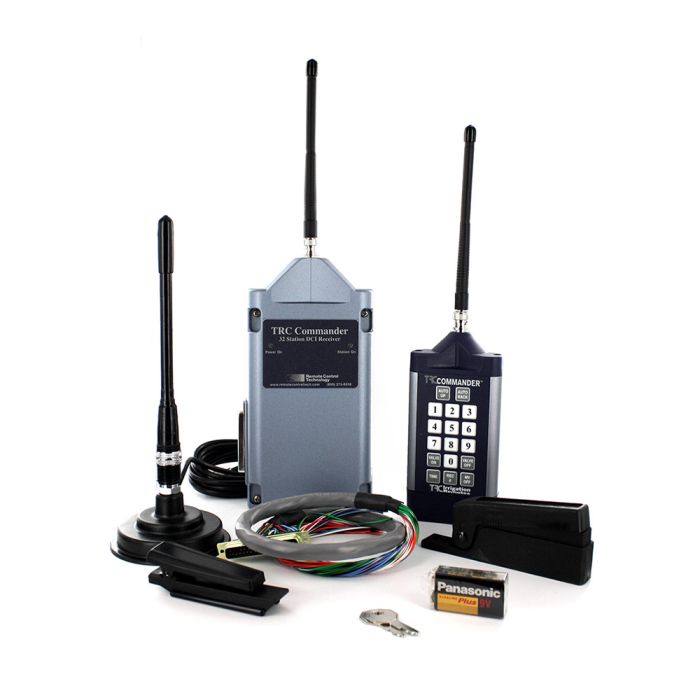

TRC Commander System includes:

• Carrying case
• FM Transmitter; operates at 27 MHz
• Universal 32 station receiver
• 32-station permanent controller connector (pigtail)
• Two 8 in. whip antennas
• One magnetic mount antenna with coax cable
• Transmitter belt clip
• One 9V Alkaline Battery
• Operation Manual
