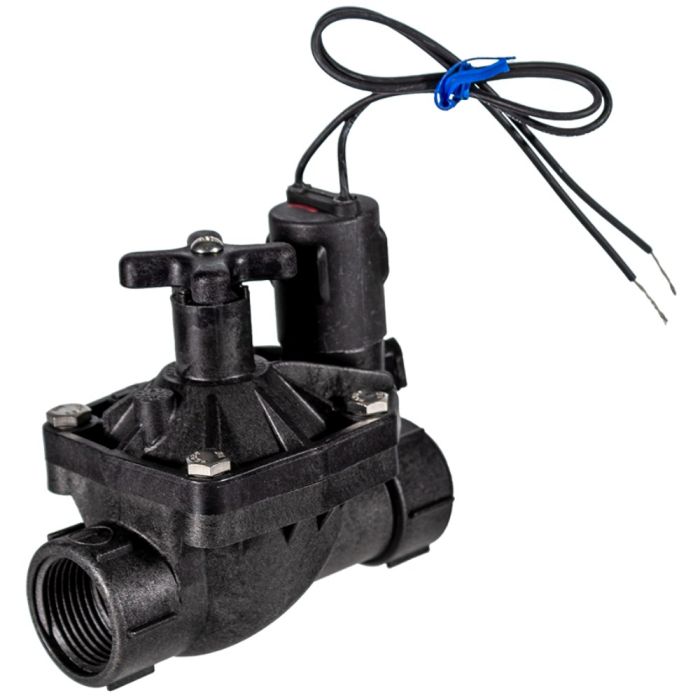

Weathermatic BlackBullet MAX Inline Valve with Flow Control 1 in. FPT | 11024FCR-10D

SKU
11024FCR-10D
Sales Price $100.42 Our Price $213.95 You save 53%

Weathermatic BlackBullet MAX In-Line Valve with Flow Control 1 in. FPT

  • Size: 1 in.
  • Valve Type: In-Line
  • Connection: Female Pipe Thread

Features & Benefits

Dual flexing diaphragm ports provide great contamination resistance in dirty water or reclaimed applications; Fail safe "reverse flow" design insures that the valve will remain closed in the event of wall failure.

  • SUPERIOR MATERIAL
    • Glass-filled nylon construction gives the Black Bullet
      added strength over conventional PVC valves
    • Pick up a Black Bullet in one hand and any other valve
      in the other to feel the difference
  • MULTIPLE-BOLT COVER
    • Stainless steel bolts easily thread in and out of quality brass
      inserts
    • Black Bullet installers will tell you they rarely need to
      open a Weathermatic valve. When you do, it is easy to
      open and easier to close than most valves using screws
      or jar tops that are susceptible to stripping, dirt,
      and grit
  • UNMATCHED MANUAL BLEED
    • Send the Black Bullet into action by simply pulling
      the trigger
    • It’s the easiest, driest internal manual bleed in the
      business that won’t flood the valve box
    • No twisting on a solenoid or bleed screw is required
  • SHOCKING SHOCK CONE
    • The Black Bullet puts the hammer to water hammer by
      incorporating a cone-shaped diaphragm base
    • The shock cone interrupts the water flow more
      gradually than other diaphragms to enable quick valve
      closure without the damaging effect of
      water hammer
  • REVOLUTIONARY REVERSE-FLOW
    DESIGN
    • The Weathermatic hallmark reverse flow design with a 45-
      year track record brings you:
      • Reverse flow design means the valve fails shut rather than
        open in the event of diaphragm failure, unlike conventional
        forward flow valves that fail open
      • Balanced pressure on the diaphragm extends valve life over
        forward flow valves
  • 15 YEAR TRACK RECORD
    • The Black Bullet track record shows less than a fraction of 1%
      return rate over 15+ years of reliable performance
  • AMAZING VALUE FOR THE PRICE!
    • Seasoned installers know that valves are the last place to
      cut expenses when just one call-back eliminates any cost
      savings on the job
  • STANDARD DIRTY WATER OPERATION
    • One valve for both clean and dirty water applications. Self-cleaning
      function is achieved as diaphragm actually flexes
      during operation to send dirt and debris down the line
      without the maintenance worry of filters and screens
  • BEST WARRANTY IN THE BUSINESS
    • Unparalleled 10-Year Warranty provides worry-free
      replacement twice that of any other competitor.

Product Details

  • 10 year warranty and 100% water tested
  • 200 psi (13,8 bar) rating
  • Unique "reverse flow" porting design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure providing zero stress to prevent "stretching," a common cause of valve failure
  • Reverse flow design for water conservation in the event of failure
  • Diaphragm's self cleaning ports constantly flex, inhibiting sand and silt from blocking valve action
  • Brass shock cone for smooth operation and reduction of water hammer
  • Easy-to-use internal manual bleed lever; bleeds valve downstream; has stops for open and closed positions
  • Marine-grade S20P solenoid with stainless steel actuator
  • High-strength glass-filled body and cover with 1/4" stainless steel cover bolts and mating brass body inserts
  • Brass non-rising flow control stem throttles valve from full open to closed position
  • Excellent for low volume irrigation
  • Contamination-resistant (CR)
  • Chlorine- and chloramine-resistant EPDM diaphragm material
  • XPR Pressure Regulator-the Weathermatic XPR pressure regulating module senses inlet pressure and maintains constant outlet pressure (see PRK-24 in valve accessory section for specifications)
  • Non-potable alert flow handle may be substituted for the standard flow handle. Add -NP suffix.
  • Wiring requires a single lead from the controller to each solenoid, plus a common neutral to all solenoids; type UF wire, U.L. listed, is recommended for all hookups:
  • 24VAC/60Hz
    • Inrush: 9.48 VA
    • Holding: 5.69 VA
  • 24VAC/50Hz
    • Inrush: 10.7 VA
    • Holding: 7.5 VA
  • Do not use nominal voltage ratings listed above for sizing of valve wire
  1. WEATHERMATIC 1100CR SERIES REMOTE CONTROL VALVE
  2. INSTALL THREADS MALE ADAPTER WITH TEFLON TAPE/TYP
  3. SOLENOID
  4. MANUAL BLEED LEVER
  5. 3/4 INCH GRAVEL SUPPORTER
  6. RECTANGULAR VALVE BOX
  7. EXPANSION COIL & WATERPROOF CONNECTOR
More Information
Brand Weathermatic
Product Type Inline Valves
Body Material Glass-Filled Plastic
Flow Control Flow Control
Valve Type In-Line
Connection FPT
Application Residential and Commercial
Solenoid Yes
Warranty 10 Years
Size 1 in.
Manual (1.16 MB)
Tech Specs (446.97 kB)
