main product photo

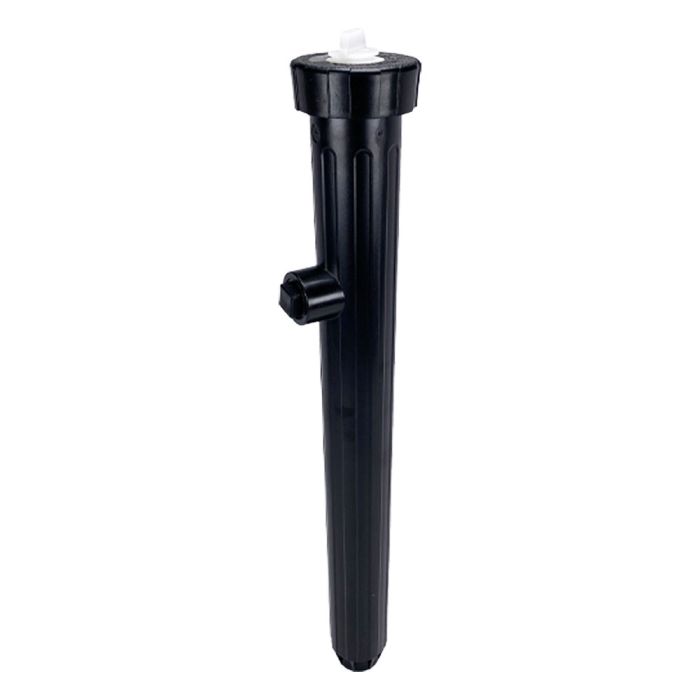

Weathermatic MAXSpray Spray Head with Check Valve 12 in. | MAX12-CV

SKU
MAX12-CV
Sales Price $10.03 Our Price $15.95 You save 37%
Add to Project Add to Favorites Compare

Note: Some States Require Pressure Regulating Sprays (PRS) All spray sprinkler bodies sold in the following states will require pressure regulating stems (PRS) and EPA WaterSense certification on and after the dates listed below: Vermont: July 1, 2020 California: October 1, 2020 Colorado: January 1, 2021 Hawaii: January 1, 2021 Washington: January 1, 2021 Massachusetts: January 1, 2022 Washington, D.C.: March 15, 2022

Weathermatic MAXSpray Spray Head with Check Valve

  • Pop-Up Height: 12 in.
  • No Pressure Regulation
  • Nozzle Installed: No Nozzle (Flush Plug Only)

Features & Benefits

MAX SEAL

  • Industry-first dual pressure-activated seal with 720 degrees sealing surface around flow tube stem, cap, and the body eliminates stick-ups and cap to body leaks
  • Industry-standard white Santoprene seal for ultimate performance

MAX SPRING

  • Industry’s strongest spring for positive retraction
  • Corrosion-resistant stainless steel material for long life
  • Unique reversible spring design can be installed in either direction for simple, fast field assembly

MAX SELF-CLEANING CHECK VALVE

  • Enhanced debris resistance through the expanded surface area
  • Tapered design for self-cleaning operation
  • Positive seal even in dirty water environment

MAX PRESSURE REGULATION

  • Reduces water consumption by up to 50%
  • Eliminates wasted water caused by high pressure – no misting and fogging
  • Optimizes outlet pressure for consistent performance, even with pressure variations

MAX LEVEL CAP

  • Flat cap and easy pull up, low profile flush plug for sprinkler leveling
  • Superior labeling process allows better identification and customization

MAX NOZZLE OPTIONS

  • Compatible with all industry-standard female thread nozzles

Product Details

  • Flush Plug has a low profile design for easy pull-up and level installation
  • The flat cap allows for level installation and customized labeling
  • Industry-standard white Santoprene material and a Dual Pressure Activated design for a first in the industry stem AND cap seal
  • Innovative non-slip two-piece ratchet ring for easy adjustment even when wet.
  • Ultra-low flushing enables 5 PSI sealing
  • Compatible with all industry-standard female thread nozzles
  • 5-Year Trade Warranty
More Information
Brand Weathermatic
Product Type Spray Heads
Nozzle Connection Female Nozzles
Side Inlet Side Inlet
Inlet Size 1/2 in.
Spray Body Height (in.) 15 - 1/4 in.
Check Valve Check Valve
Nozzle Installed No Nozzle (Flush Plug Only)
Spray Head Wiper Seal Yes
Pressure Regulation No Pressure Regulation
Application Residential and Commercial
Warranty 5 Years
Pop-Up Height 12 in.
