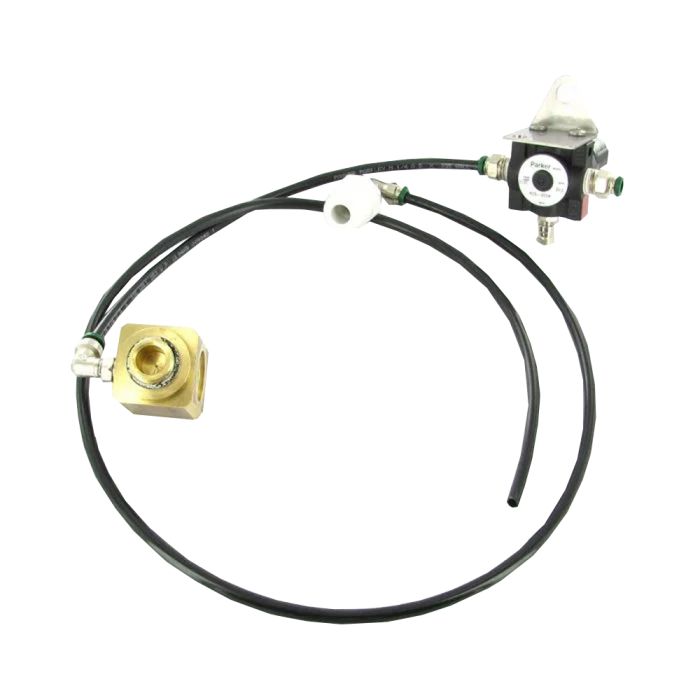

Weathermatic Pressure Regulator Kit | PRK-24

• Brand: Weathermatic
• Type: Pressure Regulator Kit

Features & Benefits

• The Weathermatic PRK-24 (XPR) pressure regulating module senses inlet pressure and maintains constant outlet pressure regardless of inlet pressure variation.
• Manual flow and bleed control
• Regulates pressure when the valve is operated electrically or manually
• Downstream connection for accurate pressure sensing
• Schrader valve for connecting pressure gauge

Product Details

• Maximum inlet pressure: 150 psi (10,3 bar)
• The minimum pressure differential between inlet and outlet: 10 psi (0,7 bar)
• Regulated pressure range at outlet: 15 110 psi (5 psi) 1,0,7,6 bar (0,35 bar)

The PRK-24 (XPR*) may be used with any of the following valves:

• 8200CR Series
• 11000CR Series
• 21000 Series
