Designed for installation on potable water lines to protect against backsiphonage of contaminated water into the potable water supply. Assembly shall provide protection where a potential health hazard exists.Features / Benefits

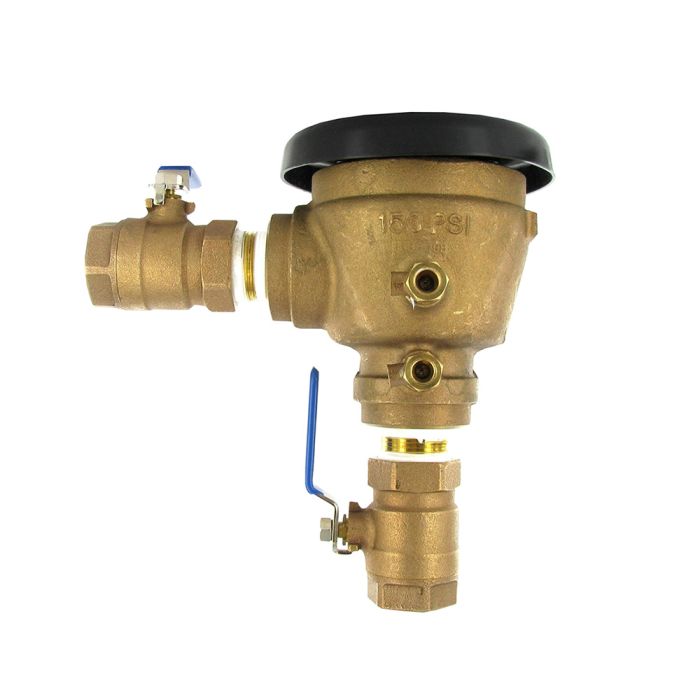

Brass PVB Pressure Vacuum Breaker assembly. Includes: Ball valves (2) and test petcocks. Meets all state and federal requirements pertaining to PVB devices. Designed to Prevent Contaminated / Hazardous Water from getting back into your Drinking Water.
Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted at a minimum of 12" (305mm) above the highest piping or outlet downstream of the device. Install with adequate drain and sufficient side clearance for testing and maintenance. The installation shall be made so that no part of the unit can be submerged. A pressure vacuum breaker cannot be installed where back-pressure could occur or where spillage of water from vent could cause damage.Dimensions
7-3/4" X 4-5/8" X 4-3/4" X 2-5/8"
|Test Cocks||2 FEMALE|
|Max Working Pressure||150 PSI|
|Hydrostatic Test Pressure||300 PSI|
|Temperature Range||32F to 110F|
|Main Valve Body Materials||Bronze|
|Lead Free||Not Lead Free|
