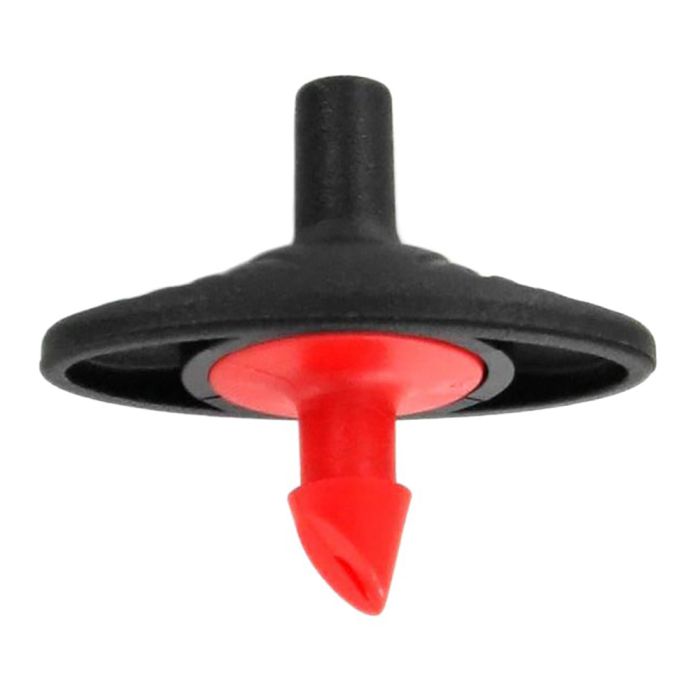

Antelco 0.5 GPH Pinch Drip Emitter | A30705

• Operating PSI: 5 - 50 PSI
• Flow Rate: 0.5 GPH
• Type: Pinch Drip Emitters

Features & Benefits

A Pressure Compensating (PC) dripper with a sealed turbulent flow path and diaphragm to maintain uniform flow rates over a wide range of operating pressures. Low profile design to minimize the risk of dislodgement from supply tubing and ergonomic finger grips for ease of installation.

• Registered design
• Turbulent flow path and self-flushing action with insect baffle to minimize blockages
• Inlet barb has a built-in filter
• Outlet suitable for attaching 0.16" microtube
• UV stabilized materials for long life
• For pots, patios, and landscape applications

Product Details

• Low manufacturing coefficient of variation (Cv) to provide high performance
  (conforms to ISO 9261).
• Three color-coded flow rates: 1/2 gph, 1 gph & 2 gph.
• Self-flushing cleaning action at low pressures.
• Insect baffle to minimize blockages.
• Self-piercing inlet barb has a built-in filter to minimize the risk of blockages.
