Armada Technologies PRO-290 Wire Locator
-
Type: Valve Locator
- Depth – Up to 4 feet deep
- Batteries – 8 “C” (transmitter) and 1 9-volt (not included)
Features & Benefits

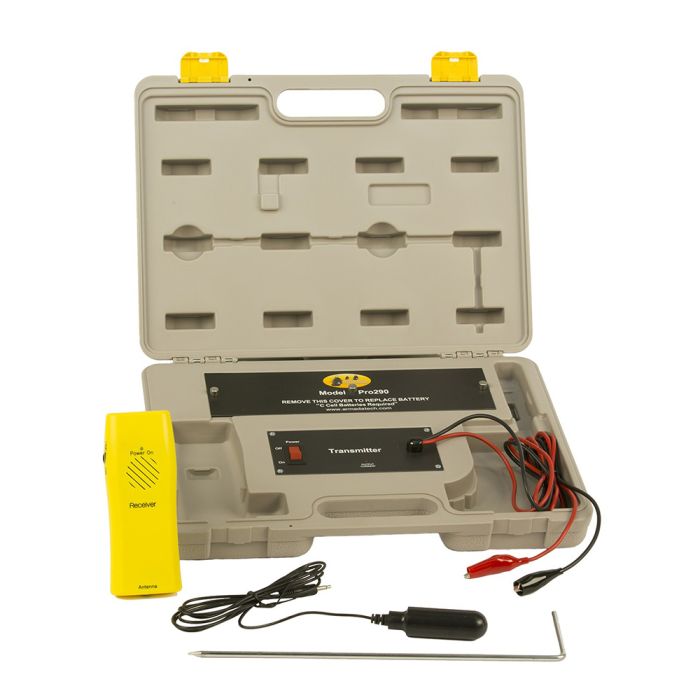

The unique Pro290 Cable and Wire Locator is a great tool for contractors tracing underground cables like CATV and telephony drop wires. The Pro290 consists of a transmitter
and receiver and uses a limited power output to match sensitive electrical equipment. The
Pro290 uses an easy to track 33 kHz frequency, and sets up in less than a minute.
Simply connect the Pro290 to the wire to be tracked and to the ground stake in dirt, get a
good ground indication, and track the beeps with the hand held receiver. It’s that easy.
Finding breaks in wires is easy too. When tracking a wire path, the signal will end when the
path ends. This could be the end of the cable or wire but additionally, can indicate where a
wire has been cut.
- Tracks Underground Wires Including CATV, Telephony, etc.
- Ground Condition LED
- Range to 1,000 feet
- Depth to 4 feet
- Receiver Volume Control
- Standard 33 kHz Tracking Signal
- Ground Stake Included
- Transmitter Automatic Off Switch
- Uses 8 ‘C’ Batteries and one 9 volt (not included)
Product Details
- Power Requirements: Transmitter – (8) ‘C’ batteries; Receiver – (1) 9V battery
- Battery Life: Transmitter 200 hours; Receiver 25 hours
- Transmitter Frequency: 33 kHz
- Transmitter Power: 100 mw @ 1K Ohms
- Weight: 4 pounds with case
- Warranty: 12 Months
- Box Contents: Transmitter, Receiver, Ground Stake and Antenna
- Range: Up to 1,000 feet
- Depth: Up to 4 feet deep
- Power Output – 100 mw into 1K Ohms
- Frequency – 33Khz
- Weight – 3.5 pounds (complete kit)
- Batteries – 8 “C” (transmitter) and 1 9-volt (not included)
- Distance – Up to 1,000 feet
- Depth – Up to 4 feet deep
- Warranty – 12 months
