Conbraco 36C-100 25 - 75 PSI Pressure Regulator 1 in. MPT x Union | CDC36C-105-01

In stock
SKU
CDC36C-105-01
Free Shipping on Orders over $149
Sales Price $96.55 Our Price $179.55 You save 46%

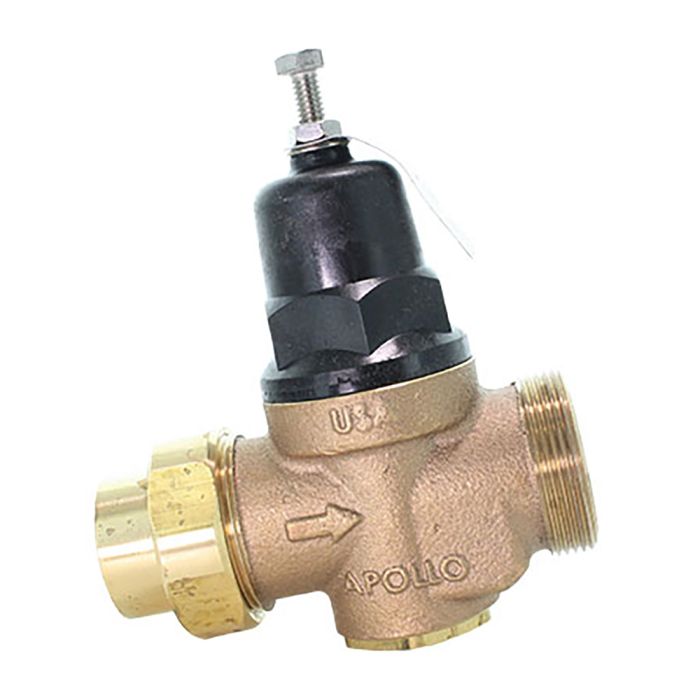

Conbraco 36C-100 25 - 75 PSI Pressure Regulator 1 in. MPT x Union

  • Size: 1 in.
  • Flow Rate: 45 GPM
  • Connection: MPT x Union

Features & Benefits

The Apollo Model PR ( 36 Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer. The PRC is designed to reduce the pressures up to 400 PSI to a more functional level within its adjustment range. The Standard PRC is factory set at 50 psi outlet pressure and is adjustable from 25 to 75 psi.

  • Corrosion Resistant Sealed Body and Bonnet
  • Pressure Gauge Connection Option
  • 100% Factory Tested
  • Integral SS Strainer
  • Balanced Piston Design
  • Internal Thermal Expansion By-Pass
  • Standard Pressure Setting: 50 psi
  • High and Low-Pressure Options
  • Multiple Connections Types
  • 100% Manufactured in the USA

Product Details

Performance Rating

Maximum Supply Pressure up to 300 psi Temperature Range 33F  180F Maximum Set Pressure: 125 psi

Operations

The PRC is designed to reduce the pressures up to 400 PSI to a more functional level within it adjustment range. The Standard PRC is factory set at 50 psi outlet pressure and is adjustable from 25 to 75 psi. To increase the set pressure, loosen the locknut and turn the adjusting screw clockwise. To decrease the set pressure, turn the adjusting screw counterclockwise. Re-tighten the locknut. Allow for some fall-off from the set pressure during flow conditions.

Approvals

ASSE 1013 - Horizontal (2"), U & Z (1") CSA B.64.4 - Horizontal (2")

Materials

Part Name Material
Body, Covers Bronze ASTM B584
Diaphragm FDA Grade Buna with polyester
Seat Disc FDA Grade EPDM
Stem Brass, ASTM B-16
Springs Stainless Steel
O-Rings FDA approved Nitrile
Brand:
Conbraco
Flow Rate:
45 GPM
Color:
Brass
Type:
Inline Pressure Regulator
Size:
1 in.
PSI:
25 - 75 PSI
Connection:
MPT x Union
Specifications (211.02 kB)
