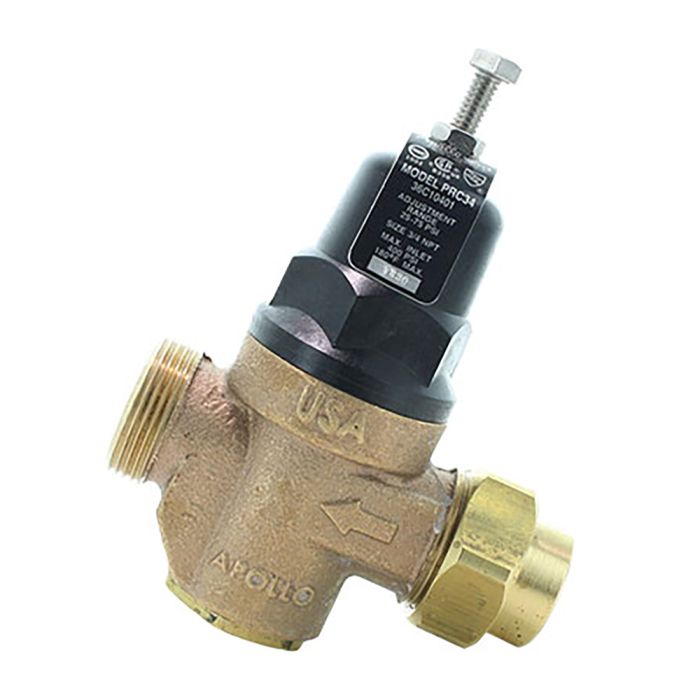

The Apollo Model PR ( 36 Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer. The PRC is designed to reduce the pressures up to 400 PSI to a more functional level within its adjustment range. The Standard PRC is factory set at 50 psi outlet pressure and is adjustable from 25 to 75 psi.
Maximum Supply Pressure up to 300 psi Temperature Range 33F 180F Maximum Set Pressure: 125 psi
The PRC is designed to reduce the pressures up to 400 PSI to a more functional level within it adjustment range. The Standard PRC is factory set at 50 psi outlet pressure and is adjustable from 25 to 75 psi. To increase the set pressure, loosen the locknut and turn the adjusting screw clockwise. To decrease the set pressure, turn the adjusting screw counterclockwise. Re-tighten the locknut. Allow for some fall-off from the set pressure during flow conditions.
ASSE 1013 - Horizontal (2"), U & Z (1") CSA B.64.4 - Horizontal (2")
|Body, Covers||Bronze ASTM B584|
|Diaphragm||FDA Grade Buna with polyester|
|Seat Disc||FDA Grade EPDM|
|Stem||Brass, ASTM B-16|
|O-Rings||FDA approved Nitrile|
|PSI||25 - 75 PSI|
|Flow Rate||30 GPM|
|Type||Inline Pressure Regulator|
|Connection||MPT x Union|
