Conbraco 4A-500 Freeze Resistant PVB Backflow Preventer 1-1/4 in. FPT | CDC4A-506-A2F

SKU

CDC4A-506-A2F

Overview

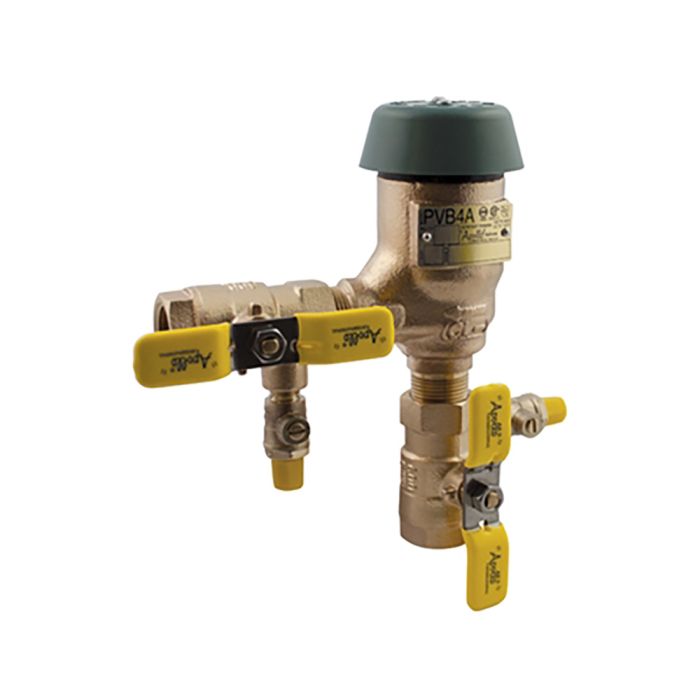

Conbraco 4A-506-A2F 1-1/4 in. Freeze Resistant PVB Backflow Preventer

The Apollo Model PVB4A and PVBLF4A Pressure Vacuum Breaker A Series prevents contamination of the potable water supply due to backsiphonage. A standard integral freeze protection relief valve serves to reduce the possibility of damage due to intermittent freezing conditions. The modular check valve cartridge provides a captured spring, a replaceable seat, and a reversible silicone seat disc. This assembly features ball valve shutoffs with stainless steel handles and nuts as standard.

Features & Benefits

Low pressure loss documented by independent approval agencies
Built-in freeze resistance feature standard
Easily removable modular check valve cartridge
Captured stainless steel springs
Ball valve shutoffs w/ SS handles & nuts standard
Test cocks located for easy draining
Corrosion resistant
No special tools required
Unique canopy detachment
Conbraco Industries, Inc. continues to operate as Apollo Valves
Vertical up / Horizontal installation

Specifications & Performance Rating

Maximum Operating Pressure: 150 psi
Temperature Range: 33 F 140 F

Approvals

ASSE 1020
CSA B.64.1.2
IAPMO
Approved by the Foundation for CrossConnection Control and Hydraulic Research at the University of Southern California (1/2 - 2 in. non-lead free only)

Specs

More Information
Brand	Conbraco
Test Cocks	2 FEMALE
Max Working Pressure	150 PSI
Hydrostatic Test Pressure	300 PSI
Temperature Range	33F to 180F
Main Valve Body Materials	Bronze
Elastomers	Silicone
Springs	Stainless Steel
Advance Features	Freeze Resistant
Warranty	5 Years
Size	1-1/4 in.
Connection	FPT
Lead Free	Not Lead Free
