DIG 0.8 GPH Ocean Breeze Large Misting Kit | BC380

SKU

BC380

Sales Price $32.85 Our Price $38.95 You save 16%

Overview

DIG 0.8 GPH Ocean Breeze Large Misting Kit

Size: 3/4 in.
Operating PSI: 40 - 80 PSI
Purpose: Patios, Pool Sides, Gazebos, Campsites, Greenhouses, Nurseries, Outdoor Work Areas
Includes 10 0.8 GPH barbed micro fogger emitters

Features & Benefits

DIG’s Ocean Breeze® Large Evaporative Mist Cooling Kit is ideal for use through the hot summer months to cool patios, poolsides, mobile home yards, gazebos, campsites, greenhouses, nurseries, and outdoor work areas. It can reduce the air temperature by up to 20°; the hotter and drier the air, the more noticeable the cooling effect. The kit contains 50’ of 3/8” beige poly pipe, 10 .8-GPH foggers, and all of the other components needed to install the system.

The BC380 Ocean Breeze® Large Evaporative Mist Cooling Kit operates at the pressure normally found in homes, without the need for expensive pumps, creating micro-sized water droplets to maximize the cooling effect. By increasing the moisture content of the surrounding air, the kit can dramatically reduce the air temperature.

Product Details

Significantly reduces air temperature
Water evaporates instantly; no muddy accumulation
Provides micro-sized droplets to maximize the cooling and humidifying effect
Enough line for a 50’ run to cover 100 sq ft; easily expandable
Contains 10 .8-GPH foggers with barbs
Three-part fogger, easy to open and clean
Easily expandable up to 400 sq ft using additional foggers and misting-line pipe
Made with UV-resistant, durable plastic material to protect the system from thermal degradation
Operating pressure: 40 to 80 PSI
Fogger flow rate: .8 GPH @ 50 PSI
Recommended spacing for best cooling effect: every 3' to 4'
Recommended installation height: 8' to 12' above ground
Covers up to 100 sq ft; expandable up to 400 sq ft
Misting line pipe length: 50' in beige color
Misting line pipe diameter: 3/8"

To add more emitters to your line, use 0.8 GPH Micro Fogger barbed misting emitters.

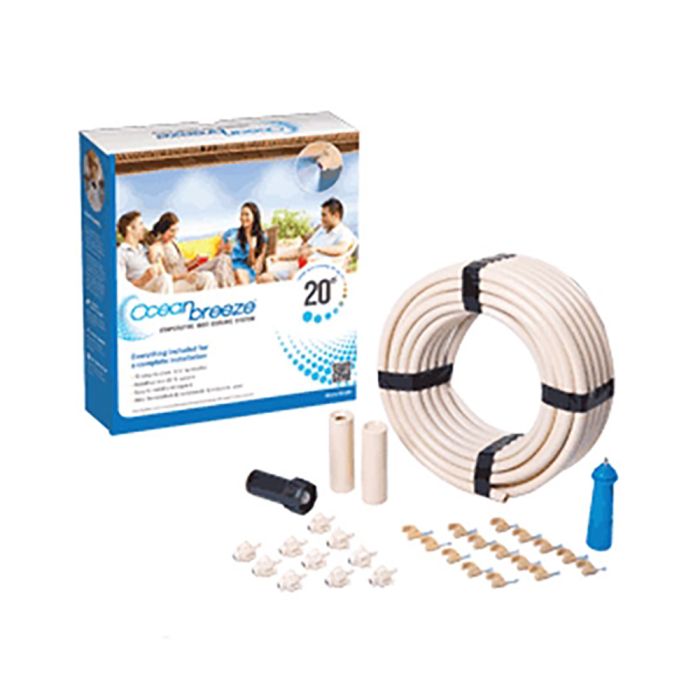

Box Contents

QTY	Description
10	0.8 GPH misting nozzles
1	50' of 3/8" misting line
1	faucet connector
1	screen
15	"C" clamps
1	line connector
1	line end
1	Installation instructions

Start the kit from a faucet or garden hose

To create your own microclimate, follow these step-by-step instructions, then sit back and enjoy the cooling comfort of an Ocean Breeze.

Place the screen inside the 3/4″ swivel faucet connector and attach it to the water source. If water quality is a concern, we highly recommend using a fine mesh 3/4″ filter (model D57A), not included with this kit.
Insert the end of the misting-line pipe into the faucet connector for about 1/2″ to 5/8″ by pushing and wiggling the pipe inward and applying some force.
Layout the misting-line pipe at a height of 8′ to 12′ above the area and use the “C” clamps included in the kit every 2′ to 3′, securing the misting-line pipe to the structure.
At the location where the first fogger is to be placed, use the punch tool to create a hole in the misting-line pipe at a 90° to 120° angle to the ground.
Insert the barbed end of the fogger into the hole. Continue using the same method to install each of the remaining foggers.
Turn the water on to flush the line and then use the misting-line end to close the end of the misting-line pipe.
Turn the water on again and test the system making sure that each fogger is operating correctly.
To automate this kit, install a misting timer that can operate for a limited time through the day and includes a short cycle.

Videos

Specs

More Information
Brand	DIG
Product Type	Drip Irrigation Kits
Operating PSI	40 - 80 PSI
Purpose	Patios, Pool Sides,Gazebos, Campsites, Greenhouses, Nurseries, Outdoor Work Areas
Tubing Size	1/2"
Warranty	3 Years
Size	3/4 in.
Flow Rate	0.8 GPH
Length	50 in.
Connection	FHT
