0.8 GPH Micro Fogger 1/4 in. (5 ct.) | 07-044-B05

In stock
SKU
07-044-B05
Free Shipping on Orders over $149
Sales Price $6.95 Our Price $11.55 You save 40%

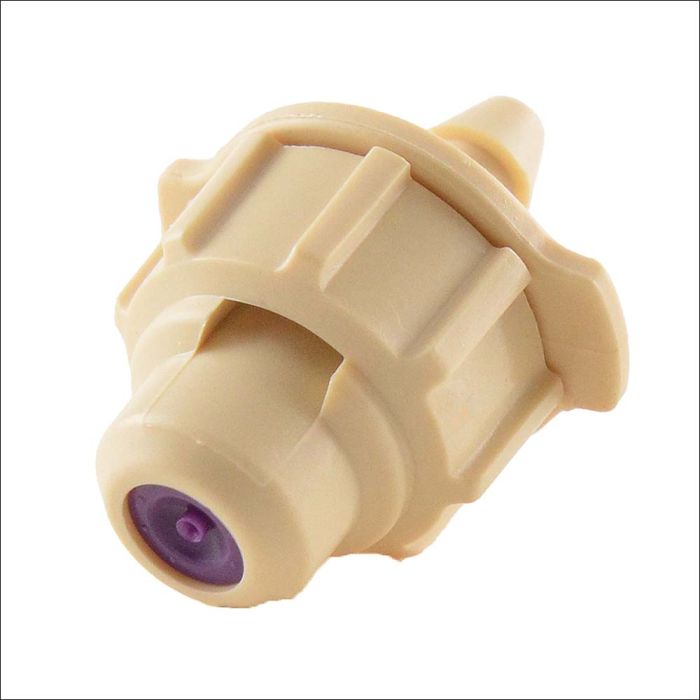

0.8 GPH Micro Fogger 1/4 in.

  • Per Bag: 5 ct.
  • Size: 1/4 in.
  • Flow Rate: 0.8 GPH

Features & Benefits

Full circle foggers that can operate in a wide pressure range of 40 to80 PSI with flow rates of .7 to .8 GPH. The foggers can create a cooling effect; often up to a 20 drop in temperature is achieved with this system, depending on the surrounding humidity. Use this system for the cooling of animals, people, and plants. We recommend installing the misting nozzles 8' to 10' above the ground with 3' to 4' spacing for maximum cooling effect.

Product Details

  • Incorporates a vortex design, which spins the water droplets into a fine mist
  • Modular, lightweight, and easy to install, maintain and configure
  • Designed without a bridge to prevent dripping
  • Three-part construction with "O" ring for a tight seal
  • Flow Rates: .8-3 GPH
  • Operating Pressure: 35-80 PSI
  • Wetting Diameter: up to 4'
  • Trajectory: 80-100 degrees
  • Available with 1/2" MNPT thread or 1/4" barbed side outlet
  • Average Droplet Size: 60-100 microns
  • Filter Requirement: 200 Mesh
  • Body: Polyacetal
  • "O" Ring: Buna-N

Dimensions

  • 1.3″ W x 2.3″ H (3.3 cm W x 5.8 mm H)

How to Specify

Model Description Color
07-044 0.8 GPH with barb Purple
07-045 1.0 GPH with barb Black
07-046 1.5 GPH with barb Green
07-047 0.8 GPH on 10/32″ thread Purple
07-048 1.0 GPH on 10/32″ thread Black
07-052 2.0 GPH with barb  Brown
07-054 3.0 GPH on 10/32″ thread Gray
More Information
Brand Multi
Warranty 3 Years
Size 1/4 in.
Flow Rate 0.8 GPH
Type Micro Foggers
Specifications (195.40 kB)
