DIG 1/2 in. Black Polyethylene Tubing (.615 ID x .710 OD) (60 PSI) (500 ft.) | 31-012

In stock
SKU
31-012
Free Shipping on Orders over $149
Sales Price $75.95 Our Price $94.99 You save 20%

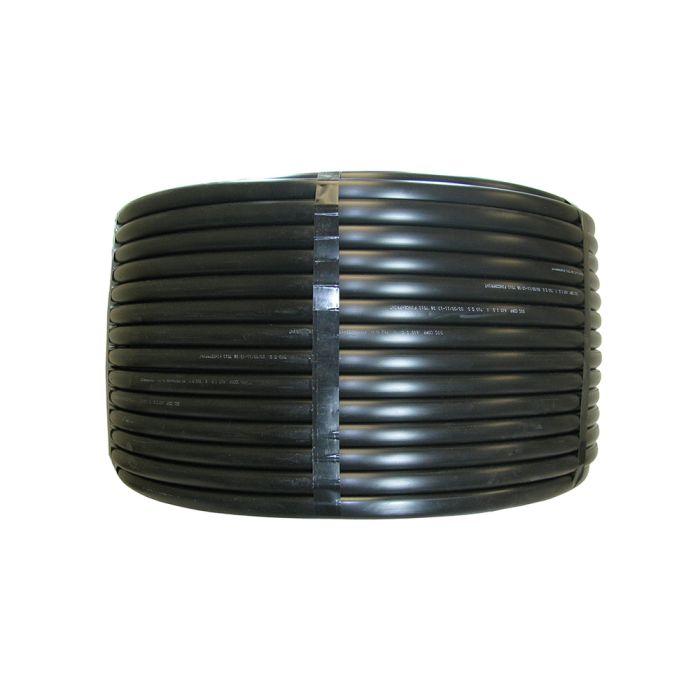

DIG 1/2 in. Black Polyethylene Tubing

  • Dimensions: (.615 ID x .710 OD)
  • PSI: 60
  • Length: 500 ft

Features & Benefits

DIGs premium quality 1/2" Black Polyethylene Tubing (.615 ID x .710 OD) is available in lengths 500'. The .710 OD drip tubing has a leaner wall thickness of .45 wall and used with DIG and other blue insert compression fittings and DIG Nut lock fittings. The poly drip tubing commonly referred to as drip irrigation tubing, blank tubing, distribution tubing. PE tubing or drip hose is used as the primary drip irrigation installation supply line, into which micro tubing, drip emitters, drip line, or micro sprinklers are attached to deliver water to the plant areas.

DIGs durable drip irrigation tubing is made with Dow 7510, low-density polyethylene resin material with a minimum of 2%+ Carbon Black for extra resistance to the damaging effects of ultraviolet rays. DIG poly drip tubing exhibits a combination of outstanding environmental stress-cracking resistance and burst strength to meet every demand of drip irrigation system installations above or below grade.

The 1/4" poly micro tubing is used as the feeder line from the 1/2" drip tubing to the plant area or plant locations. At the end of the micro tubing, a drip emitter, micro sprayer, 1/4 dripline or micro-sprinkler can be added. Like the 1/2" drip tubing, the micro tubing is suitable for any commercial or residential application. The micro tubing may be installed above the ground and covered with mulch to blend with the landscape, or extended from the 1/2" drip tubing and installed below the ground. The micro tubing may also be used as the sole supply line for a small complete system for containers and potted patio gardens.

Product Details

Installation

Using the micro tubing as a feeder line:

  1. To connect the micro tubing to the 1/2" drip tubing, first force a 1/4" barb or 1/4" tee (model H80A or H80B for barb and model H82A or H82B for 1/4" tee) into the end of the micro tubing, then use the punch (model D44) to make a hole in the drip tubing.
  2. Insert the barb into the hole in the drip tubing. Use the micro tubing as a feeder line to reach a plant or cluster of plants away from the drip tubing and install a drip emitter, micro-sprinkler, or micro sprayer at the end of the micro tubing.

Using the micro tubing as a basis for a complete system:

  1. Connect the 1/4 poly micro tubing to the 1/4 hose thread adapter [model C37B] by forcing the end of the micro tubing into the compression side of the adapter while moving the tubing from side to side.
  2. Uncoil the micro tubing and lay it out adjacent to the plants to be irrigated.
  3. Near each plant or container, cut the tubing and install a 1/4 tee (#H82A) or in-line dripper (#WL110B).
  4. Connect another length of 1/4 micro tubing to the side outlet of the 1/4" tee and extend it out to the plant or container.
  5. Open the supply valve momentarily and flush out the line[s] and then install a dripper (or other emission devices) at the end of the micro-tubing.
  6. Secure the dripper in place by installing a stabilizer stake (#P39B) to the micro tubing next to the dripper.
More Information
Brand DIG
Inner Diameter .615 in.
Outer Diameter .710 in.
Type Poly Tubing
Purpose Or Function Poly Supply
Warranty 7 Years
Size 1/2 in.
Specifications (472.36 kB)
