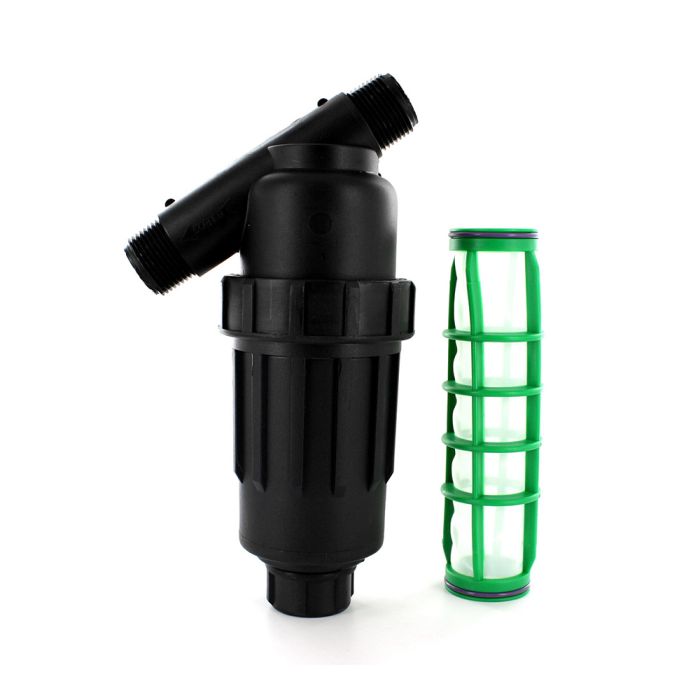

DIG 155 Mesh Polyester Screen Filter 3/4 in. | P10-155

• Connection: 3/4 in. MNPT
• Flow Capacity: up to 18 GPM
• Max Temperature (°F): up to 130

Features & Benefits

Use for residential and commercial applications. The filter has a pressure rating of up to 120 PSI. Simple and easy to operate, the filters provide reliable, low-maintenance filtration for trouble-free operation.

• All-purpose filter with a wide range of polyester and stainless-steel screens from 80 to 200 mesh to suit a wide range of filtration requirements
• Screens have excellent resistance to most common chemicals
• Color-coded replacement screens for easy identification
• Large filter area and low friction loss allow long intervals between cleaning
• Available with a flush cap or flush valve for easy flushing of particles trapped in the bottom of the filter
• Recommended to be installed and used after the control valve
• Easy maintenance – the screen can be extracted from the filter for easy cleaning
• Interchangeable screen and disc elements
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Product Details

• Operating pressure: up to 120 PSI (8.3 BAR)
• Flow rates: up to 18 GPM (4 m3/h)
• Inlet and outlet size: 3/4″ FHT x MHT and 3/4″ or 1″ MNPT
• Temperature range: up to 130°F (54°C)
• Stainless steel and polyester screens from 80 to 200 mesh

Materials

• Housing: polypropylene
• O-ring: EPDM
• Pressure testing port: polypropylene
• Pressure testing seals: natural rubber BR
