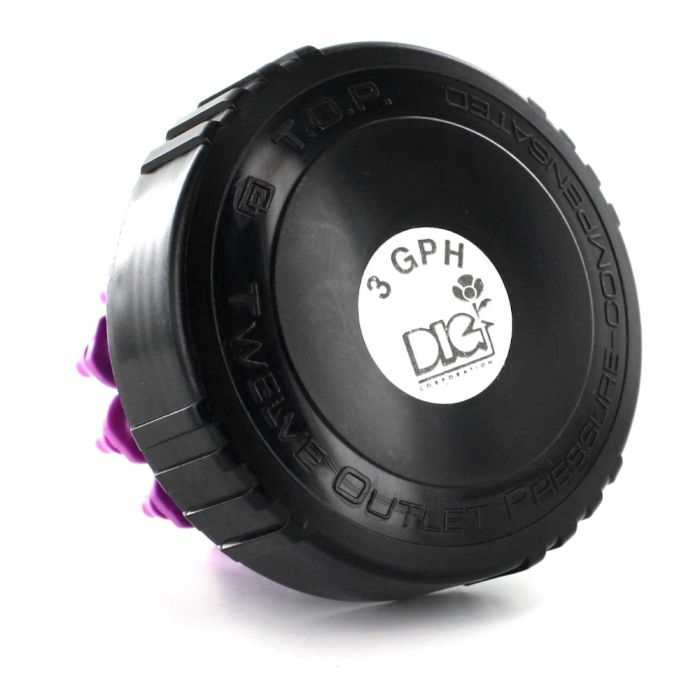

DIG 3.3 GPH 12-Outlet Drip Manifold Kit | TOP-300

The TOP concept is designed for first-time installations or retrofitting an existing sprinkler riser into an efficient 12-Outlet drip irrigation system. The TOP concept utilizes unique self-cleaning, pressure compensating emitters enabling long runs with even water distribution from all outlets.

Features and Benefits

• Constructed with 12 built-in individually pressure compensating drip emitters
• Self-flushing emitters allow passage of water and minimize clogging
• Interchangeable drip emitters for variable flow rates in a single head
• Color-coded drip emitters and barbs easily identify flow rate at each zone
• Drip emitters are individually filtered (approx. 80 mesh)
• Backup mini disc filter
• Rugged materials to withstand the most adverse conditions
• Can be installed above grade or placed below grade in a 6" emitter box
• Inlet plugs provide the option to cap off up to eight drip emitters
• TOP kits contain 100 of 1/8" distribution tubing, accessories, stakes, and 1/4" converter barbs which allow the use of 1/4" distribution tubing

Product Details

• Operating pressure: 15-50 PSI (1-3.4 BAR)
• Pressure compensating range: 8-80 PSI (.5-5.6 BAR)
• Flow rates: .6, 1, 2.2 and 3.3 GPH (2.3, 3.8, 8.3 and 12.5 L/H)
• Inlet size: 1/2" FNPT
• Used with 1/8" (.187" OD) or 1/4" (.150"-.160" ID) distribution tubing
• Filter requirement: minimum of 120 mesh
• Body and cover: high-impact plastic
• Filter: nylon
• Diaphragm: silicon

Measurements

• A - Height: 2"
• B - Width: 3"
