DIG 400A Battery Operated Controller with 1 in. Valve | 400A-100

Free Shipping on Orders over $149
Sales Price $80.72 Our Price $139.95 You save 42%

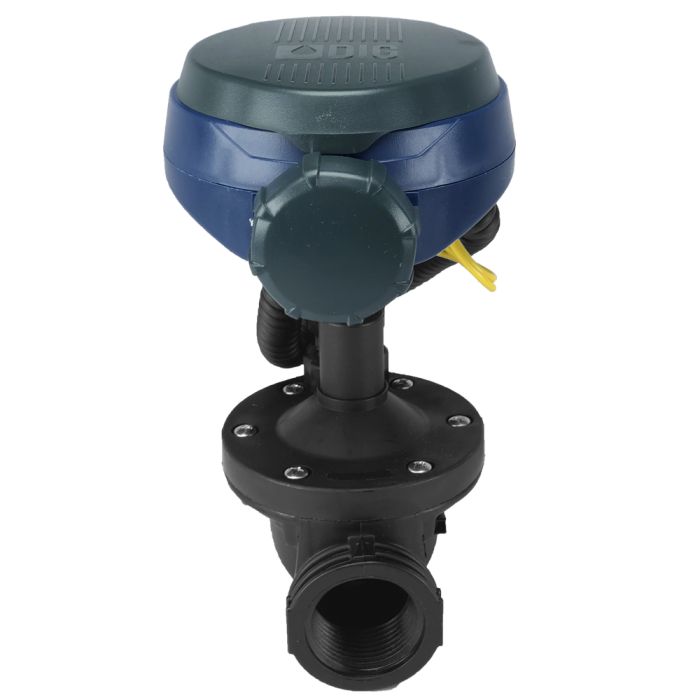

DIG Single Station Battery Controller with 1 in. In-Line Valve

  • DIG 400A Battery Operated Controller (400A-100)
  • Includes a DIG 1 inch In-Line Valve
  • Valve Mounted Controller (DC) Battery Operated (Fixed)

Features & Benefits

A single station, battery powered controller designed for above ground use in situations where electrical power is not readily available. Built to withstand outdoor use this controller is waterproof and durable.

This new generation of Dig controllers are now smaller and more compact than ever before and have a larger display making it easier than ever to program.

  • Up to 3 years of operation from one pair of AA batteries
  • 60 second memory function allows users to replace without losing programming
  • Watering flexibility with a selection of watering frequencies and four start times
  • Seven buttons with integrated high resolution screen
  • Easy to read LCD display with AM/PM clock and icon-based intuitive programming for easy navigation
  • Blinking notification on days the controller is active
  • Programming time options in AM/PM or 24 hour
  • After programming, the controller display indicates if irrigation is set to water for the day and if any of the additional programming features are active
  • Non-volatile memory retains program and controller integrity (excluding time)
  • Emergency backup program of 5 minutes every 24 hours if no program is selected after battery installation starting at 8:AM
  • Manual irrigation cycle can be performed via the controller?s manual program button or via the solenoid
  • One button for Program Off until reactivated or as an irrigation suspension override (rain mode)
  • After fifteen minutes the controller screen is turned off automatically to conserve energy
  • Low battery indicator
  • Semi-automatic, automatic, or manual operation
  • Retractable cord for easy removal of the controller
  • Efficient heavy-duty in-line globe valve with high flow and low pressure loss
  • Rugged, reinforced self-cleaning diaphragm provides reliable operation even with contaminated water
  • Internal bleed via the solenoid for system checkup and testing
  • Available with NPT or BSP threads
  • Latching solenoid with encapsulated plunger and spring for reliable operation
  • Wire ready for a rain sensor
  • Completely waterproof (IP68) - can operate in harsh environments
  • Environmentally friendly - utilizes RoHS compliant components
  • Battery life up to three years
  • Three year warranty

Product Details

    • Type: DC
    • Body: IP68
    • Program mode: seven keypad buttons with integrated liquid crystal display
    • Temperature range: 38°F to +130°F (3°C to +54°C)
    • Power source: two AA alkaline batteries (not included)
    • Latching Solenoid: 7-12 VDC, two-way, normally closed
    • Completely waterproof (IP68 certified) - can operate in harsh environments
    • Solenoid control orifice: .065 (1.65 mm)
    • Encapsulated solenoid thread: 11/16"-12 UN male thread
  • Retractable solenoid wire: 8.1" (coiled length when extended, approximately 36"
  • Sensor connection: normally closed 6" (15 cm) yellow wire (16 AWG)
  • Adapters included to convert Rain Bird, Hunter and Toro valves (model 400-000)
  • Valve type: globe valves 3/4" to 2" (NPT or BSP)
  • Housing: high-impact plastic
  • Solenoid housing: glass reinforced nylon
  • Plunger & spacer: 430F stainless steel
  • Plunger rubber cap: EPDM
  • O-ring: Buna-N
  • RoHS compliant
More Information
Brand DIG
Expandability Fixed
Power Source Battery Operated
Type Battery Operated Controller
Start Times Per Program 4
Max Station Run Time (HRS) 6
Outdoor Yes
Sensor Compatible Rain
Rain Sensor Compatible Yes
Application Light Commercial|Commercial
Warranty 3 Years
Series 400A
Zones 1
Integrated Valve 1 in. In-Line Valve
Enclosure Type Waterproof
Manual (2.87 MB)
