DIG Two-Dial Hose End Timer | B092A

In stock
Free Shipping on Orders over $149
Sales Price $29.65 Our Price $40.92 You save 28%

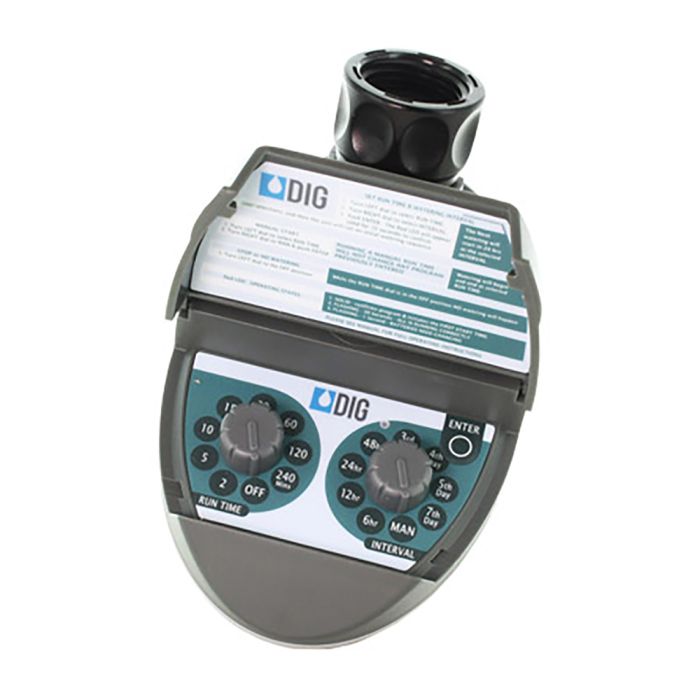

DIG Two-Dial Hose End Timer

  • Zones: 1
  • Expandability: Fixed
  • Application: Residential

Features & Benefits

The B092A 3/4" Two-Dial Hose End Timer has joined DIG's innovative and rugged line of battery-operated controllers and timers, offering simplified programming and improved monitoring of battery power for reliable operation. With a higher flow rate at lower inlet pressures and a range of simple programming features, the B092A delivers a reliable and cost-effective solution for residential uses.

The timer has up to four start times per day with a two-minute to four-hour programming duration and an operating flow range of .1 to 6.3 gallons per minute for use in a wide range of applications, including drip irrigation or micro-sprinkler systems connected to a garden hose or faucet/spigot. It uses one 9-volt alkaline battery that can last for up to one year.

Product Details

  • Eight pre-set watering durations from 2 minutes to 240 minutes
  • Watering frequency: eight watering intervals ranging from every six hours to once per week
  • Frequency Options: Every 6 hrs, 12 hrs, 24 hrs, 48 hrs, Every 3rd Day, Every 4th Day, Every 5th Day, Every 7th Day.
  • Run Time Options: 2, 5, 10, 15, 30, 60, 120 or 240 Minutes.

Battery Installation

  • Hold the timer with the battery compartment facing you.
  • Remove the battery compartment cover, lifting from one side.
  • Connect a 9V battery to the battery connector.
  • Insert the connected battery and press on the battery cover

NOTE: When the battery is first connected, it takes up to 1 minute for the battery indicator to assess the battery strength. When changing the battery, make sure the battery compartment stays dry. USE ONLY 9V ALKALINE BATTERIES.

Power Source:
9V Alkaline Batteries
Start Times Per Program:
Max Station Run Time (HRS):
Hose Timer Type:
3 years
Enclosure Type:
Manual (611.94 kB)
