SW Black up to 18 GPM 30 PSI Hose Bib Connection Kit 3/4 in. FHT x MNPT | SWB09D

Free Shipping on Orders over $149
Sales Price $54.61 Our Price $98.70 You save 45%

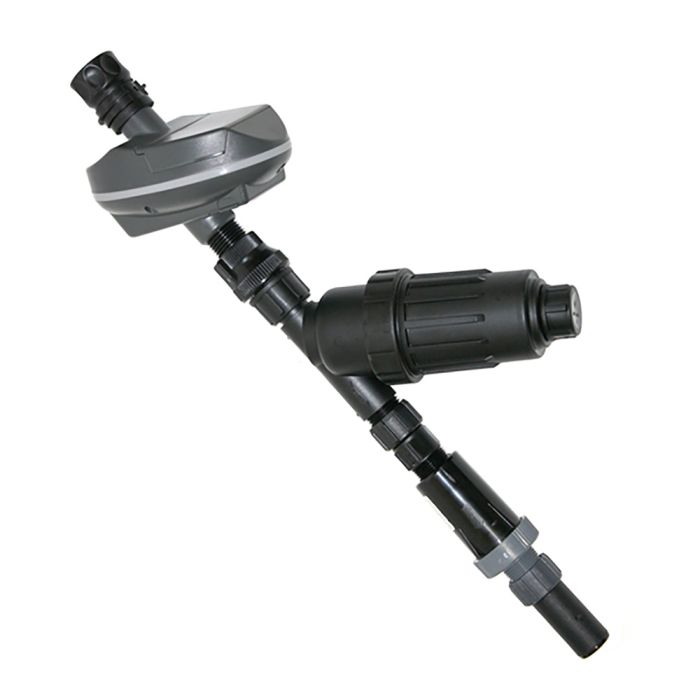

SW Black up to 18 GPM 30 PSI Hose Bib Connection Kit 3/4 in. FHT x MNPT

  • Size: 3/4 in.
  • Connection: FHT x MNPT
  • Type: Hose Bib Connection Kit

Features & Benefits

This Hose Bib Kit includes a Hose End LCD Timer, a backflow device, "Y" filter with 155 mesh polyester screen, a 30 PSI preset pressure regulator, and a 3/4" in. FHT swivel adapter. This kit can be connected to 1/2" in. drip line or poly pipe for a variety of landscape irrigation applications.

Controller Features

The 3/4" in. Digital Hose End Timer, one of the newest range of hose end timers, offers simplified programming and improved monitoring of battery power with less current, resulting in longer battery life with reliable operation. With higher flow rates at lower inlet pressures and a range of programming features, the B09B delivers a reliable and cost-effective solution for residential use. The timer has four start times per day with durations from 1 minute to 12 hours 59 minutes in an operating flow range of .5 to 6.3 gallons per minute, allowing use in a wide range of applications including drip irrigation or micro-sprinkler systems connected to a garden hose or faucet/spigot. It uses one 9-volt alkaline battery that can last for over a year.

Product Details

Controller Details

  • Preset program of five minutes watering every day
  • Electronic battery monitoring that provides a constant reading of battery strength
  • Five-part battery strength indication: 4, 3, 2, 1 bar and then flashing one bar on close down
  • Low battery auto lockout to ensure that the timer valve will not open unless it can close
  • Low energy use (less than 20 microamps in standby mode) ensures long battery life
  • Easy manual operations using Start and Stop buttons
  • Operates on low water flow of less than 0.5 GPM
  • 3/4" in. FHT inlet with screen and MHT outlet
  • Powered by one 9-volt alkaline battery with a battery life of up to one year
  • Operating pressure 10 PSI to 80 PSI (0.6 5.5 Bar)
  • Flow rate up to 6.3 GPM at 30 PSI (24 L/PM at 2 Bar)
  • Temperature range: 40° F to 125° F (3° C to 50° C)
  • Power source: 9-volt alkaline battery (not included)
  • Power consumption: 20 micro amps in standby mode
  • Materials: body ABS, and inner parts of high-impact plastic
  • Dimensions: 6" in. D X 4" in. W x 6.5" in. H ( 15.2 cm X 10.0 cm X 16.2 cm)
More Information
Brand SW
Max PSI up to 120
Temperature Range up to 130°F
Type Hose Bib Connection Kit
Color Black
Flow Rate up to 18 GPM
Connection FHT x MNPT
Size 3/4 in.
Material Plastic
